System 5 Digital Audio Mixing System Operation Manual
Output
Level (dB)
Output
Level Knob
Knob Switch
turns CR Output
On/Off
Dim Switch
drops the level by
the amount indicated
in CR Output Panel

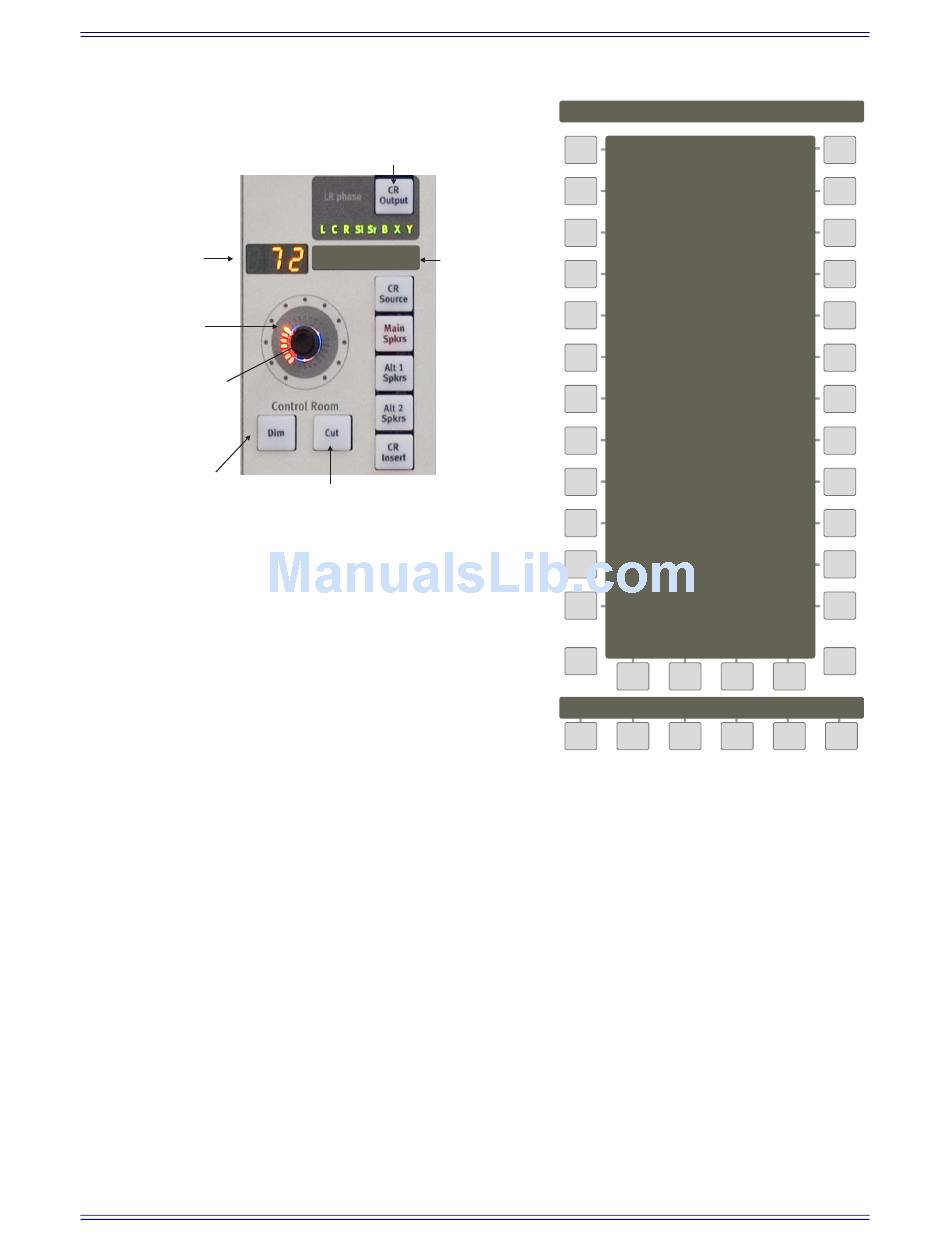

Figure 5-4 CR Output controls and Control Room Output Panel
Dim and Cut
The Dim level can be set in the Control Room Output Panel by pressing the Dim key
on the panel viewer and using the Spin Knob to adjust the level. This is the reduction
in level (dB) that occurs when the Dim switch is active.
The Control Room Monitors may be switched off/on by pressing the output level
knob's center switch or the Cut switch.
Monitors A-D may be switched off/on by pressing the output level knob's center
switch; they are off when their output level knob's center LED is not lit.
Press to display
Control Room
Output Panel
Mix 1
CR Source
Cut Switch turns
CR Output On/Off
65
CM401T Master Section
Control Room Output
Mon Cal
Dim -10
LR Phase
L On
C On
R On
Sl On
Sr On
Bm On
X On
Y On
Main
Panel
Cal -12.2
dBSPL 85
Mono
Stereo
LCRS
5.1
7.1
Info
