Joystick Module

Two joysticks are housed in a full-width panel mounted in a CM403 module.
Activates the joystick
– when off, channel is
not being controlled
Turns joystick
motor on and off
Joystick
Select/Punch key
Wave key is used with
Select/Punch key to set
automation mode, link to
a strip, or lock from layouts
Joystick position matrix
is 19 x 19 LEDs. A
single green LED
indicates the current
position and a diamond
represents the
underlying automation.
15.3.1

Assigning a Channel to a Joystick

Assign a channel to the joystick with the same key strokes used to assign a channel to
a strip (see Map Channels and Control Groups to Strips on page 97).
Channel
Select key
Chan
C 1
1 0 0 %

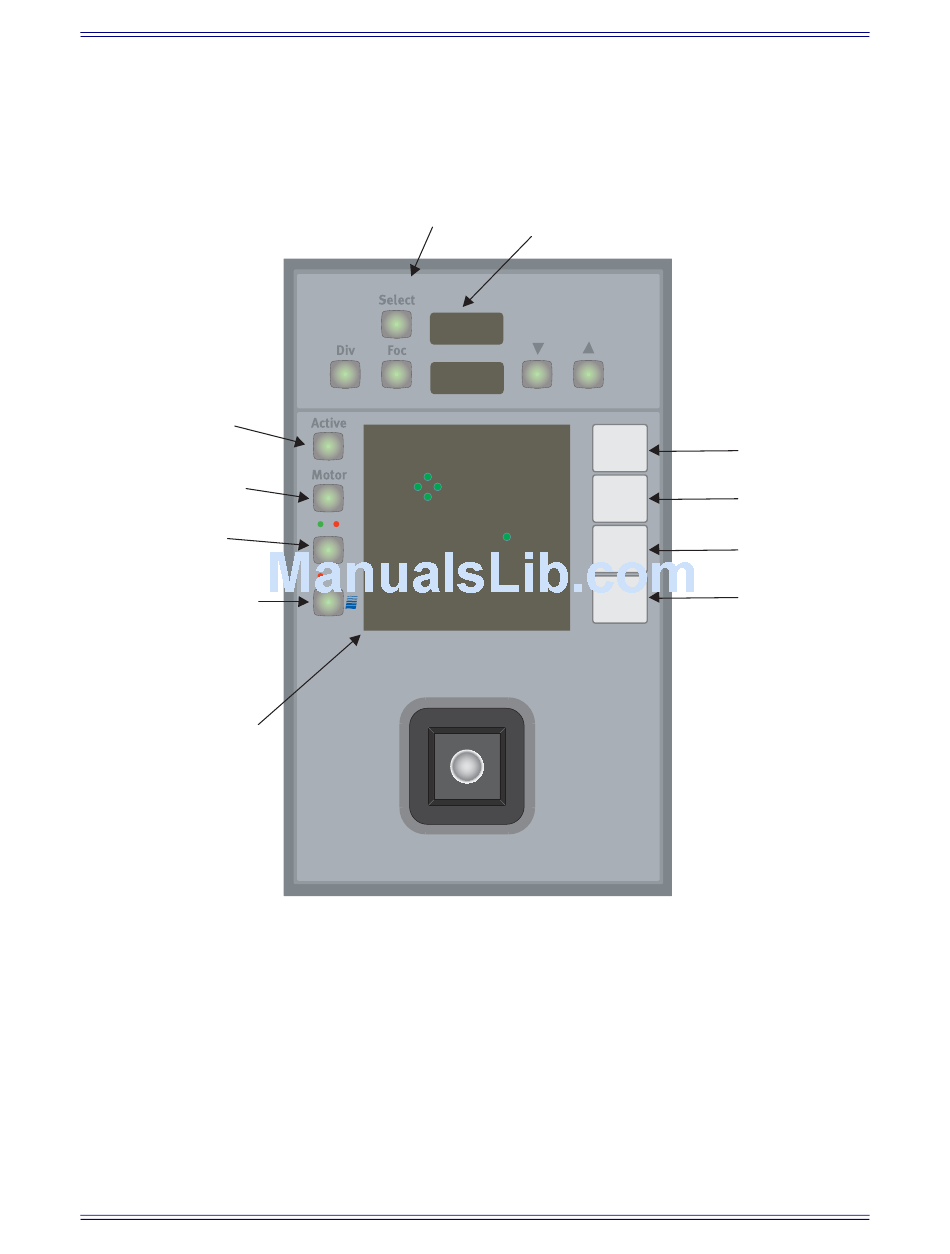

Figure 15-11 Joystick Panel controls
224
CM403 Film/Post Module
Display
Pan
L/R
Snd
F/B
Link
Solo
Pan Engage
Surround Engage
Link Key
Solo Channel
