Equalizers and Filters

Each channel has a four-band, parametric equalizer and two filters. Press the EQ func-
tion switch to display the EQ controls on the knobset. Press the
display the
High band In/Out
High-mid band In/Out
Low-mid band In/Out
Low band In/Out
Filters page (Figure 8-16).
HiQ
HiF
HiG
HmQ
HmF
HmG
LmQ
LmF
LmG
LoF
LoQ
LoG

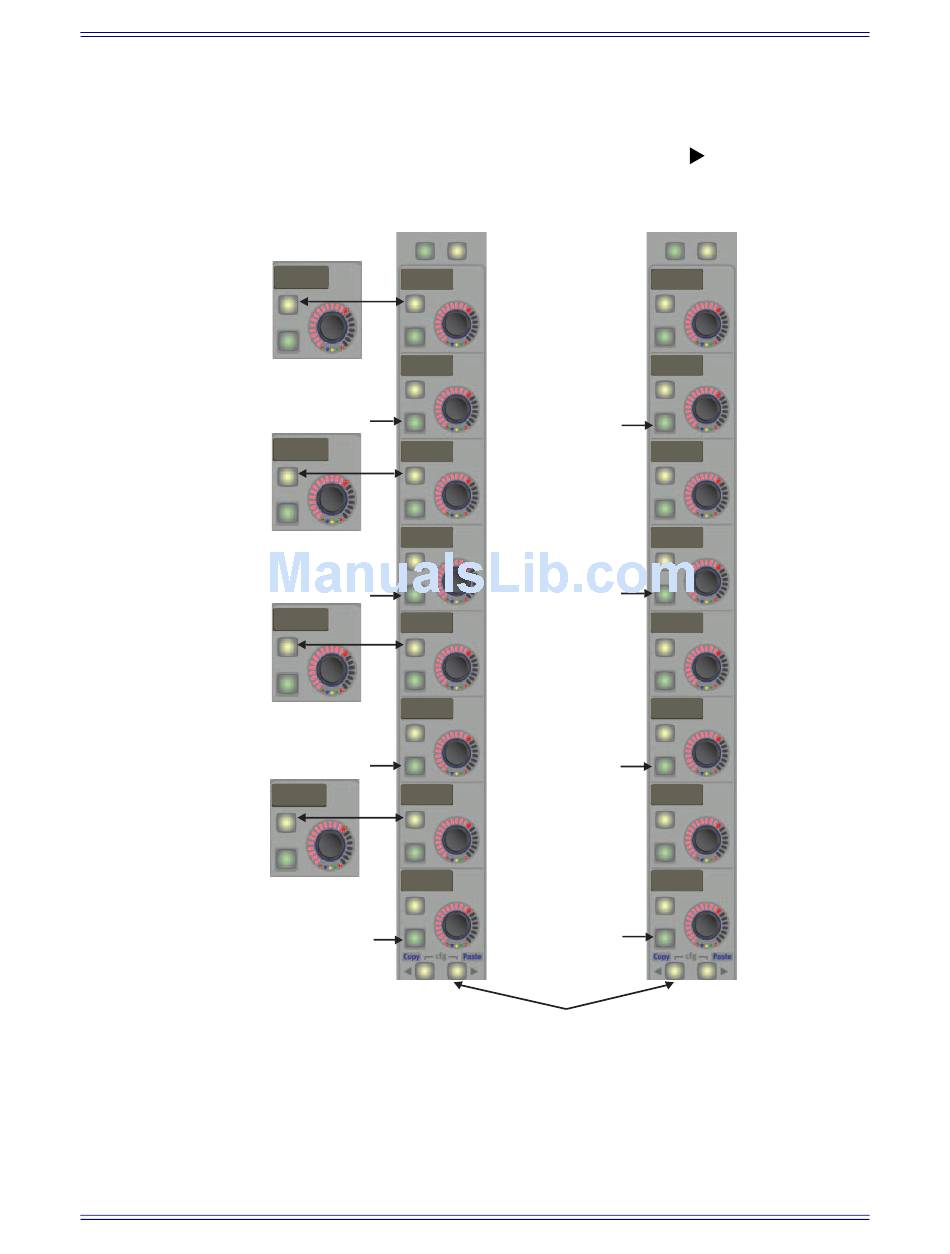

Figure 8-16 EQ and Filters knobsets
Filter 2In/Out
Listen
Filter 1In/Out
Listen
Page keys display
Filters or EQ pages
