System 5 Digital Audio Mixing System Operation Manual
15.2

The Film Panel

Link allows the user
to select which bus
sections/legs are
under the control of
the master.
Ready switch enables
Record On for selected
bus(es). Solo and On
switches for monitor inputs
assigned to selected paddle
The Film Panel is divided into two distinct parts: the traditional PEC/DIR panel on the
left, and an additional utility panel to the right. The right panel duplicates most of the
CM401T's monitoring and setup functions.
Sum switch is reserved for future
Ext Record switch
use. Solo switch lights when a
enables external GPI
monitor matrix solo is active and
to trigger record.
hitting the switch clears all solos.
At the top level the
displays represent the
8 plus master RECORD
section currently assigned
ON/OFF and BUS/PB
to the corresponding
(playback) paddles.
paddles and switches.

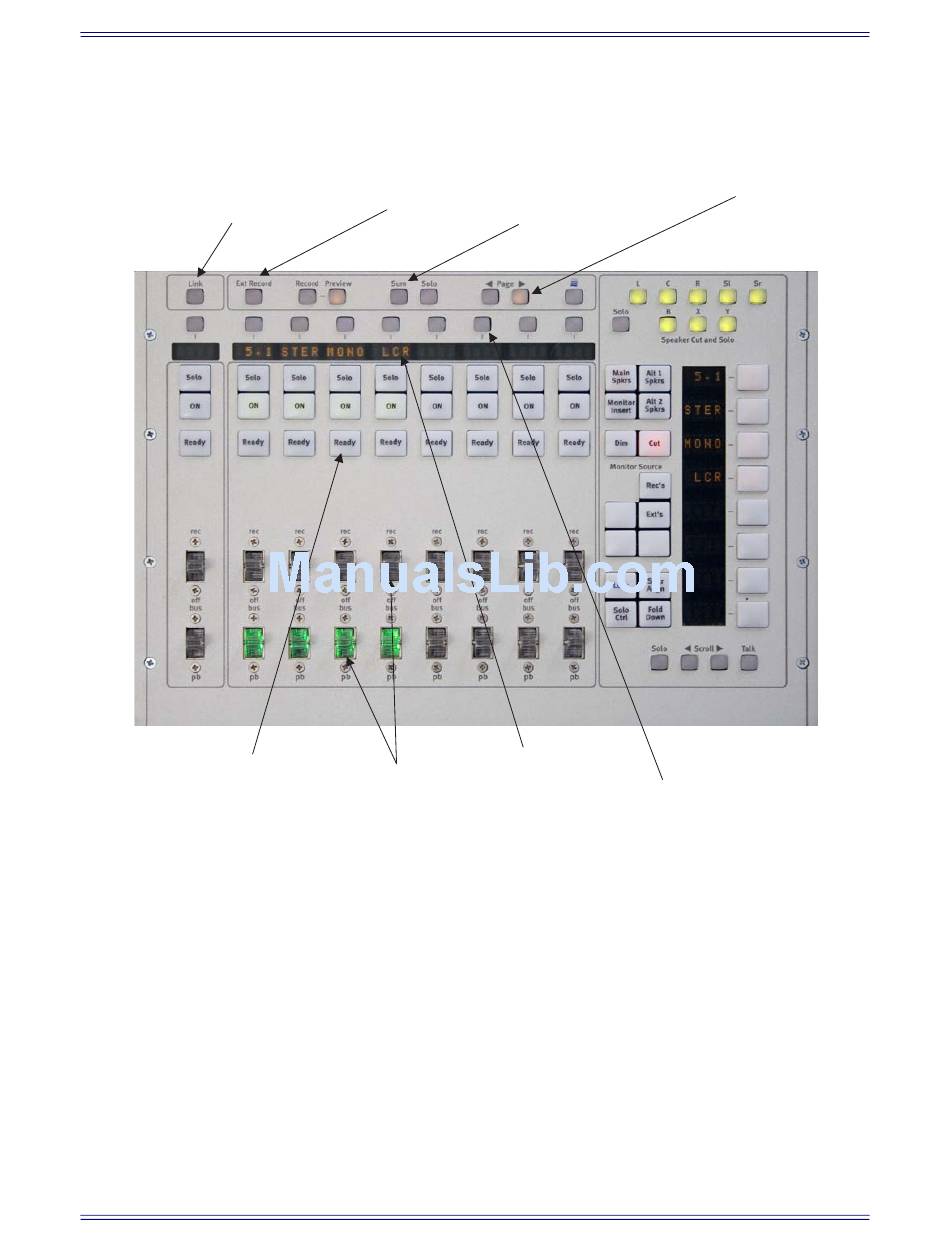

Figure 15-2 Post Panel Interface
215
CM403 Film/Post Module
Allows paging for more
than 8 sections (or busses-
if the section is expanded).
A single section can be
expanded on to the
switches and paddles by
hitting the corresponding
Exp/Sel switch.
