to hear all voices on the bus except their own.
The signal from the channel to the mix minus system can be set pre or post fader using
the Pre key.
There is a gain control just before the Mix Minus Output. This is controlled from the
Mix- knob.
GSL
Pre
Mix Minus
pre/post
Bus
Mix Minus
assign
Mix-
Mix Minus
enable
Page key back to
group bus assign
Mix Minus Processing
Pre
Fader
Post
Level
Processing
Level

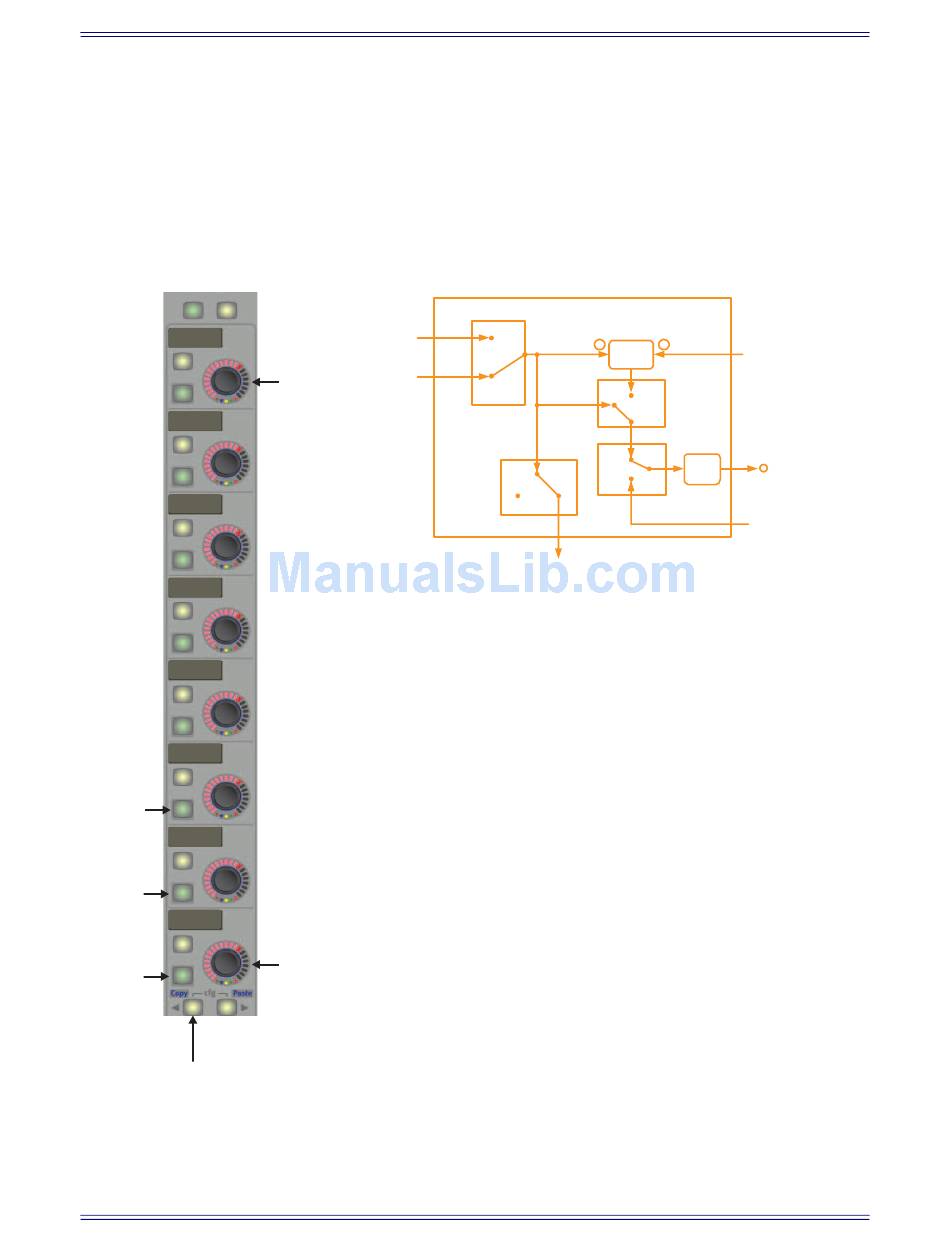

Figure 8-21 Mix Minus Knobset and Signal Flow
131
On
- +
Subtract
Off
Pre
On
Switch
Mix-
Off
Switch
Off
Talk
On
Switch
Off On
Bus Switch
To
Mix Minus
Ref Bus
Channels and Strips
From
Mix Minus
Ref Bus
Mix Minus Output
Gain
From
Talkback
Mic
