System 5 Digital Audio Mixing System Operation Manual

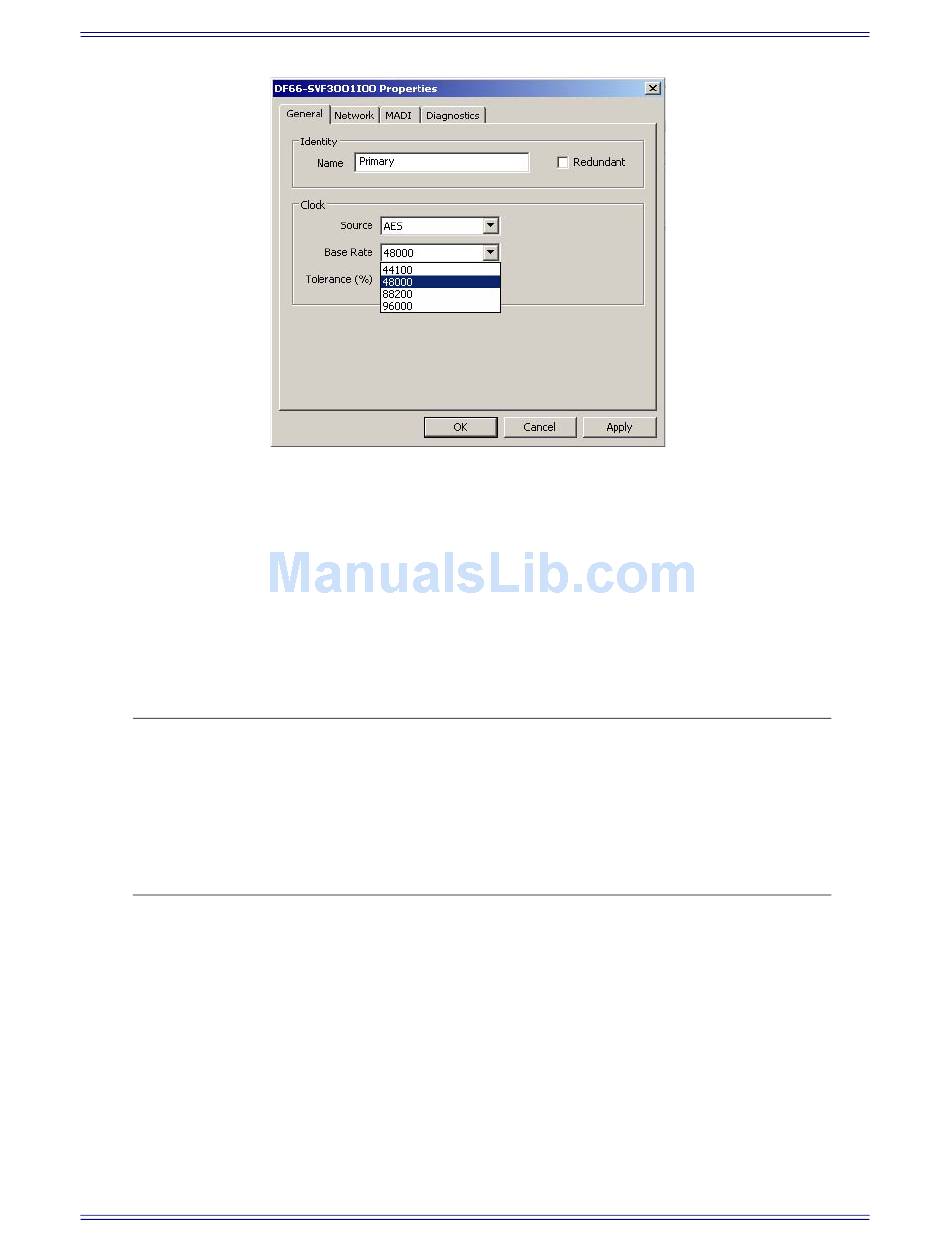

Figure 4-21 Euphonix Control Panel DF66 Properties Base Rate menu
If the system has a backup DF66 core, click on the DF66 ID1-A to high-
light it, then the Properties button to change its sample rate.
5. After applying the DF66(s) sample rate change (you must click the
Apply button to affect the change), close the control panel by clicking
on the OK button. Power off the control surface and DF66(s), and re-
boot.
NOTE: If there is an available Mixer Model that you want to change to, but it is not
displayed in the eMix System Window, you will have to exit eMix and run
the MMPass application (accessible from the Desktop). Within the MMPass
program, you can Enable a Mixer Model so it shows up in the eMix System
Window. You can also Activate a Mixer Model so it becomes the Active
Mixer Model when eMix launches. It is recommended that you select a
Mixer Model that matches your DSP hardware configuration.
Changing the Number of MADI Channels
The DSP Line Cards' MADI ports are normally set to 56 channels from the
factory. If they are to be connected to a 64-channel device, the Line Card(s)
settings can be changed in the Euphonix Control Panel.
1. Access the Euphonix Control Panel (see page 55).
2. Click on the DF66 ID1 to highlight it, then click the Properties button.
Click on the MADI tab (see Figure 4-22).
56
eMix Application
