System 5 Digital Audio Mixing System Operation Manual
Changing the Sample Rate
To change the sample rate, you must first activate a Mixer Model with the desired sam-
ple rate as described in the previous section.
1. Change the sample rate of the studio master digital sync generator.
This must be done before changing the Sync Source on the DF66 Super
Core(s).
2. Click on the Euphonix Wave Logo in the lower left corner of the Emix screen,
and click on the Control Panel button to bring up the Euphonix Control Panel
(see Figure 4-20).
4. Click on the DF66 ID1 to highlight it, then click the Properties button.
From the Base Rate pulldown menu, select the desired sample rate, then
click the Apply button (see figure 4-21). Click the Okay button to return
the previous window.

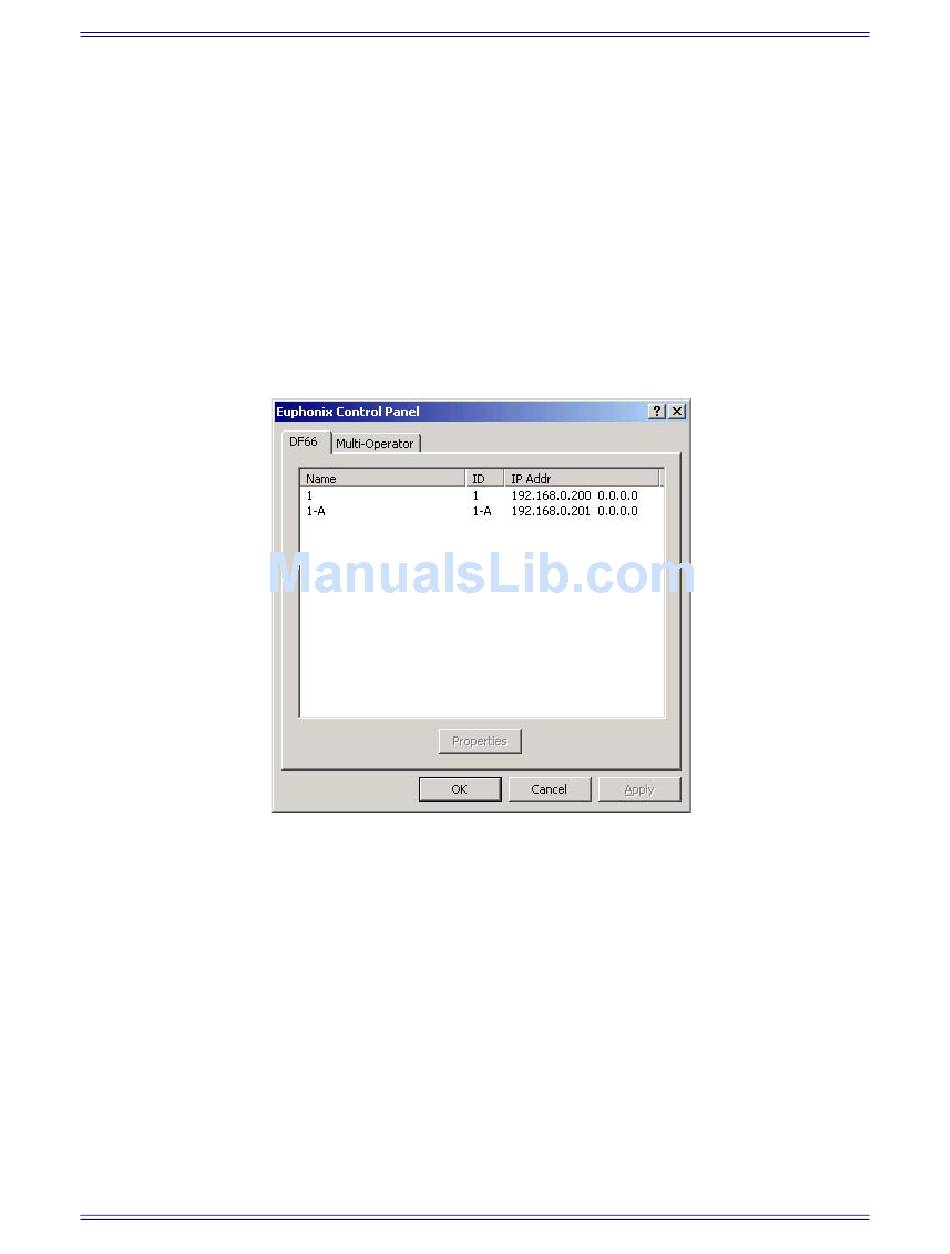

Figure 4-20 Euphonix Control Panel
55
eMix Application
