System 5 Digital Audio Mixing System Operation Manual
13.5

Event List

An event is composed of an input description and type, a logical operator, and an
output description and type. Add an event to the list by clicking the <click to add
event> field at the bottom of the Description column. Click in the Description field
to type a description. Select the logical operator from the Logic dropdown menu.
13.6

Input

The input area has two sections: the top contains a list of inputs for all events in the
Event List, the lower shows the properties of the selected input.
Create a new input by clicking the <click to add input> field at the bottom of the list.
The Add Input Event dialog opens to select the input type:

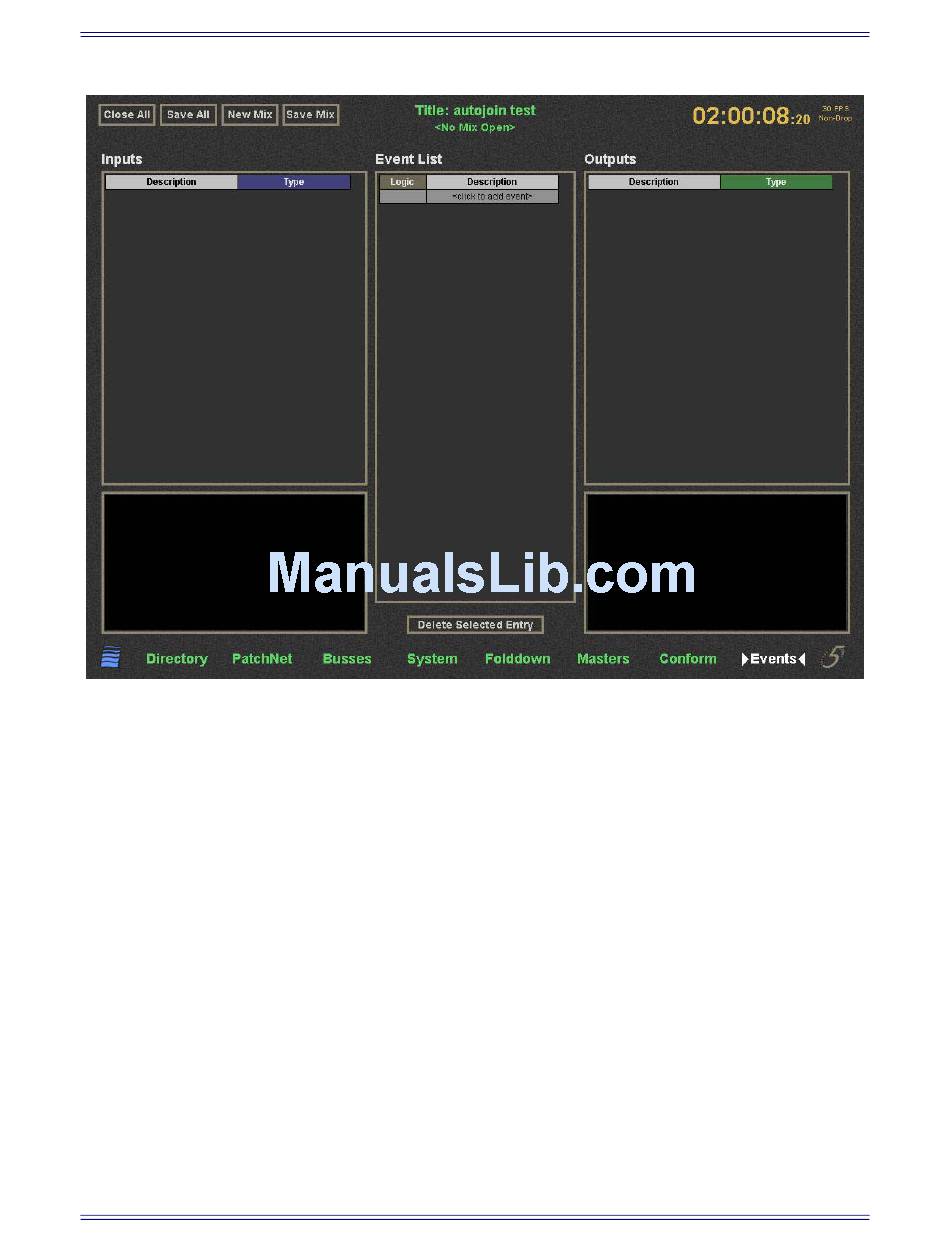

Figure 13-1 Event Configuration Window
167
GPI/O Event System
