Select/Punch Keys
There are several Select/Punch keys on a Strip that operate on different levels:
•
At the top of the strip (see Figure 8-8), the Knobset Select/Punch key selects
or punches all knobset parameters for the currently selected function, including
knobs and switches.
•
The upper switch to the left of the knob is the Select/Punch key for the On/Off
switch below it. When the transport is moving, it is the punch-in/out key for the
On/Off switch. This key is also used to select the On/Off switch for inclusion
in a Snapshot and pages to a second knob function, if it exists.
•
Each knob has a center switch that punches the knob in/out during automation. It
also selects that knob for inclusion in a Snapshot. When not in automation,
touching the knob switch shows the value in the display instead of the function
name.
8.2.4

Touch-Sensitive Fader and Controls

Each Strip has a touch-sensitive fader that moves automatically in response to recorded
automation. When the fader is touched, the Fader touch-sensor LED lights and automat-
ically punches it into automation (the Select/Punch key also punches the fader in/out).
The Fader Automation Status LEDs show the automation mode status for the fader.
Channel Select key
All Funcs key
Channel On
Automation status LEDs
Channel On
Select/Punch key
Fader Automation
Status LEDs
Fader Select/Punch key
Strip Lock LED
Wave key

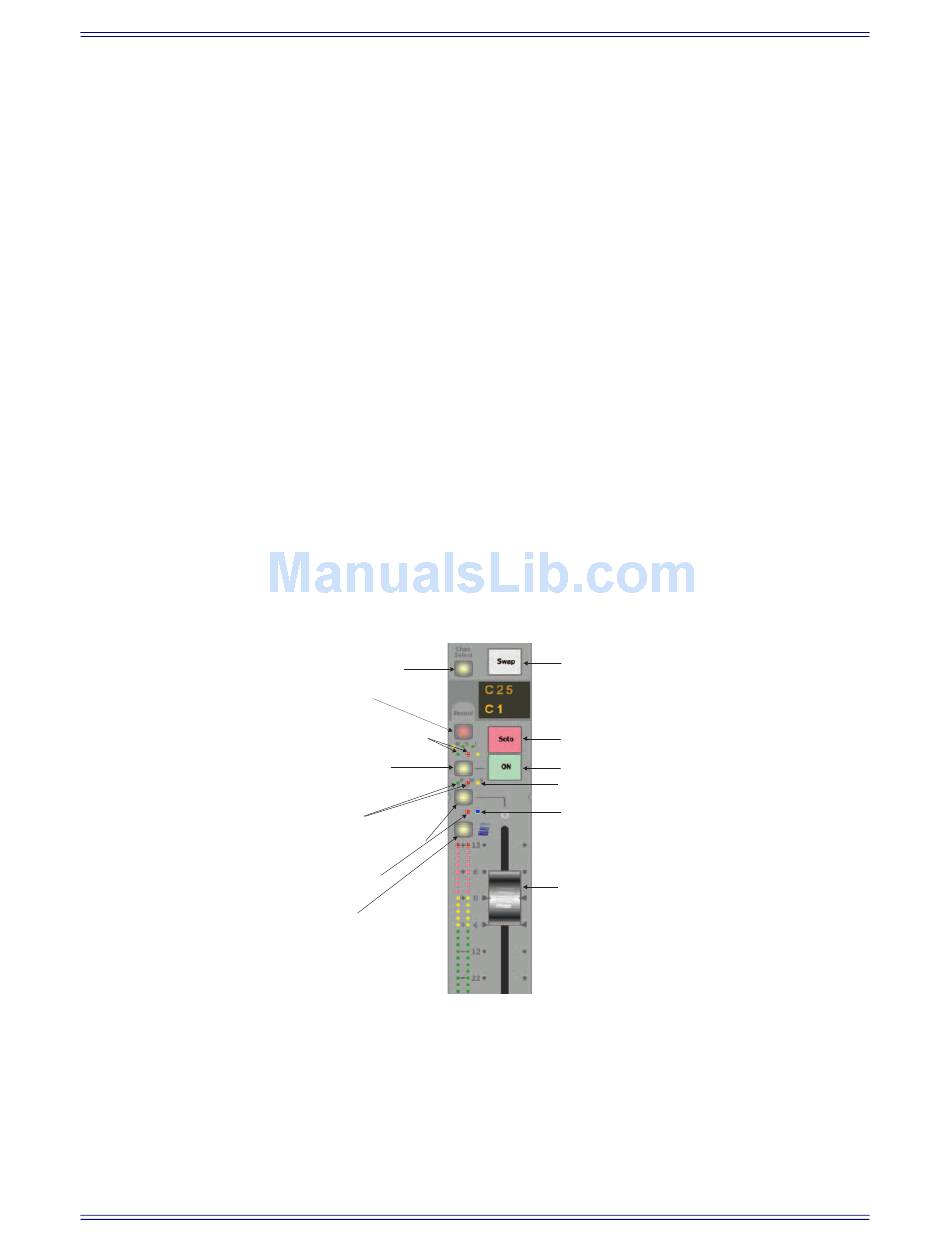

Figure 8-9 Fader Controls
108
Channels and Strips
Swap channel key
Solo key
Channel On key
Auto-glide LED
Fader touch-
sensor LED
Touch-sensitive
fader
