System 5 Digital Audio Mixing System Operation Manual
4.3

Busses

Click the Busses tab at the bottom of the eMix window to display the Busses window.
At the bottom left of the window, click either the Group or Mix buttons to configure
the Group or Mix busses, respectively (Figure 4-16 shows the Mix busses; Figure 4-17
shows Group busses). Group and Mix busses differ in two ways:
•
There are 16 Mix sections but only one set of Group busses.
•
Mix sections have associated recorder playback returns.

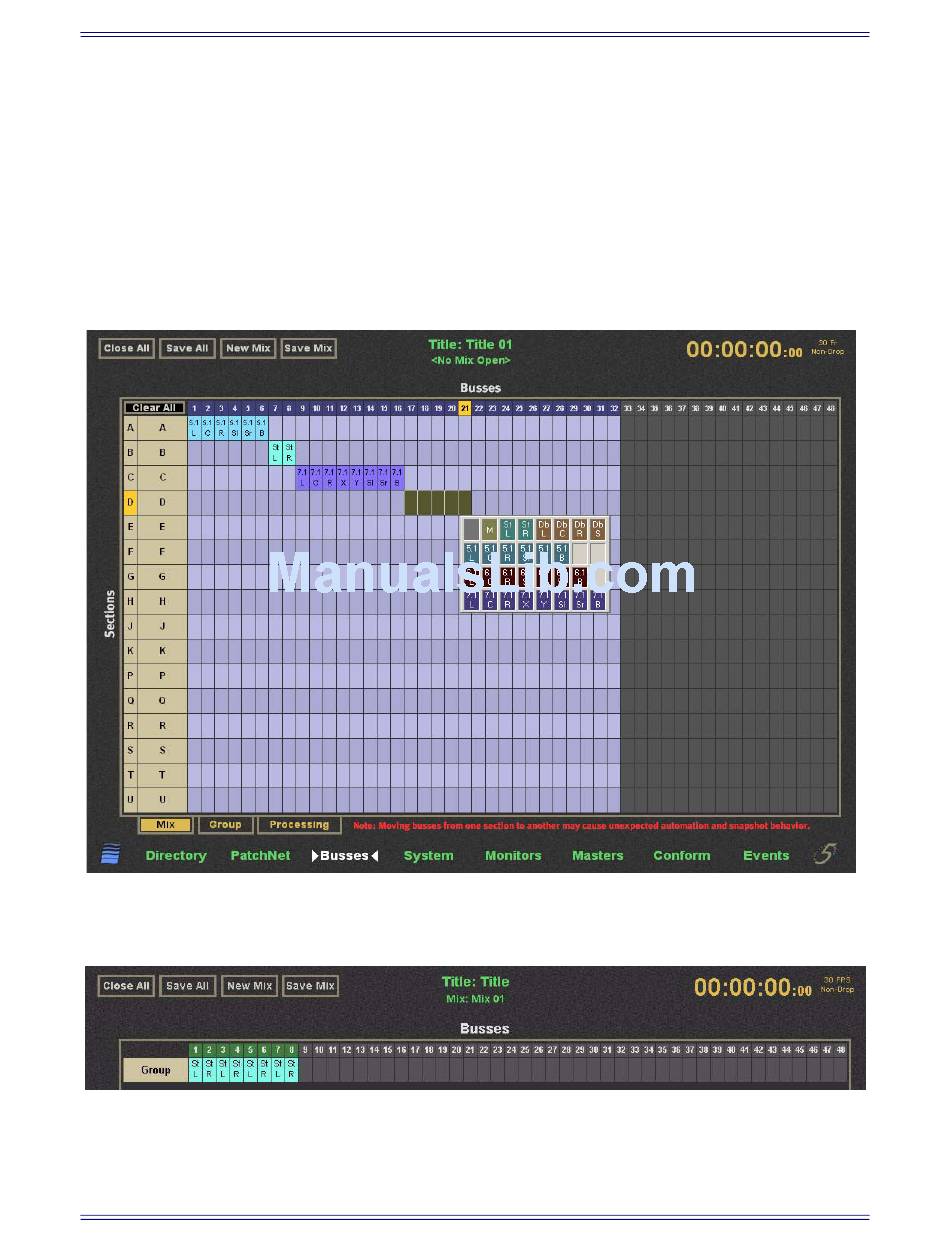

Figure 4-16 Mix Bus Window with law palette
Figure 4-17 Group Bus Window
51
eMix Application
