System 5 Digital Audio Mixing System Operation Manual
3. Select Mic1-1–Mic1-12 from the Mic column by clicking and dragging
through the cells.
These entries are highlighted in green in Figure 4-11. These sources appear in
the Sources column of the Selected: window below. If there were more than
24 sources, additional tabs would appear to the right of the 1–24 tab.
Select the Destinations
There can be:
•
one source to one destination;
•
an equal number of sources to destinations;
•
one source to multiple destinations.
Multiple sources cannot be routed to one destination.

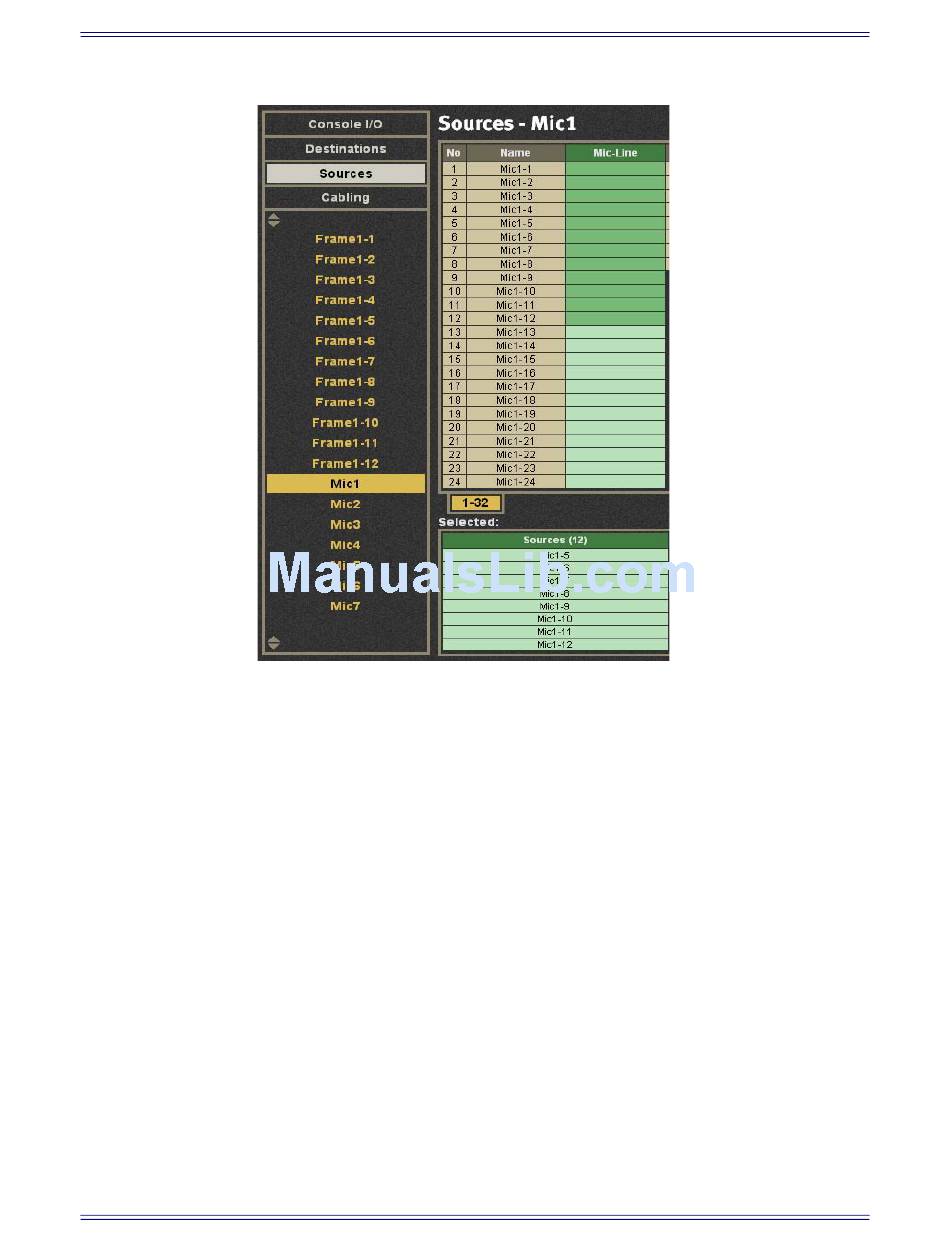

Figure 4-11 Sources window
46
eMix Application
