2-14 Removal and Replacement Procedures

IDE 24X CD-ROM Drive

To remove the IDE 24X CD-ROM drive:
1. Perform the preparation procedures. See page 2-2.
2. Open the front bezel.
3. Remove the left side access panel. See page 2-9.
4. Remove the two T-15 screws and washers from the front of the drive.
5. Disconnect the CD-ROM signal cable.
6. Slide the CD-ROM drive out the front of the chassis.
7. Disconnect the power cable.

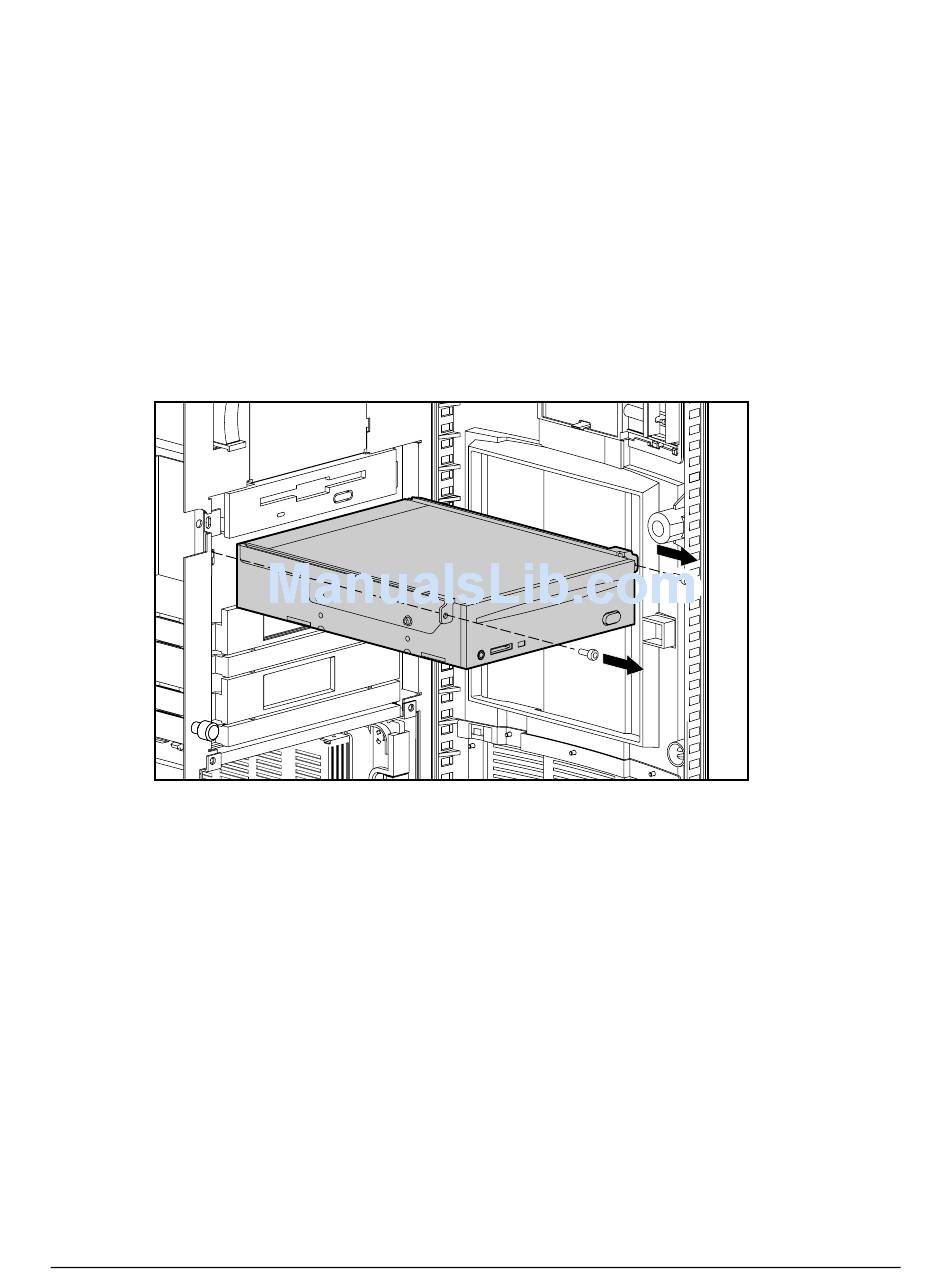

Figure 2-9. Removing the CD-ROM drive
Reverse steps 1 through 7 to replace the IDE 24X CD-ROM drive.
