Note 1 For the popup window, it will pop up only when the event is confirmed.
2 For the popup window for the event triggering, it can be closed by the <Close window> for the Function
Key or the triggering function <Write Data: No>.

3-6-24 Note Book

Note Book component can modify or display the data in the specified word register, which is
analyzed through the standard ASCII character table. The input data is saved to a consecutive register
with the "Read Address" as the first address. Low-byte character codes are displayed on the left, while
high-byte character codes are displayed on the right. It supports the display of the multi-line text content
and page turning, and can be used to make the operations such as Copy, Cut and Paste etc. for the text
contents in the selected area.
Process of adding one Note Book component
1

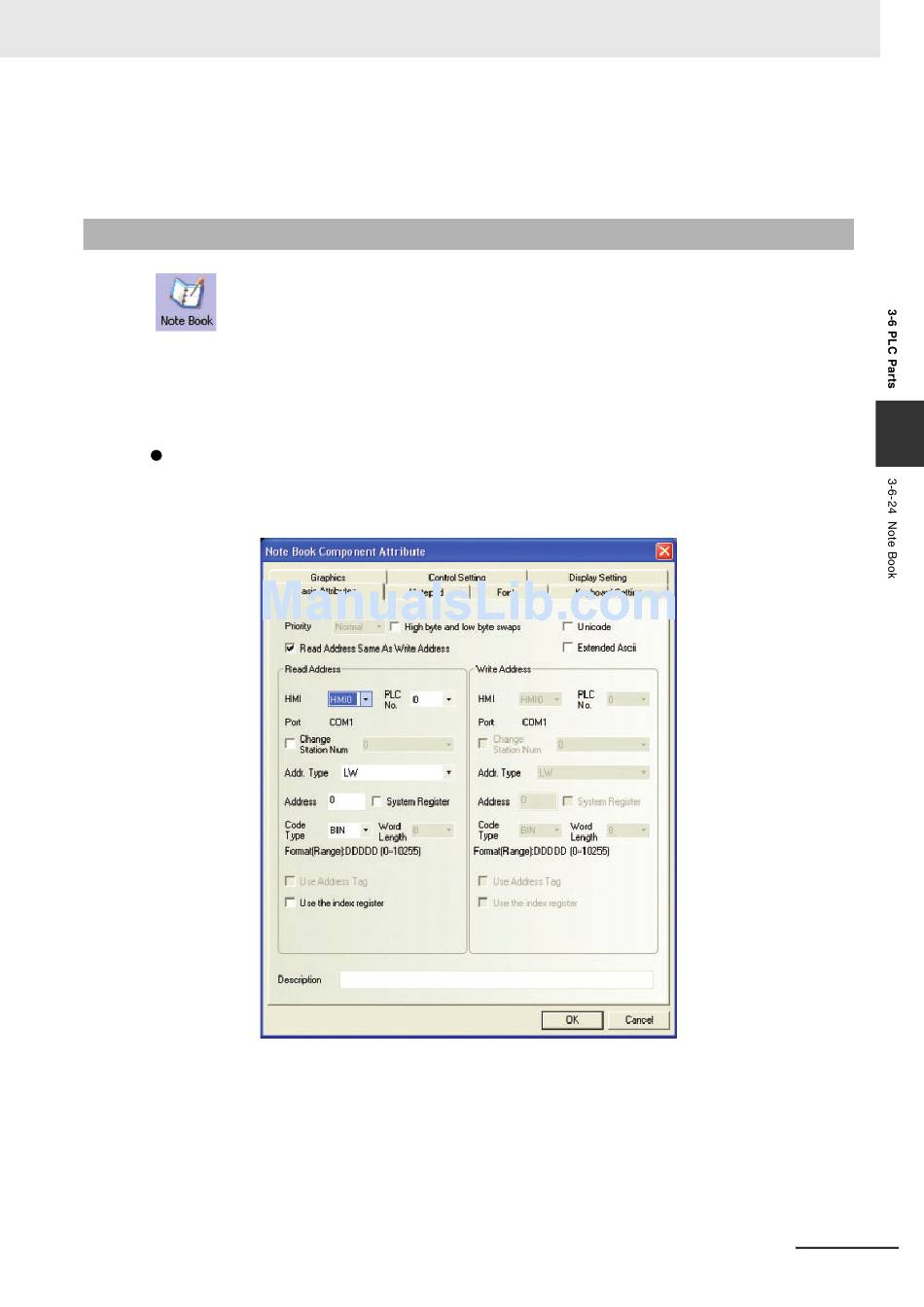

Press the Note Book component icon, drag it to the window, then the [Basic Attributes] dialog
box of the Note Book component will pop up.
