5-7-2

Peripherals and Cable connection

A VCR, a Black & White Video Printer and a Color Printer may be installed onboard the scanner. These
devices are connected to the External I/O (Rear Panel) or Front Panel in the case of B/W Printer.
5-7-2-1

B/W Printer Cable Connection (Analog and Digital)

Connect the Power cable, mini plug cable, and the BNC-BNC cable between the B/W Video Printer and
the console as shown in on page 5-28 .
Front Panel of JUPITER
100~120V 500VA Max
5-28
7
Front Panel of JUPITER
100~120V 500VA Max
Composite B/W B/W Printer
M INI PLUG CABLE
POWER CABLE
Analog Cable Connection
Composite B/W B/W Printer
Digital (USB) Cable Connection

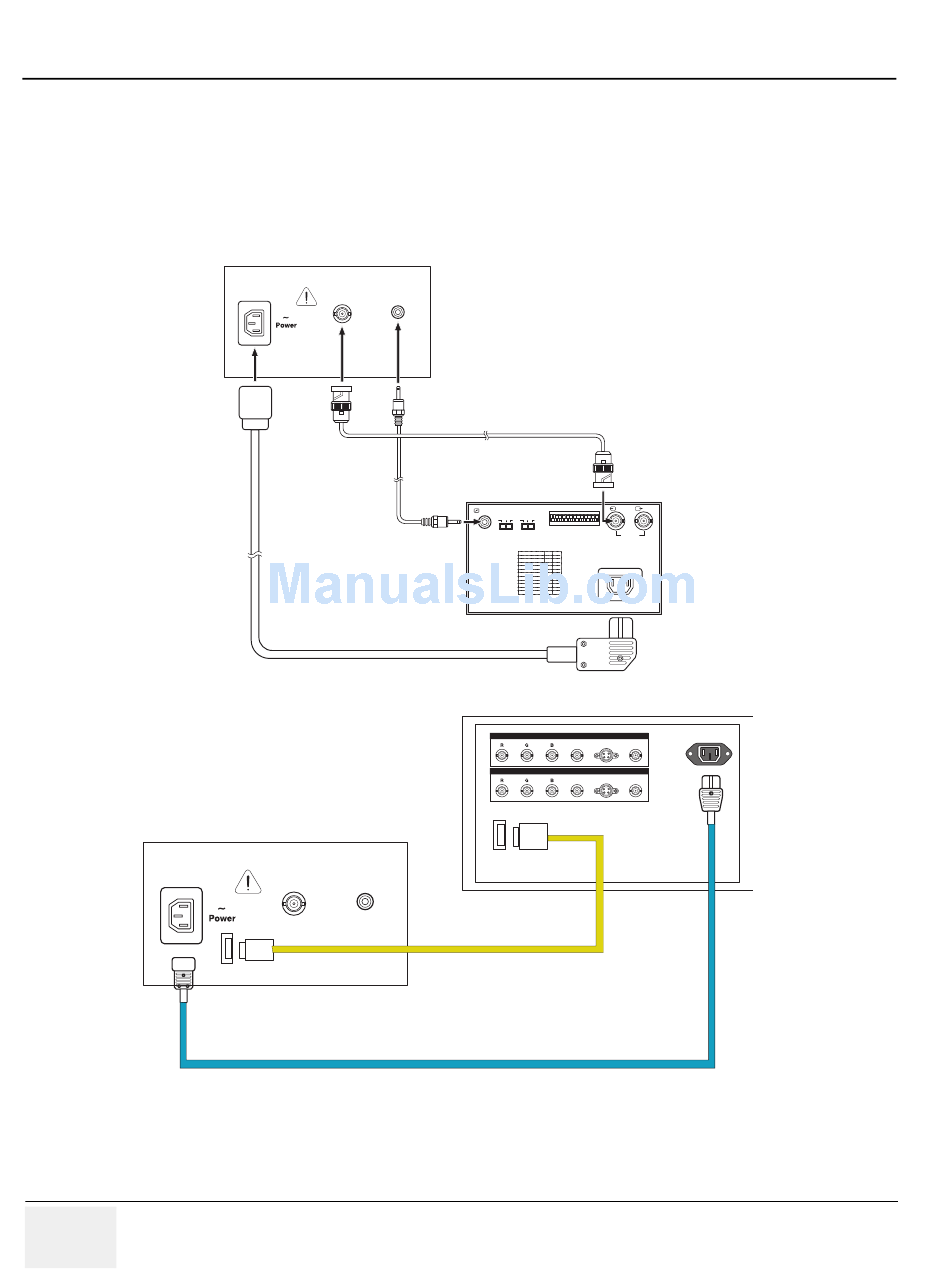

Figure 5-22 Cable Connection - Analog Connection Method
Section 5-7 - External I/O (Rear Panel)
BNC- BNC CABLE
Rear Panel of B/W Printer
PAPER DIP SW IN
REM OTE GAMMA
TYPE OFF
I II III I II IV
ON
VEDEO
DIP SW FUNCTION TABLE
~A C IN
SYNC S-VIDEO
SYNC S-VIDEO
USB Cable
Pow er Cable
LOGIQ™5 PRO S
ERVICE
OUT
VIDEO
VIDEO
