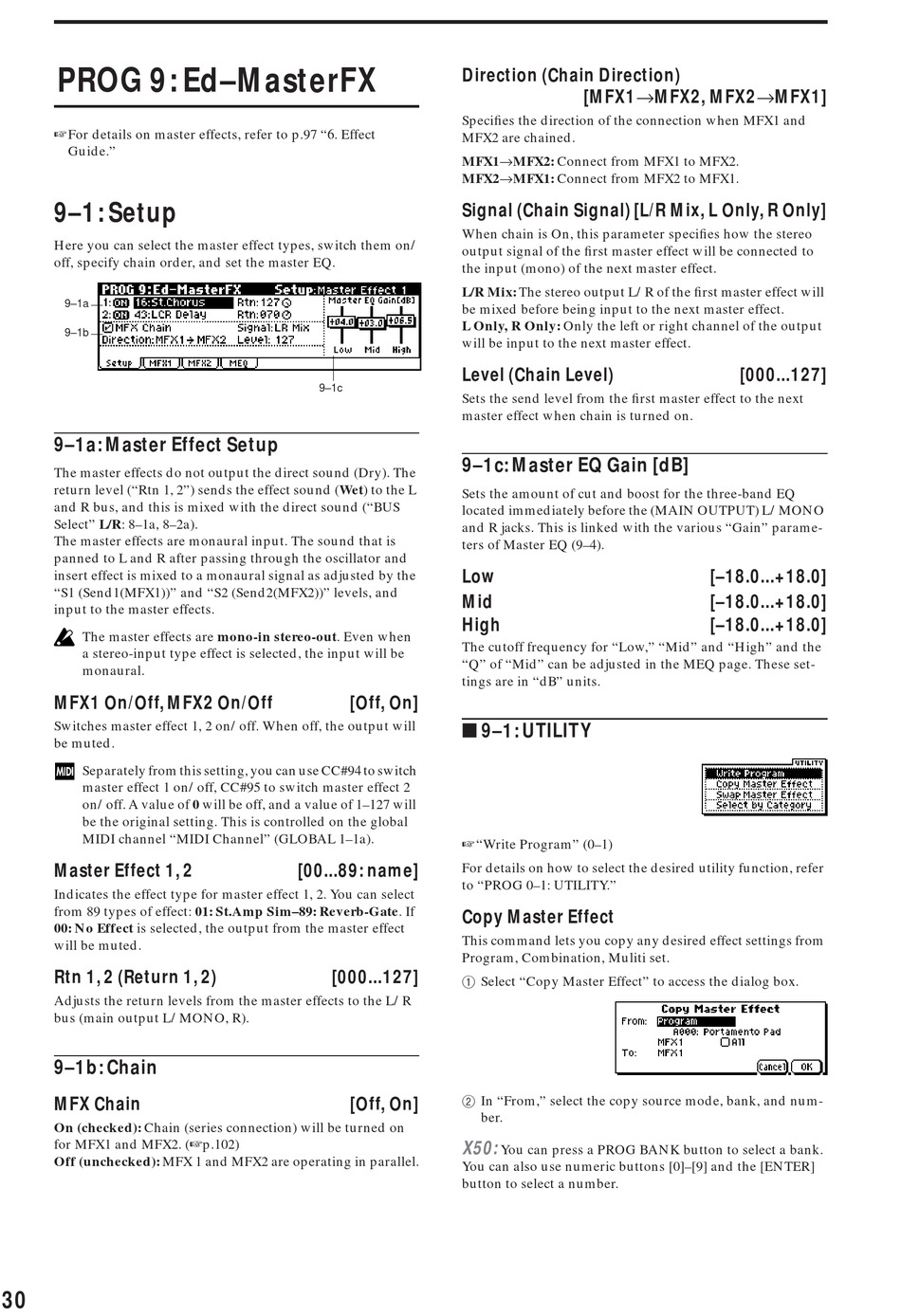

PROG 9: Ed–MasterFX
☞For details on master effects, refer to p.97 "6. Effect
Guide."
9–1: Setup
Here you can select the master effect types, switch them on/
off, specify chain order, and set the master EQ.
9–1a
9–1b
9–1a: Master Effect Setup
The master effects do not output the direct sound (Dry). The
return level ("Rtn 1, 2") sends the effect sound (Wet) to the L
and R bus, and this is mixed with the direct sound ("BUS
Select" L/R: 8–1a, 8–2a).
The master effects are monaural input. The sound that is
panned to L and R after passing through the oscillator and
insert effect is mixed to a monaural signal as adjusted by the
"S1 (Send1(MFX1))" and "S2 (Send2(MFX2))" levels, and
input to the master effects.
The master effects are mono-in stereo-out. Even when
a stereo-input type effect is selected, the input will be
monaural.
MFX1 On/Off, MFX2 On/Off
Switches master effect 1, 2 on/off. When off, the output will
be muted.
Separately from this setting, you can use CC#94 to switch
master effect 1 on/off, CC#95 to switch master effect 2
on/off. A value of 0 will be off, and a value of 1–127 will
be the original setting. This is controlled on the global
MIDI channel "MIDI Channel" (GLOBAL 1–1a).
Master Effect 1, 2
Indicates the effect type for master effect 1, 2. You can select
from 89 types of effect: 01: St.Amp Sim–89: Reverb-Gate. If
00: No Effect is selected, the output from the master effect
will be muted.
Rtn 1, 2 (Return 1, 2)
Adjusts the return levels from the master effects to the L/R
bus (main output L/MONO, R).
9–1b: Chain
MFX Chain
On (checked): Chain (series connection) will be turned on
for MFX1 and MFX2. (☞p.102)
Off (unchecked): MFX 1 and MFX2 are operating in parallel.
30
Direction (Chain Direction)
Specifies the direction of the connection when MFX1 and
MFX2 are chained.
MFX1→MFX2: Connect from MFX1 to MFX2.
MFX2→MFX1: Connect from MFX2 to MFX1.
Signal (Chain Signal) [L/R Mix, L Only, R Only]
When chain is On, this parameter specifies how the stereo
output signal of the first master effect will be connected to
the input (mono) of the next master effect.
L/R Mix: The stereo output L/R of the first master effect will
be mixed before being input to the next master effect.
L Only, R Only: Only the left or right channel of the output
will be input to the next master effect.
Level (Chain Level)
9–1c
Sets the send level from the first master effect to the next
master effect when chain is turned on.
9–1c: Master EQ Gain [dB]
Sets the amount of cut and boost for the three-band EQ
located immediately before the (MAIN OUTPUT) L/MONO
and R jacks. This is linked with the various "Gain" parame-
ters of Master EQ (9–4).
Low
Mid
High
The cutoff frequency for "Low," "Mid" and "High" and the
"Q" of "Mid" can be adjusted in the MEQ page. These set-
tings are in "dB" units.
[Off, On]
■ 9–1: UTILITY
☞"Write Program" (0–1)
For details on how to select the desired utility function, refer
[00...89: name]
to "PROG 0–1: UTILITY."
Copy Master Effect
This command lets you copy any desired effect settings from
Program, Combination, Muliti set.
[000...127]
1 Select "Copy Master Effect" to access the dialog box.
2 In "From," select the copy source mode, bank, and num-
[Off, On]
X50:
You can also use numeric buttons [0]–[9] and the [ENTER]
button to select a number.
[MFX1→MFX2, MFX2→MFX1]
ber.
You can press a PROG BANK button to select a bank.
[000...127]
[–18.0...+18.0]
[–18.0...+18.0]
[–18.0...+18.0]
