Arctic Cat WILDCAT/X Service Manual page 69

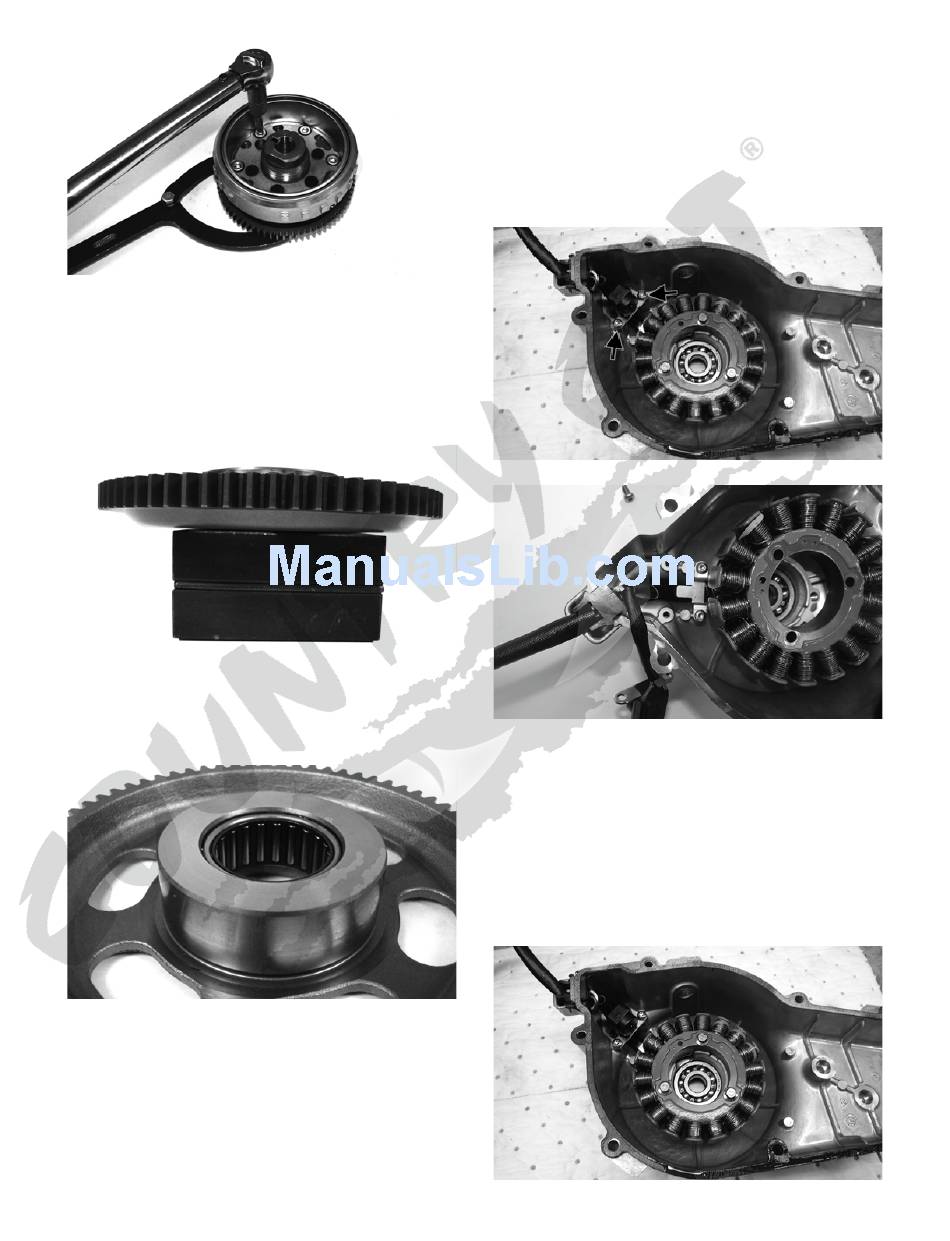

REPLACING STARTER GEAR
BEARING
1. Support the starter clutch gear in a press making sure
to support the hub around the entire circumference;
then using a suitable bearing driver, press the bearing
from the gear.
2. Thoroughly clean the gear hub; then apply a drop of
green Loctite #620 to the bearing outer race and press
into the gear hub until even with the lower chamfer
radius.
INSPECTING STATOR COIL/
MAGNETO COVER ASSEMBLY
1. Inspect the stator coil for burned or discolored wiring,
broken or missing hold-down clips, or loose cap
screws.
2. Inspect the bearings in the magneto housing for dis-
coloration, roughness when rotated, and secure fit in
bearing bores.
REPLACING STATOR COIL/
CRANKSHAFT POSITION SENSOR
1. Remove the three cap screws securing the stator coil,
two cap screws securing the crankshaft position sen-
sor, and two cap screws from the harness hold-down.
2. Lift the rubber grommet out of the housing; then
remove the stator coil/crankshaft position sensor.
Account for and note the position of the harness hold-
down under the crankshaft position sensor.
FI578
FI583
3. Install the new stator coil assembly and secure with
three cap screws using a drop of red Loctite #271 on
each. If installing the existing magneto cover, tighten
the cap screws to 11 ft-lb. If installing a new mag-
neto cover, tighten the cap screws to 13 ft-lb.
4. Place the stator wire harness hold-down into position;
then install the crankshaft position sensor and secure
with two cap screws. Tighten securely.
5. Install the upper cable hold-down and secure with two
cap screws. Tighten securely.
FI580
H2-017A
H2-027
H2-017
67
