5. Plug the micro USB end of the cable into the receiver USB port.
Keep the USB port cover on the receiver open whenever the USB
cable is not attached. The receiver shield works with the port open
so you can access the USB port easily as needed.

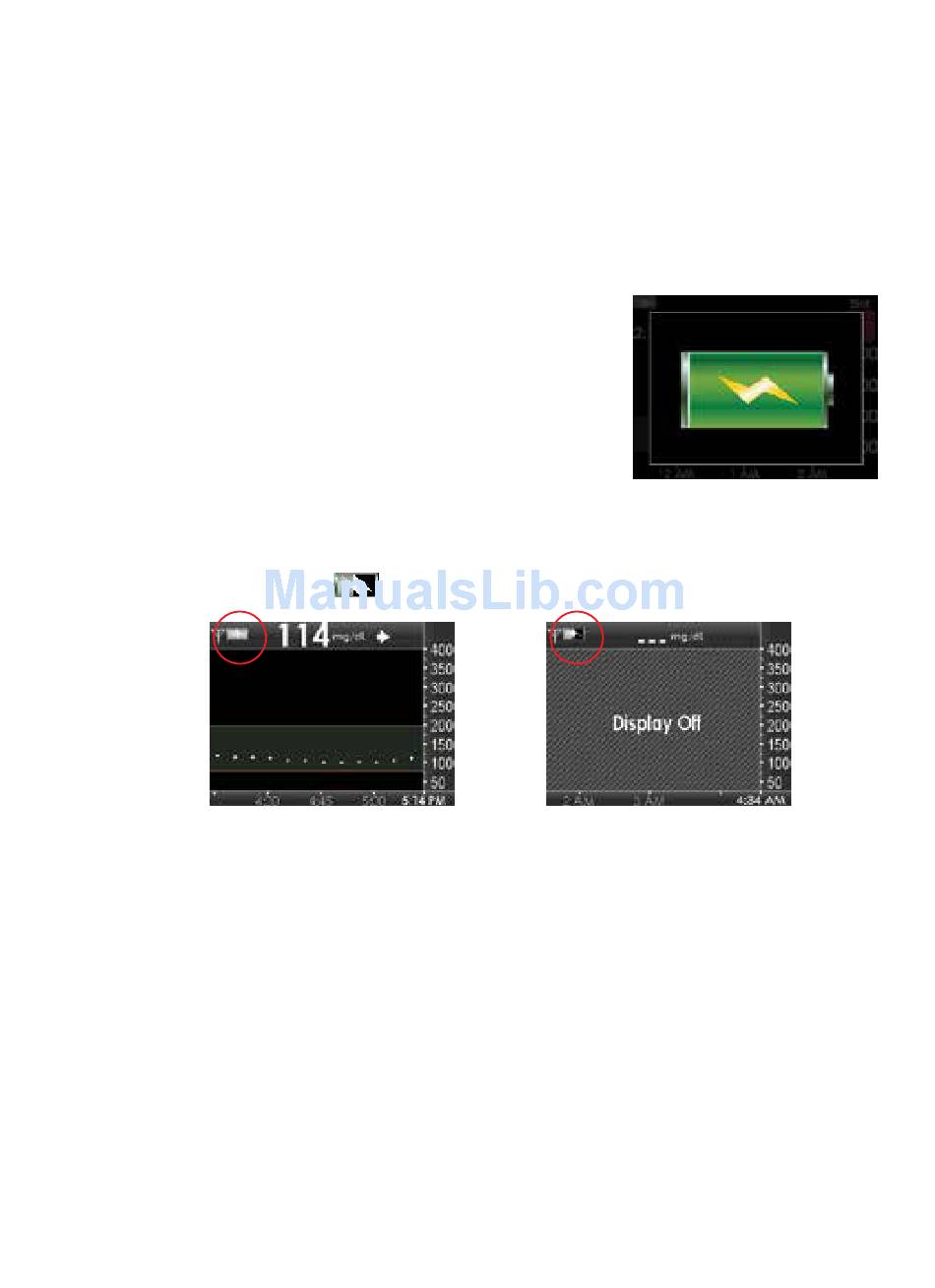

6. The battery charging screen will show on
the receiver.
Battery charging screen
7. After a few seconds the trend graph will show with the battery
charging symbol ( ) in the upper left corner.
Battery charging symbol in Battery charging symbol in
upper left corner of trend upper left corner of trend
graph in real-time mode graph in blinded mode
4.1.2 CHARGING THE RECEIVER BATTERY
FROM A WINDOWS COMPATIBLE COMPUTER
You must install the Dexcom STUDIO software to charge the
receiver from a computer. Please see the Dexcom STUDIO
Installation Card for driver installation instructions. This charging
option should be used by the healthcare professional only.
1. Carefully peel back the square seal that is over the USB port.
Dexcom G4 PLATINUM Professional System User's Guide | 45
