Real-Time Receiver Mode:
Battery
Antenna
High glucose
alert setting
Glucose
target
range
Low glucose
alert setting

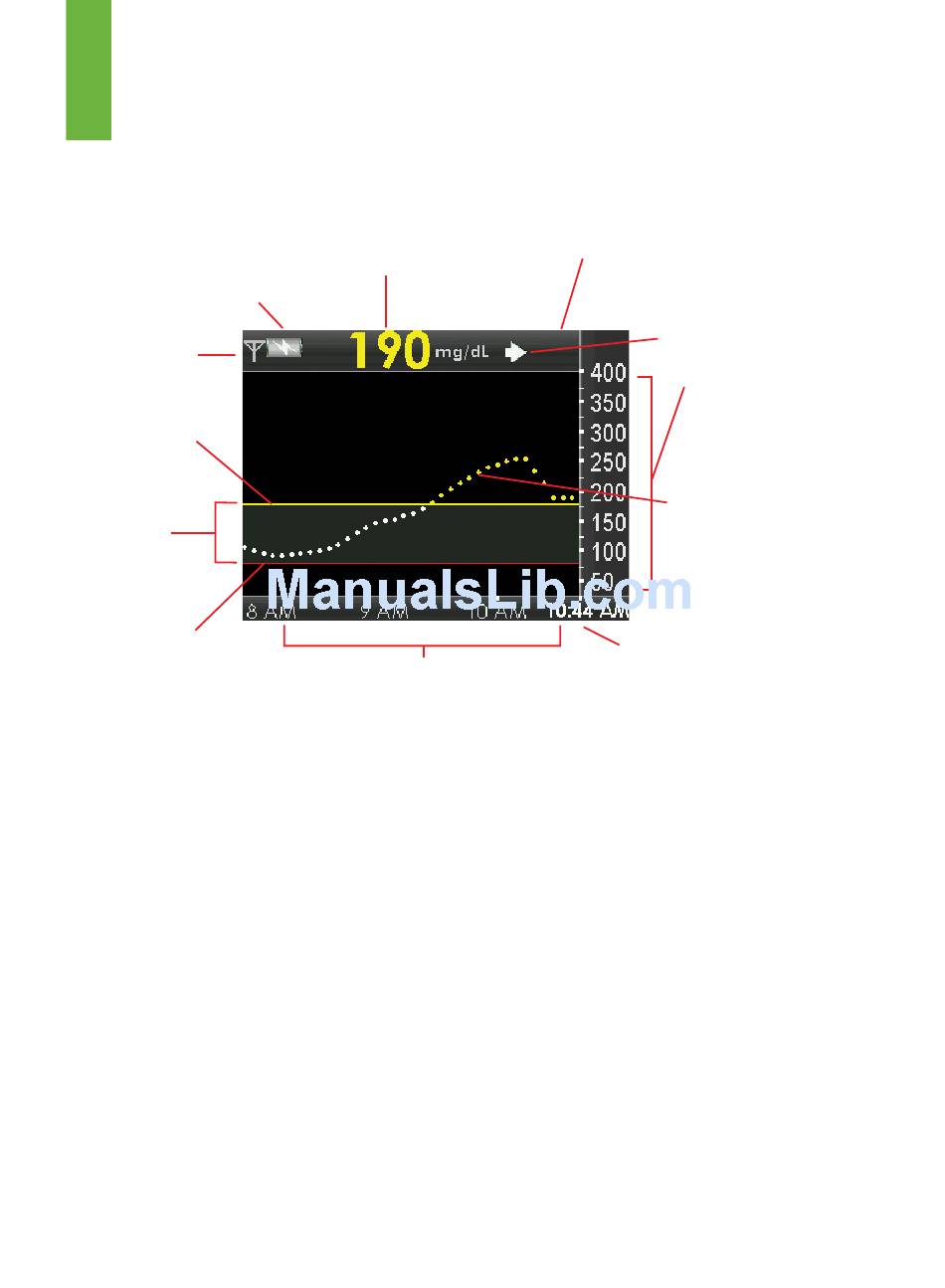

EXAMPLE: 3-Hour Trend Graph Screen
When used in real-time mode, the trend graph screen on the
receiver shows the sensor glucose readings, trend graph, direction
18 | Dexcom G4 PLATINUM Professional Continuous Glucose Monitoring System
Most recent 5-minute
sensor glucose reading
Trend graph hours
and rate of change arrow.
Status area
Trend arrow
Glucose
values
Plot of most
recent sensor
glucose
readings
Current time
