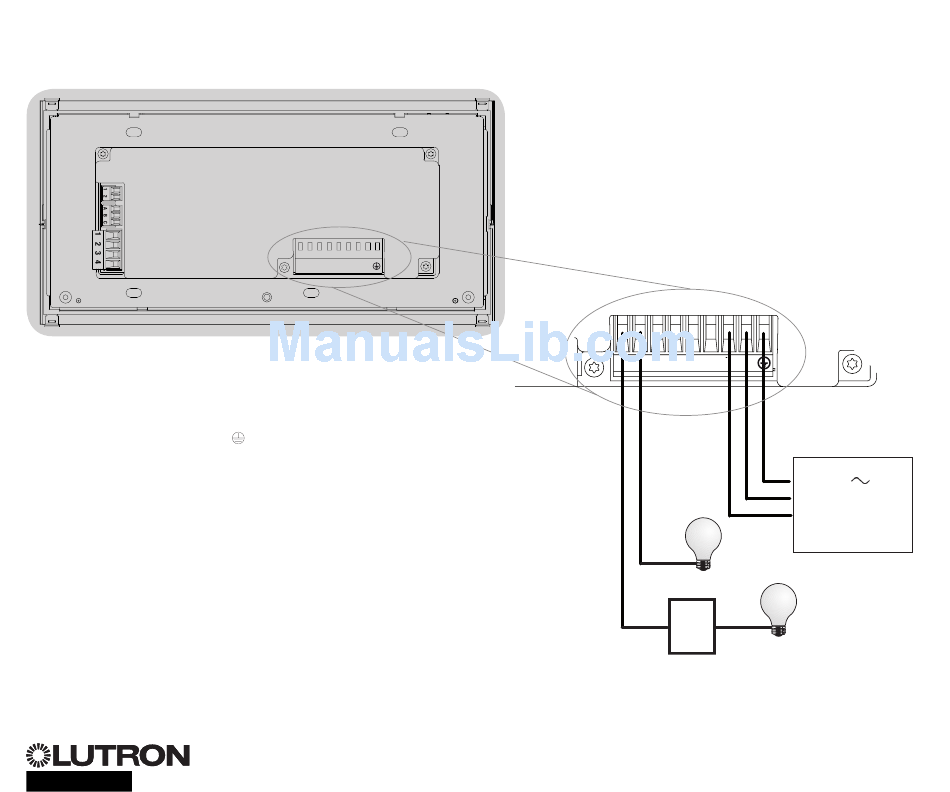

Wiring the GRAFIK Eye
Overview of Line Voltage/Mains Wiring
®
QS Control Unit:
®
1 2 3 4 5 6 L N
Line Voltage/Mains
Cables and Load Wiring
Terminal labels:
L: Hot/Live
N: Neutral
: Ground
1-6: Dimmed/Switched
line voltage outputs
4.0 mm
each
2
terminal
For additional information, see the complete installation and operation guide at www.lutron.com/qs
1 2 3 4 5 6 L N
GRAFIK Eye
QS Control Unit Quick Installation and Operation Guide 3
®
230 V
Distribution
Panel
Incandescent load
Load controlled
by power module
or interface
Power module or
interface
