General Functionality

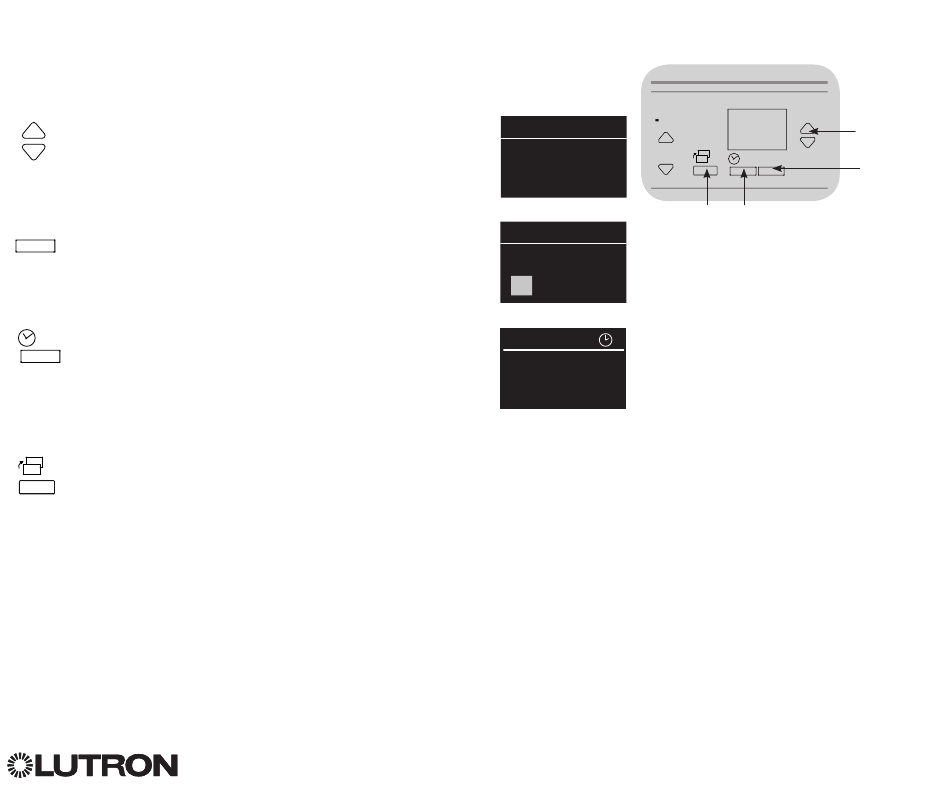

The info screen turns off 30 seconds after the last button press or
completion of the last scene change. See example screens below.
The Master buttons activate the info screen. These buttons
temporarily raise or lower all dimmable lights (except those
programmed as unaffected in the current scene). Adjustments
are temporary and do not affect scene programming.
Note: Master buttons affect all zones.
The "OK" button activates the info screen (when off), which then
OK
shows the current scene and its fade time. In "Save Always"
mode, it allows fade time adjustment. In "Save by OK" mode,
pressing a second time allows zone adjustment; pressing a
third time allows fade adjustment.
The Timeclock button activates the info screen and displays the
OK
current time and the next event scheduled to occur. Pressing
a second time displays the time, date, and afterhours status.
Pressing a third time displays location and sunrise/sunset times.
Pressing a fourth time displays the language selection screen.
Pressing once more returns to the first screen.
The Page button is on 16-zone units only. Pressing the Page button will toggle the unit
9-16
between page 1 (zones 1 through 8) and page 2 (zones 9 through 16). Two LEDs above
1-8
OK
each zone LED bar indicate the unit's current page. Upon switching pages, the LED bars
for all 8 zones of that page will show their level for the current scene.
®
1 9 2 10 3 11 4 12 5 13
Scene 1
Master raise
Master lower
Scene 1
Adjust fade
3
seconds
11:23
AM
Next: 5:00 PM
Scene 1
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 12
6 14 7 15 8 16
9-16
1-8
Page Timeclock
button (back) button
Fri
Master buttons
OK
"OK" button
