28

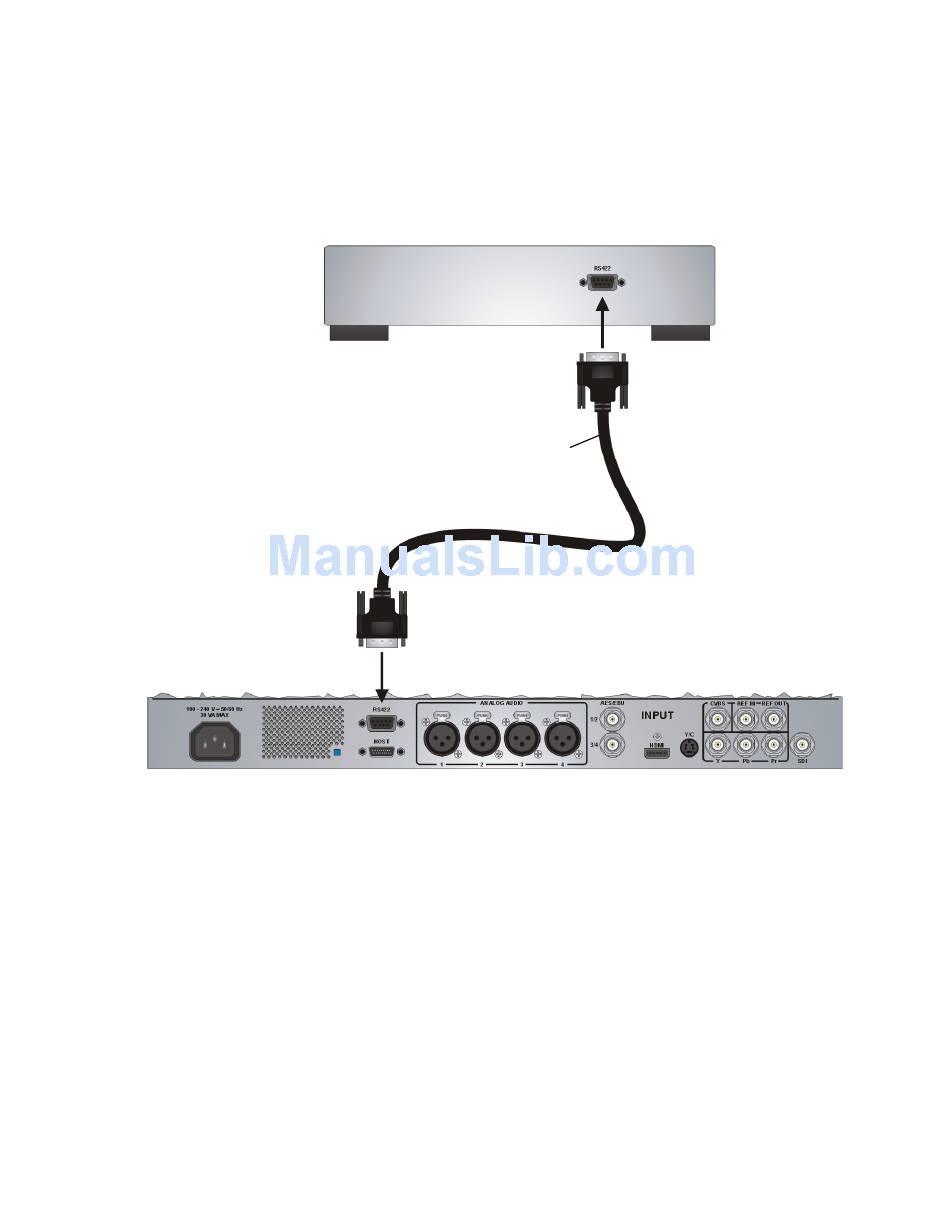

MXO2 Rack RS-422 serial connection
The Matrox MXO2 Rack RS-422 serial connector allows a video editing
application, such as Adobe Premiere Pro, to control a device that uses the RS-422
SMPTE time code protocol, such as a VTR or digital disk recorder, to ensure
frame-accurate capture and export to tape.
RS-422 device
Chapter 4, Connecting External Devices to Matrox MXO2 Rack
RS-422 serial cable
MXO2 Rack
(partial view)
