BMW K75 Repair Manual page 71

15 14 13
Y
~-

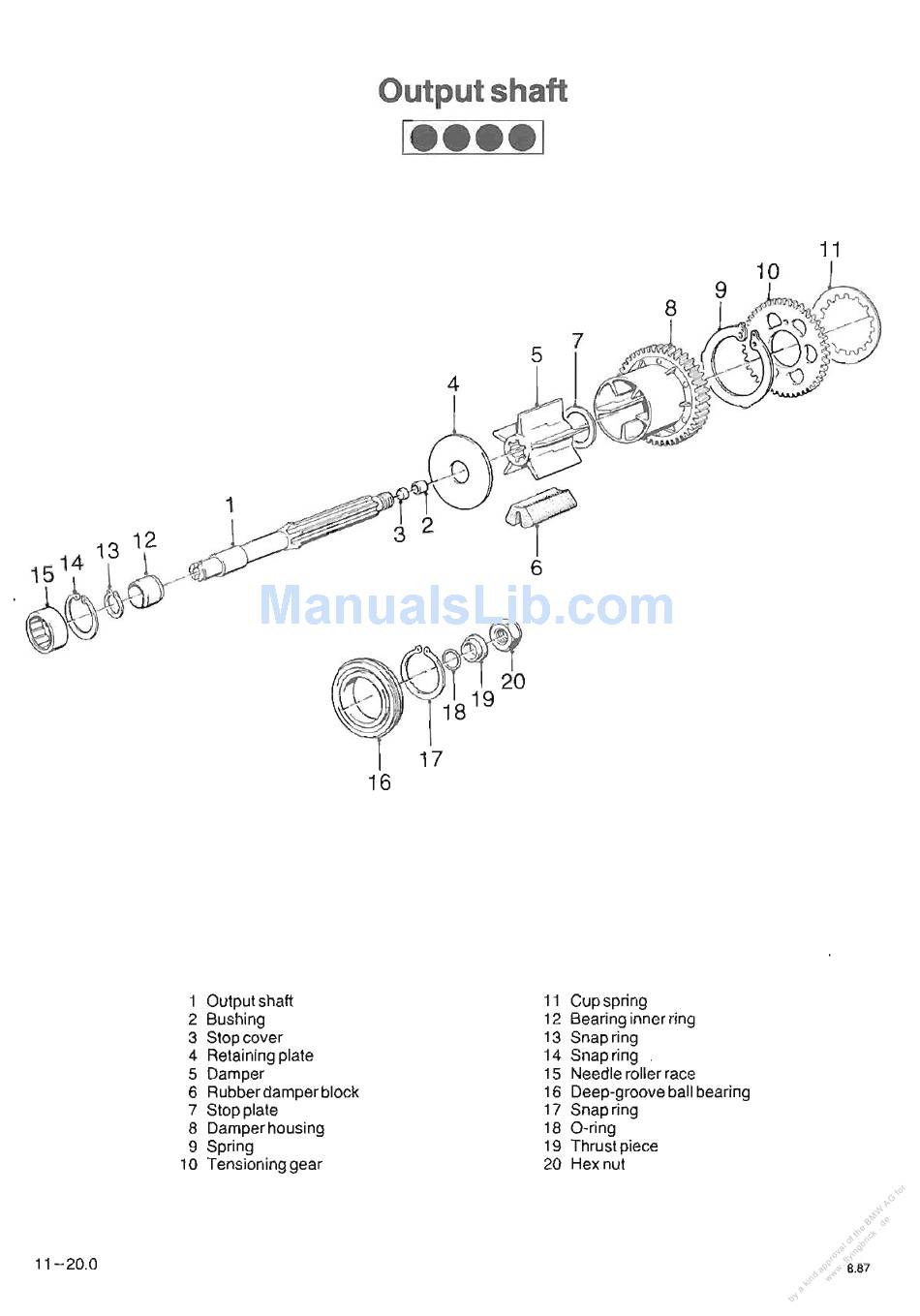

1 Output shaft
2 Bushing
3 Stopcover
4 Retaining plate
5 Damper
6 Rubberdamperblock
7 Stopplate
8 Damperhousing
9 Spring
10 Tensioning gear
11 - 20.0
Output shaft
16
1 • • • • 1
2
17
8
7
~
~~(
19
20
18
6
11 Cup spring
12 Bearing innerring
13 Snapring
14 Snapring .
15 Needle roller race
16 Deep-groove ball bearing
17 Snapring
18 O-ring
19 Thrust piece
20 Hex nut
11
8.87
