Bem '.
~ t
"
-----:-.
--
249
00020
00-16.0

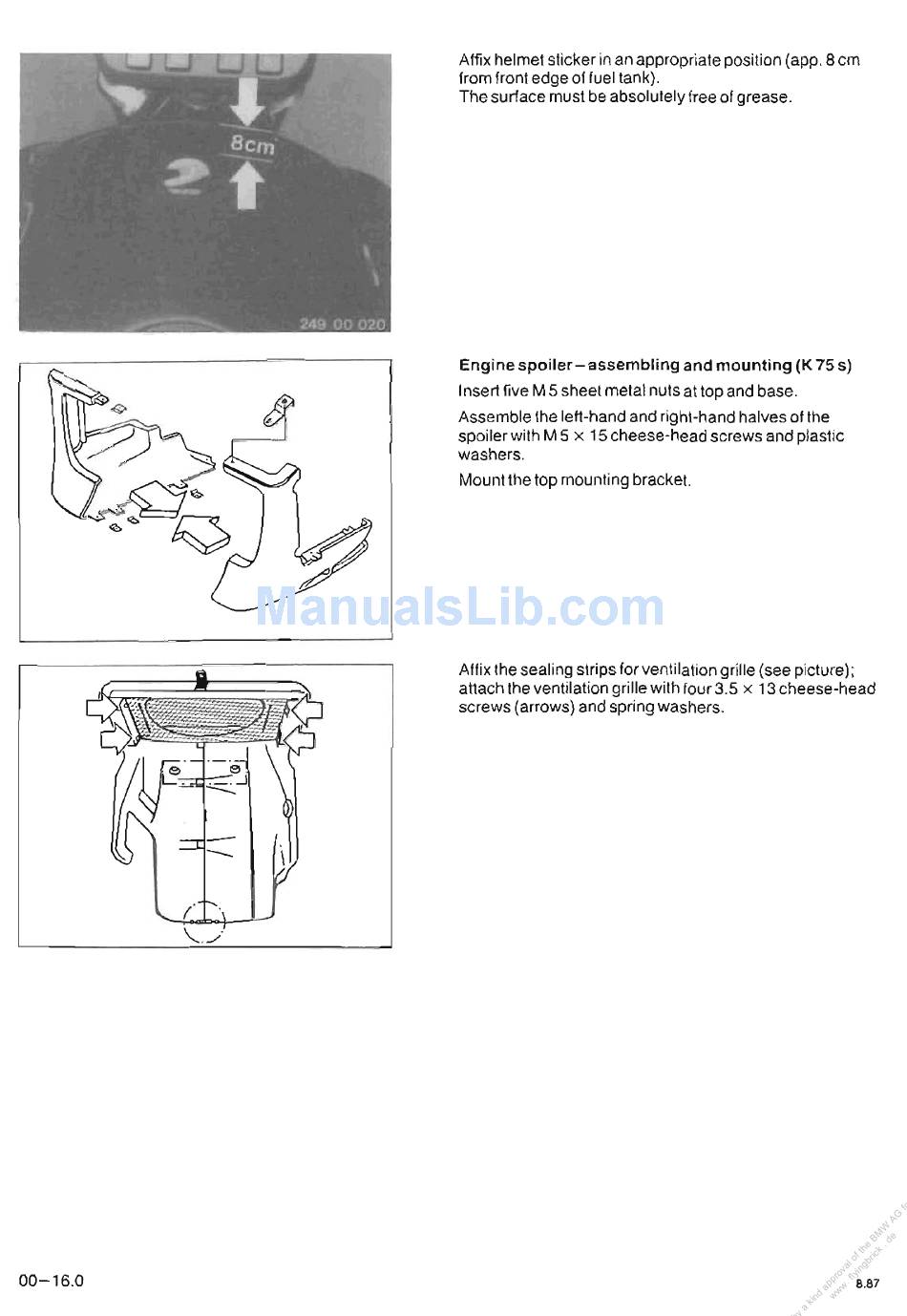

AHix heimet sticker in an appropriate position (app . 8 cm
lrom Iront edge offuel tank) .
The surface must be absolutely Iree 01 grease.
Engine spoiler- assembling and mounting (K 75 s)
Insert live M 5 sheet metal nuts attop and base.
Assemble the lett-hand and right-hand halves 01 the
spoiler with M 5 x 15 cheese-head screws and plastic
washers.
Mount the top mounting bracket.
AHix the sealing strips lorventilation grille (see picture);
attach the ventilation grille with lour 3.5 x 13 cheese-head
screws (arrows) and spring washers.
8.87
