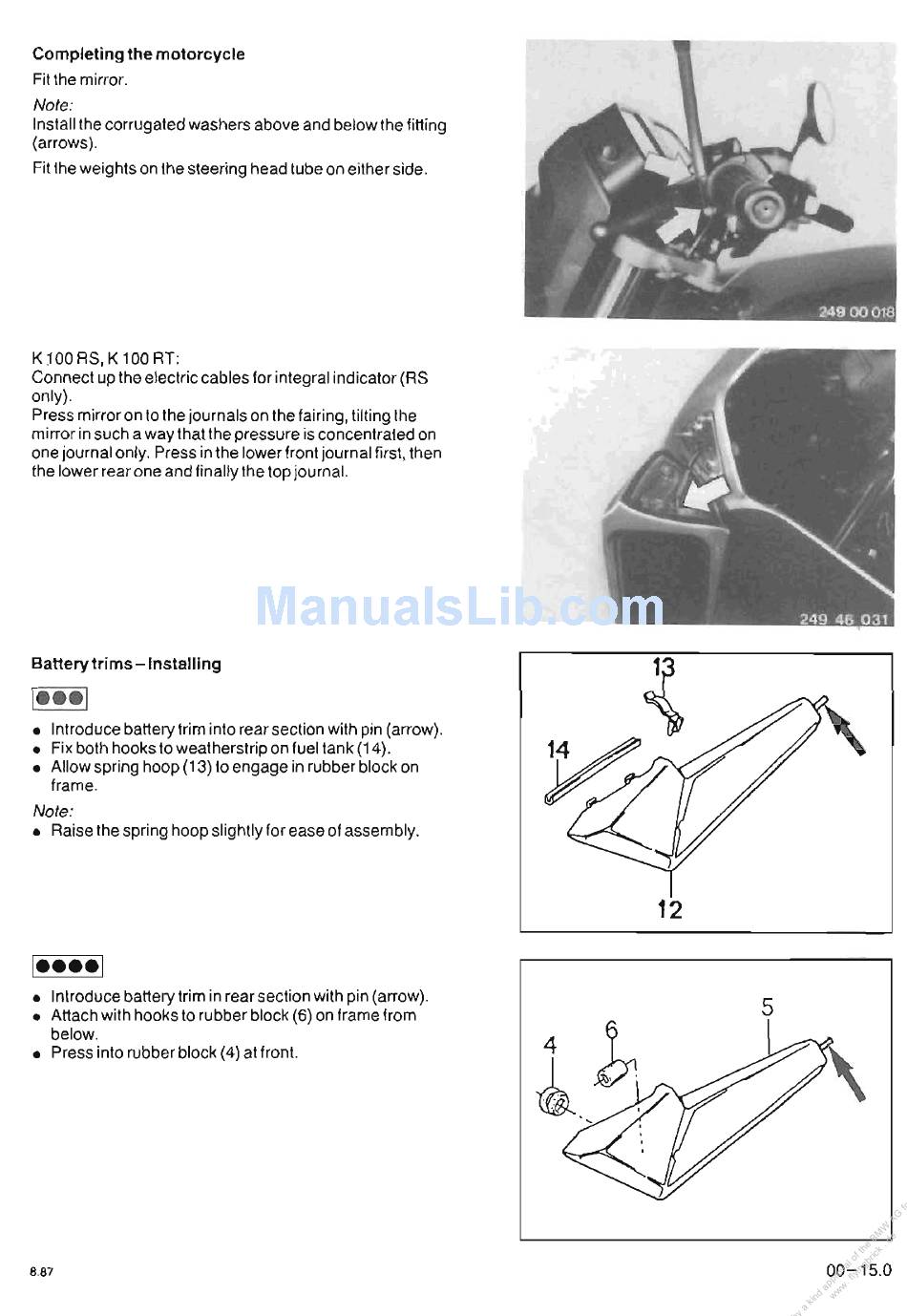

Completing the motorcycle
Fit the mirror.
Note:
Install the corrugated washers above and below the fitting
(arrows).
Fit the weights on the steering head tube on either side.
K JOO RS , K 100 RT:
Connect up the electric cables for integral indicator (RS
only).
Press mirror on to the journals on the fairing , tilting the
mirror in such a way that the pressure is concentrated on
one journal only. Press in the lowerfront journal first, then
the lower rear one and finally the top journal.
Battery trims - installing
1 • • • 1
• Introduce battery trim into rear section with pin (arrow).
• Fix both hooks to weatherstrip on fuel tank (14).
• Allow spring hoop (13) to engage in rubber block on
frame.
Note:
• Raise the spring hoop slightly for ease of assembly.
[eü-.]
• Introduce battery trim in rear section with pin (arrow).
• Attach with hooks to rubber block (6) on frame from
below.
• Press into rubber block (4) at front.
8.87
12
00-15.0
