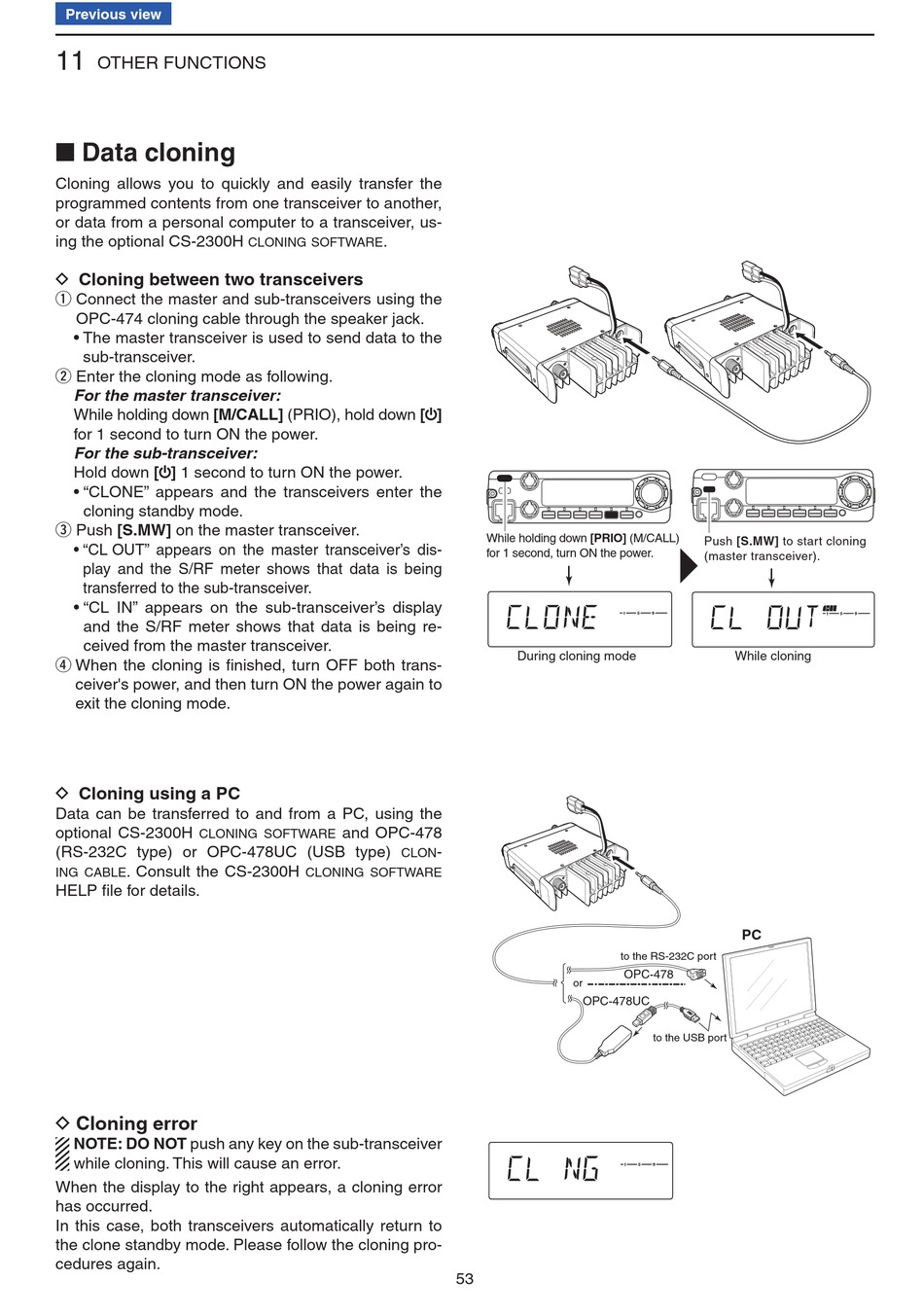

OTHER FUNCTIONS

■ Data cloning

Cloning allows you to quickly and easily transfer the
programmed contents from one transceiver to another,
or data from a personal computer to a transceiver, us-
ing the optional CS-2300H
D Cloning between two transceivers
q Connect the master and sub-transceivers using the
OPC-474 cloning cable through the speaker jack.
• The master transceiver is used to send data to the
sub-transceiver.
w Enter the cloning mode as following.
For the master transceiver:
While holding down [M/CALL] (PRIO), hold down [ ]
for 1 second to turn ON the power.
For the sub-transceiver:
Hold down [ ] 1 second to turn ON the power.
• "CLONE" appears and the transceivers enter the
cloning standby mode.
e Push [S.MW] on the master transceiver.
• "CL OUT" appears on the master transceiver's dis-
play and the S/RF meter shows that data is being
transferred to the sub-transceiver.
• "CL IN" appears on the sub-transceiver's display
and the S/RF meter shows that data is being re-
ceived from the master transceiver.
r When the cloning is fi nished, turn OFF both trans-
ceiver's power, and then turn ON the power again to
exit the cloning mode.
D Cloning using a PC
Data can be transferred to and from a PC, using the
optional CS-2300H
CLONING SOFTWARE
(RS-232C type) or OPC-478UC (USB type)
. Consult the CS-2300H
ING CABLE
HELP fi le for details.
D
Cloning error
NOTE: DO NOT push any key on the sub-transceiver
while cloning. This will cause an error.
When the display to the right appears, a cloning error
has occurred.
In this case, both transceivers automatically return to
the clone standby mode. Please follow the cloning pro-
cedures again.
.
CLONING SOFTWARE
and OPC-478
CLON
CLONING SOFTWARE
While holding down [PRIO] (M/CALL)
for 1 second, turn ON the power.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET LOW TONE
MONI
During cloning mode
-
or
OPC-478UC
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE
53
Push [S.MW] to start cloning
(master transceiver).
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
PRIO SCAN LOCK ANM DUP T-SCAN
M/CALL V/MHz
S ET MONI LOW TONE
While cloning
PC
to the RS-232C port
OPC-478
to the USB port
PRIO SCAN
M/CALL V/MHz
PRIO SCAN
M/CALL V/MHz
