D Contest Number Set Mode - Icom IC-7800 Instruction Manual

4
RECEIVE AND TRANSMIT

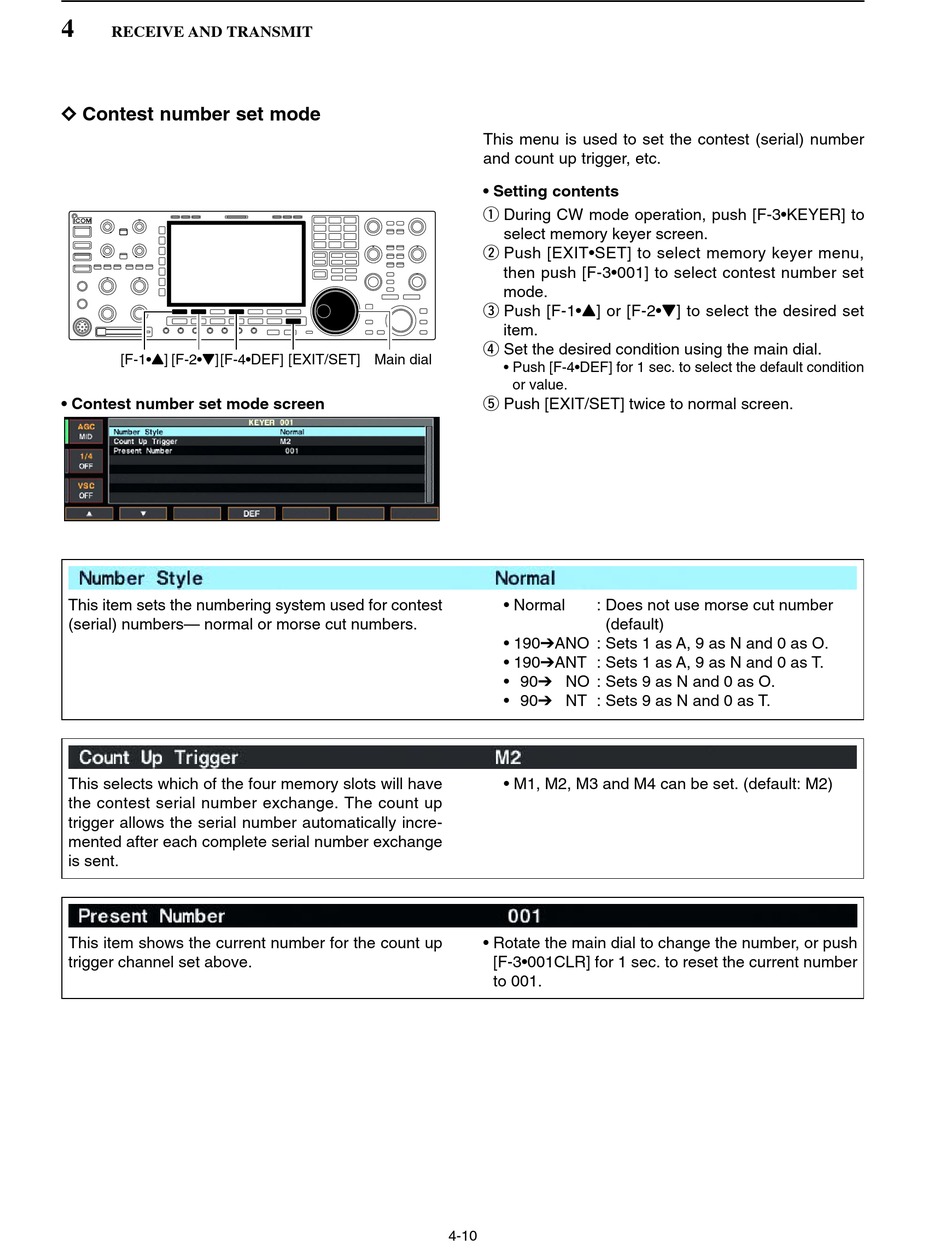

D Contest number set mode

[F-1•Y] [F-2•Z][F-4•DEF]
• Contest number set mode screen
This item sets the numbering system used for contest
(serial) numbers— normal or morse cut numbers.
This selects which of the four memory slots will have
the contest serial number exchange. The count up
trigger allows the serial number automatically incre-
mented after each complete serial number exchange
is sent.
This item shows the current number for the count up
trigger channel set above.
[EXIT/SET] Main dial
4-10
This menu is used to set the contest (serial) number
and count up trigger, etc.
• Setting contents
q During CW mode operation, push [F-3•KEYER] to
select memory keyer screen.
w Push [EXIT•SET] to select memory keyer menu,
then push [F-3•001] to select contest number set
mode.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push [F-4•DEF] for 1 sec. to select the default condition
or value.
t Push [EXIT/SET] twice to normal screen.
• Normal : Does not use morse cut number
(default)
• 190➔ANO : Sets 1 as A, 9 as N and 0 as O.
• 190➔ANT : Sets 1 as A, 9 as N and 0 as T.
• 90➔ NO : Sets 9 as N and 0 as O.
• 90➔ NT : Sets 9 as N and 0 as T.
• M1, M2, M3 and M4 can be set. (default: M2)
• Rotate the main dial to change the number, or push
[F-3•001CLR] for 1 sec. to reset the current number
to 001.
