AMX MST-431 Instruction Manual

AMX MST-431 Instruction Manual

4.3” modero s series tabletop touch panel/wall mount touch panel
Hide thumbs Also See for MST-431:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual

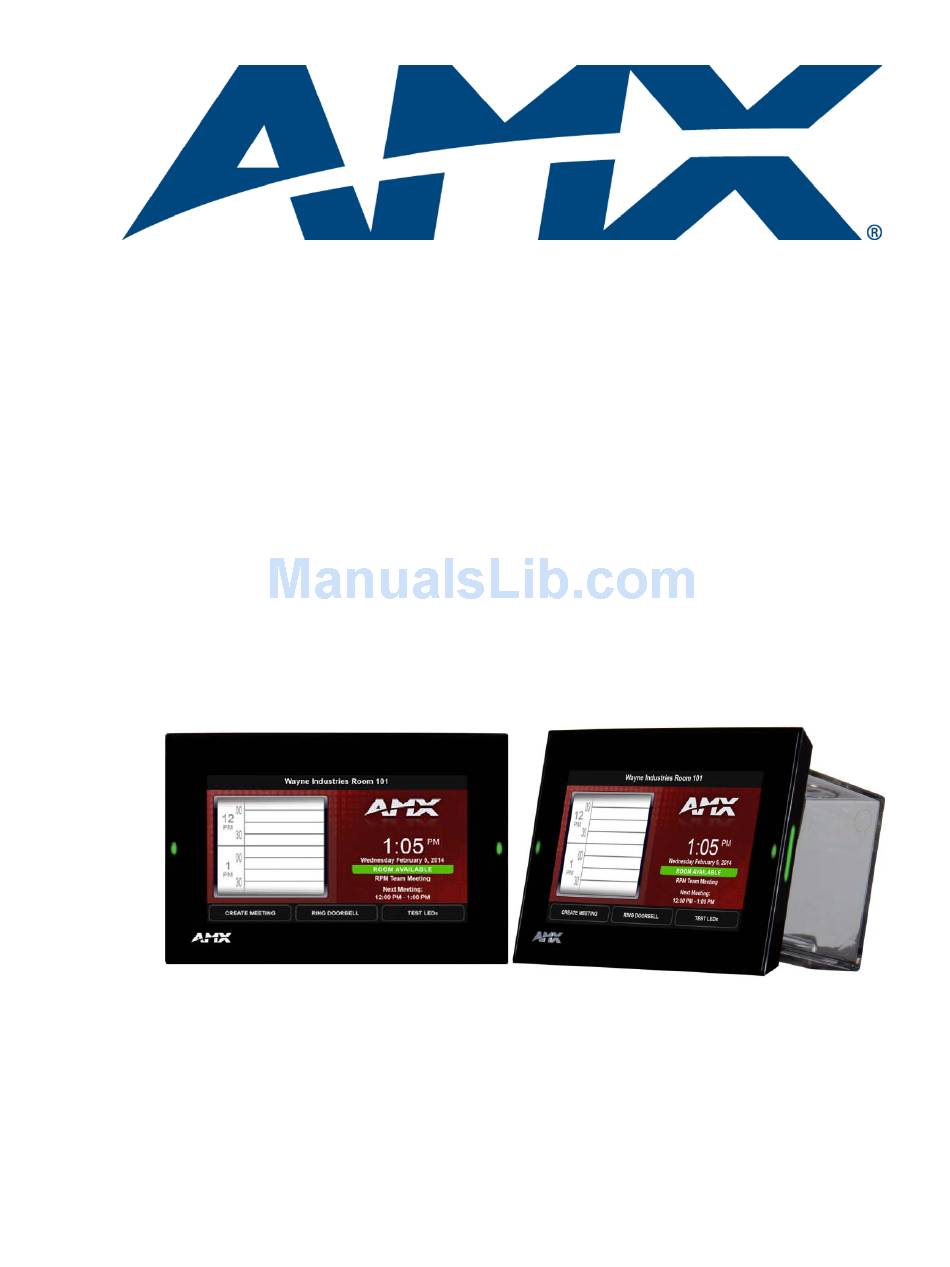

I n s t r u c t i o n M a n u a l
MST-431/MSD-431-L
4.3" Modero S Series® Tabletop Touch Panel
4.3" Modero S Series® Wall Mount Touch Panel
M o d e r o S S e r i e s T o u c h P a n e l s
L a s t R e v is e d : 4 / 2 1 / 2 0 1 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MST-431 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX MST-431

Summary of Contents for AMX MST-431

  • Page 1 I n s t r u c t i o n M a n u a l MST-431/MSD-431-L 4.3” Modero S Series® Tabletop Touch Panel 4.3" Modero S Series® Wall Mount Touch Panel M o d e r o S S e r i e s T o u c h P a n e l s...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Table Of Contents

    Panel Doesn’t Respond To Touches ................23 Panel Isn’t Appearing In The Online Tree Tab ............... 23 Can’t Connect To a NetLinx Master ................23 Only One Modero S Series Panel In My System Shows Up ........... 23 MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...
  • Page 4 Table of Contents MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 5: Mst-431/Msd-431-L 4.3" Modero S Series

    MST-431 The MST-431 Modero S Series 4.3" Tabletop Touch Panel (FG2265-07) features a 5" x 3.4" (128 mm x 87 mm), 6" (152 mm) diagonal 6.0" (152 mm) diagonal display, with a viewable area of 3.7" x 2.1" (95 mm x 54 mm), 4.3" (109 mm) diagonal.

  • Page 6: Mst-431 Specifications

    • Shutdown: 0.7 W • Start-Up Inrush Current: Not applicable due to PoE standard EXTERNAL POWER Optimal performance requires use of one of the following AMX PoE power supplies (not SUPPLY REQUIRED included): • PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83) •...
  • Page 7 • Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG) GRAPHICS ENGINE AMX G4: AMX's exclusive, powerful G4 graphics engine – the driving force behind the advanced graphics and image processing capability on a variety of AMX Touch Panels and other devices (see TPD4 Operations Guide for more information) EMBEDDED APPLICATIONS •...

  • Page 8: Msd-431-L

    • Shutdown: 0.7 W • Start-Up Inrush Current: Not applicable due to PoE standard EXTERNAL POWER Optimal performance requires use of one of the following AMX PoE power supplies (not SUPPLY REQUIRED included): • PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83) •...
  • Page 9 • Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG) GRAPHICS ENGINE AMX G4: AMX's exclusive, powerful G4 graphics engine – the driving force behind the advanced graphics and image processing capability on a variety of AMX Touch Panels and other devices (see TPD4 Operations Guide for more information) EMBEDDED APPLICATIONS •...

  • Page 10: Sleep Button

    Picture View By connecting a USB drive via one of the device’s USB ports, Picture View allows the MST-431 to access JPEG images on that drive and display them on the touchscreen. Individual images may be accessed at any time, or the entire collection may be displayed for predetermined times.

  • Page 11: Preview Mode And Normal Mode

    Picture View goes into its Normal Mode when the MST-431 goes into idle timeout while connected to a USB drive. Normal Mode displays images until the touchscreen is touched, or some other wakeup event is detected. When the device goes back into timeout, Normal Mode will return to displaying images until the USB drive is removed from the device.

  • Page 12: Configuration

    MST-431/MSD-431-L 4.3" Modero S Series® Configuration The MST-431 and MSD-431-L are equipped with Settings Pages that allow you to set and configure various features on the panels. For more information on connecting and configuring the touch panels to a network, please refer to the Modero S Series Programming Guide, available at www.amx.com.

  • Page 13: Installation

    Connectors on the rear of the MST-431 Power via Power Over Ethernet Power for the MST-431 is supplied via Power Over Ethernet (PoE), utilizing an AMX-certified, capacitive touch- compliant PoE injector such as the PS-POE-AT-TC High Power PoE Injector (FG423-83) or other approved AMX PoE power source.
  • Page 14 The maximum recommended torque to screw in the locking tabs on the plastic back box is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the tab screws, such as with powered screwdrivers, can strip out the locking tabs or damage the plastic back box. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...
  • Page 15 Making sure the actual cutout opening is slightly smaller than the provided dimensions is highly recommended. This action provides the installer with a margin for error if the opening needs to be expanded. Too little wall material removed is always better than too much. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...
  • Page 16 The back box is clear to allow visual confirmation that the tabs have been extended and are gripping the wall, as well as in assisting with removal if necessary. Insert each connector into its corresponding location along the back of the device (FIG. 11). MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...
  • Page 17 Do not force the panel into position, as this can cause damage to the touch screen or the panel electronics. Reconnect the terminal Ethernet and USB to their respective locations on either the Ethernet port or NetLinx Master. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 18: Uninstalling The Msd-431-L

    Rotate it up to release the top latch hooks, and carefully pull the device free from the back box. Take care not to damage or pull the connections on the back of the device. Always pull on the frame of the touch panel. NEVER pull on the glass edge. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 19: Configuration And Programming

    Configuration and Programming Configuration and Programming Programming the MST-431 and MSD-431-L require the use of the latest versions of NetLinx Studio and TPDesign 4, both available at www.amx.com. Modero S Series Programming Guide Information on Settings pages, panel configuration, and programming is included in the Modero S Series Programming Guide, available at www.amx.com.
  • Page 20 Configuration and Programming MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 21: Upgrading Firmware

    USB extension was not already installed. Turn on the MST-431 and MSD-431-L and allow it to boot up. When it has booted up, press and hold the Sleep button for 3 seconds to open the Settings page.

  • Page 22: Upgrading From Previous Firmware

    Upgrading from Previous Firmware The MST-431 and MSD-431-L allow the option to revert the device to the previous firmware run before an upgrade. To upgrade the device from previously loaded firmware: From the Settings page, select the Configuration page.

  • Page 23: Upgrading Firmware Via Netlinx Studio

    Upgrading Firmware Via NetLinx Studio The MST-431 and MSD-431-L use an Ethernet connection for programming, firmware updates, and touch panel file transfer via NetLinx Studio. If you have access to the panel’s network, you may transfer files directly to the panel...
  • Page 24 Master Connection section of the System Settings page and the panel is restarted. The OnLine Tree should now display the connection to the device. The Connection Status Icon on the device may take up to five seconds to register the connection. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 25: Viewing Devices On The Virtual System 2

    Kit file. If the panel firmware version is not the latest available; locate the latest firmware file from www.amx.com. Click on the desired Kit file link and after accepting the Licensing Agreement, verify download of the Modero Kit file to a known location.
  • Page 26 Confirm that the panel has been properly updated to the correct firmware version. Verify you have downloaded the latest firmware file from www.amx.com and then save the Kit file to your computer. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...

  • Page 27: Appendix: Troubleshooting

    Press the Protected button, enter 1988 into the on-screen Keypad’s password field, and press Done when finished. Enter a Device Number value for the panel into the Device Number Keypad. The range is from 1 - 32000. MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels...
  • Page 28 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
