VPA-DS ViewPort Docking Station

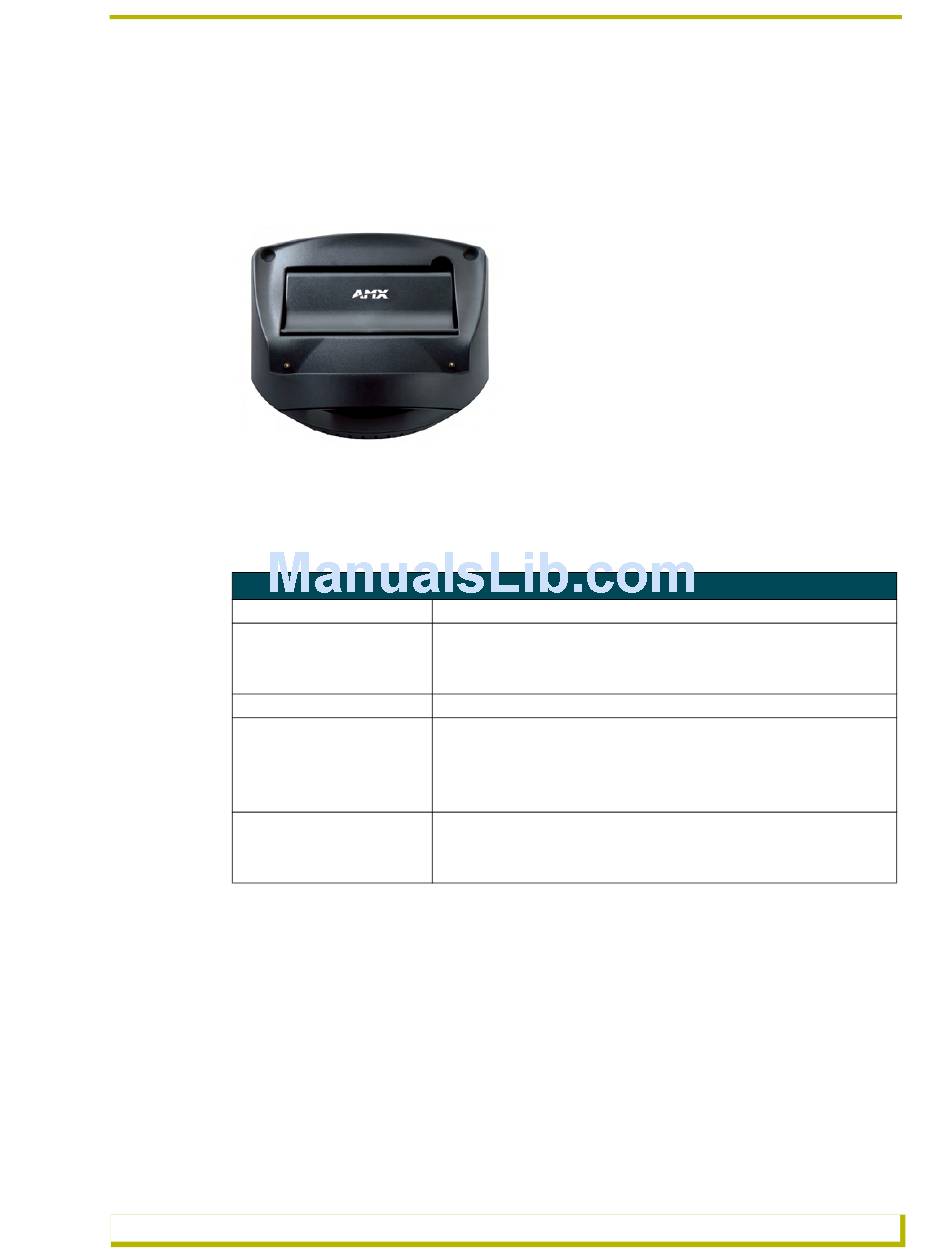

The ViewPort Docking Station (FIG. 8) includes a built-in battery charger and an angled desktop
docking station to cradle your ViewPoint touch panel.
FIG. 8 ViewPort Docking Station

ViewPort Docking Station Specifications

The following table lists the specifications for the VPA-DS ViewPort Docking Station.
Specifications
Dimensions (HWD)
Environmental operating range:
Temperature
Humidity
Power requirement
Indicators (FIG. 9):
Yellow LED
Green LED
Red LED
Options:
Power supply
Battery

ViewPort Product Information

The ViewPort Docking Station (FIG. 9) provides a built-in battery charger and an angled desk
docking station to cradle your ViewPoint touch panel. When a ViewPoint is placed in the docking
station's cradle, the ViewPoint makes contact with the charging pins and power is supplied by the
docking station.
ViewPoint Wireless Touch Panels
4.83" x 8.26" x 7.62" (122.7 mm x 209.8 mm x 193.4 mm)
50 °F to 104 °F (10 °C to 40 °C)
0% to 90% non-condensing
13.5 VDC at 2.8 A
• Indicates ViewPoint connected to ViewPort Docking Station
• Indicates spare battery is fully charged
• Indicates spare battery is charging
13.5 VDC @ 2.8 A power supply
VPA-BP ViewPoint Rechargeable Battery (NiMH, 3.7 Amp @ 7.2 VDC)
VPA-DS ViewPort Docking Station
