DISASSEMBLY
NOTE:
1. Remove 4 Screws, then remove the Stepper Motor from the Gear Assembly. See Figure 6–4.
NOTE:
Step 5
Step 3
Step 4
Step 2
2. Remove 1 E-ring, then remove the Tension Roller Drive Gear.
3. Remove 1 E-ring, then remove the Developer Drive Gear Assembly. This includes both
bearings.
NOTE:
Chapter 6 – Paper Feed Subsystem
The Stepper Motor can be removed from the Gear Assembly without
removing the Gear Assembly from the Printer.
When installing the Stepper Motor onto the Frame, the Cable Connector
must face toward the rear of the printer.
Step 10

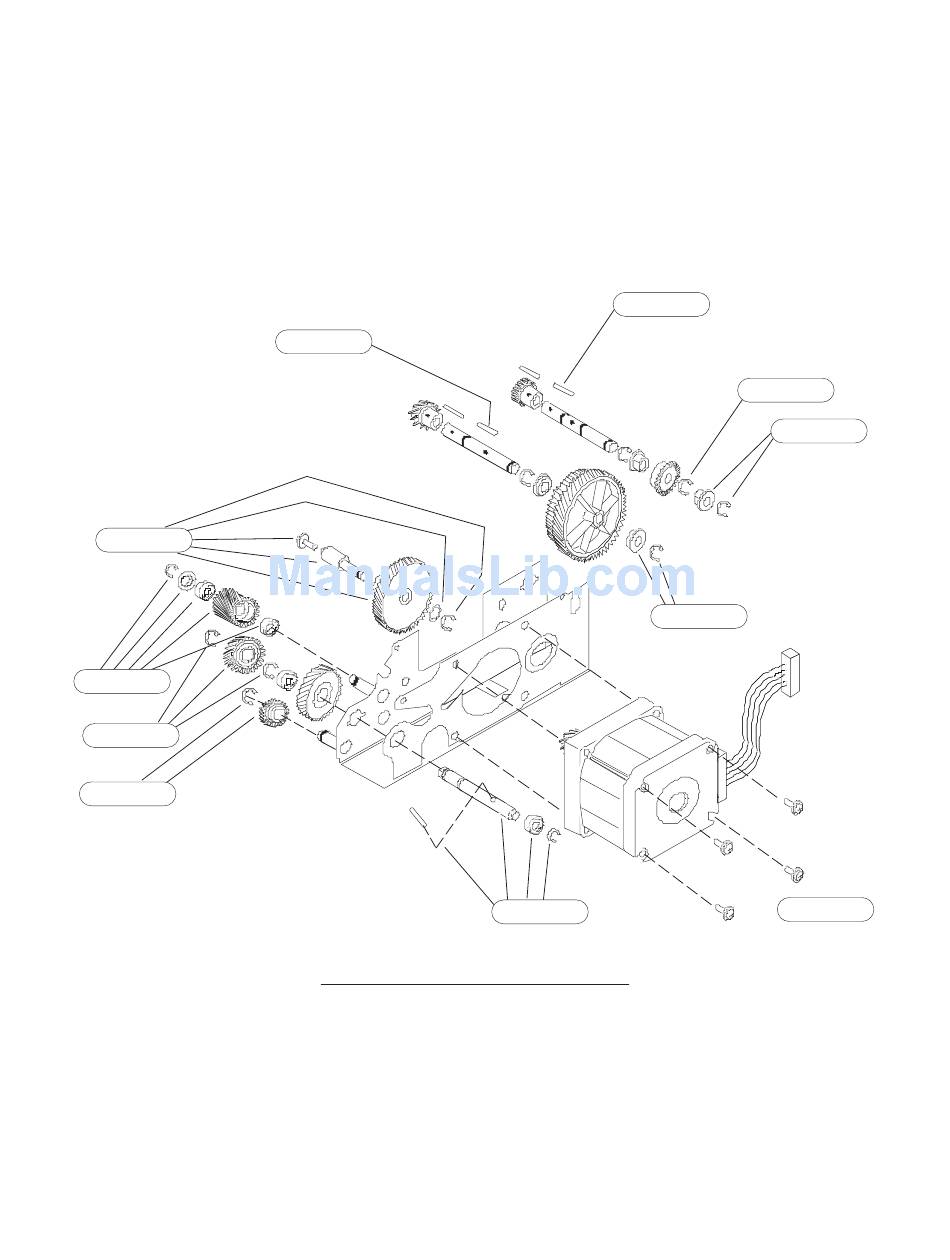

Figure 6–4. Stepper Motor Disassembly
The Bearing Seal and both Ball Bearings can now be removed from the
inside of the Gear.
Step 8
Step 9
Step 4
Step 6
Step 7
Step 1
