8.4 High Voltage Power Supply

8.4.1 Removal and Disassembly

1. Open the Clamshell, remove the OPC Drum Unit, the Developer Unit, and any paper present
in the printer.
2. Remove the Left Side Cover of the printer. See Figure 8–14.
a. Remove 2 Screws from the Left Side Cover.
b. Loosen, but do not remove, 1 Screw on the Base Plate. This loosens the Mounting
Bracket so it can be slid free of the Base Plate.
c. Lift the front edge of the Cover to disengage the Locking Tabs, then slide the Cover
toward the rear of the printer to disengage the Bracket from the Screw in the Base Plate.
3. Remove the Front Plastic Paper Guide of the Transfer Charger by pressing down on the ends
and sliding it to the left. This disengages the Locking Tabs and the Guide can be easily
removed. See Figure 8–15 .
Chapter 8 – Power Supplies
Step 2a
Î Î
Î Î
Î Î
Locking Tabs

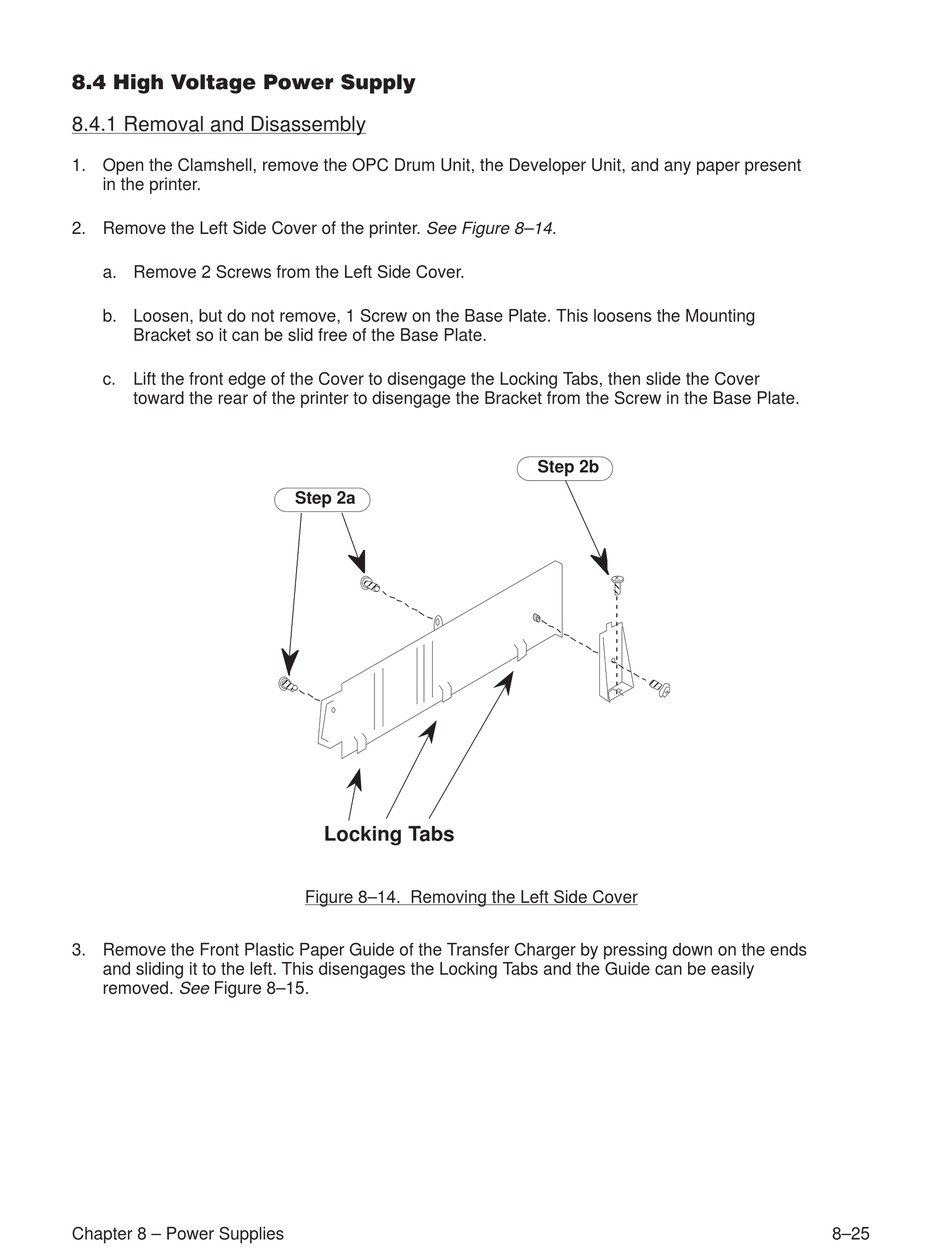

Figure 8–14. Removing the Left Side Cover
Step 2b
Ï
Ï
Î Î
Î Î
8–25
