3.1 Overview

The OPC Drum Unit is a user-replaceable consumable. It has a life of around 30,000 pages. It receives
the laser light image of the page from the LSU, transfers toner from the developer to the OPC drum to
form this image, and allows the toner image to be transferred to the page prior to fusing. See Figure 3–1.
This unit is factory assembled and factory adjusted. No field adjustments are required.

3.2 Removal and Disassembly

To remove the OPC Drum Unit from the printer, first open the printer top cover. Then, simply lift the unit
out of the printer. See Figure 3–2 .
CAUTION:
Chapter 3 – OPC Drum Unit Subsystem
Chapter 3
OPC Drum Unit Subsystem

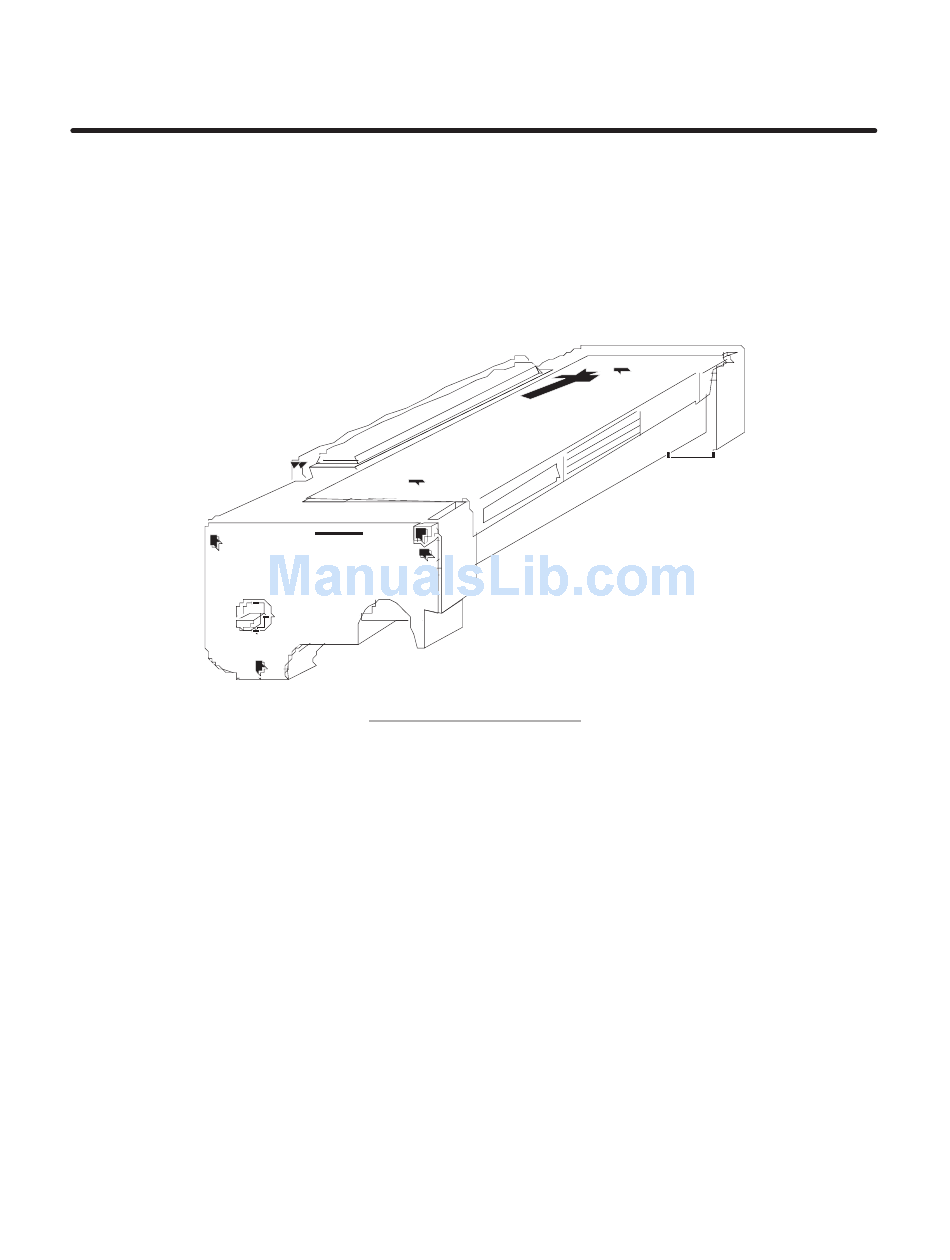

Figure 3–1. OPC Drum Unit
When removing the OPC Drum Unit from the printer, be careful not to
spill toner from the waste toner screw (located on the left side of the
unit).
3–1
