Printronix L1024 Maintenance Manual page 260

CN7

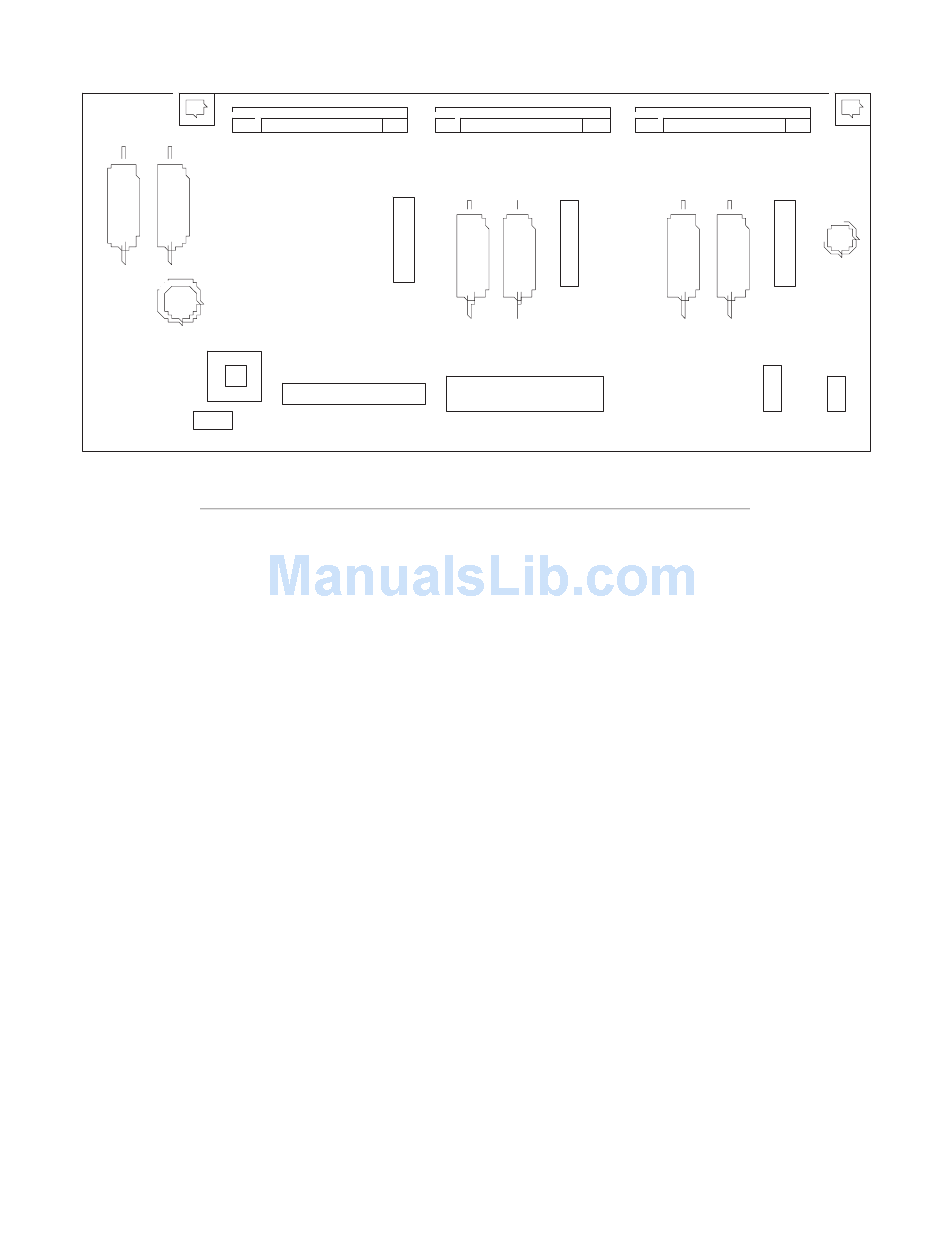

Figure 12–20. Stepper Motors Controller Board Connector Identification
28. Remove the Tractor Paper Guide by removing 1 Screw. Disconnect the Cable from the Fuser.
Remove 1 Screw from the Cable Tie to release the Cable from the Base Plate of the printer.
See Figure 12–21 .
29. Remove 2 Screws from the Stepper Motor Board Frame and remove it from the printer. See
Figure 12–21 .
30. Remove 2 Screws from the rear corners of the Base Plate. See Figure 12–21 .
31. Remove 3 Screws from the right side of the Base Plate. See Figure 12–21 .
12–40
CN3 CN4
CN2
CN1
Chapter 12 – Covers, Frame, and Backplane Board
CN5
CN8
CN6
