Step 6B
Step 6C
Step 6A
NOTE:
b. Remove the 2 Covers by gently releasing the Locking Tabs with a screwdriver.
CAUTION:
c. To remove the Corona Wire, gently pull on the small Eyelet at the opposite end of the
Wire from the Spring, and remove the small Eyelet from its Post.
CAUTION:
d. Remove the large Eyelet from the Spring.
NOTE:
7. Remove the E-ring on the left end of the Main Shaft and remove the Shaft.
8. Remove the Transfer Charger Frame from the Charger Base Plate.
5–12

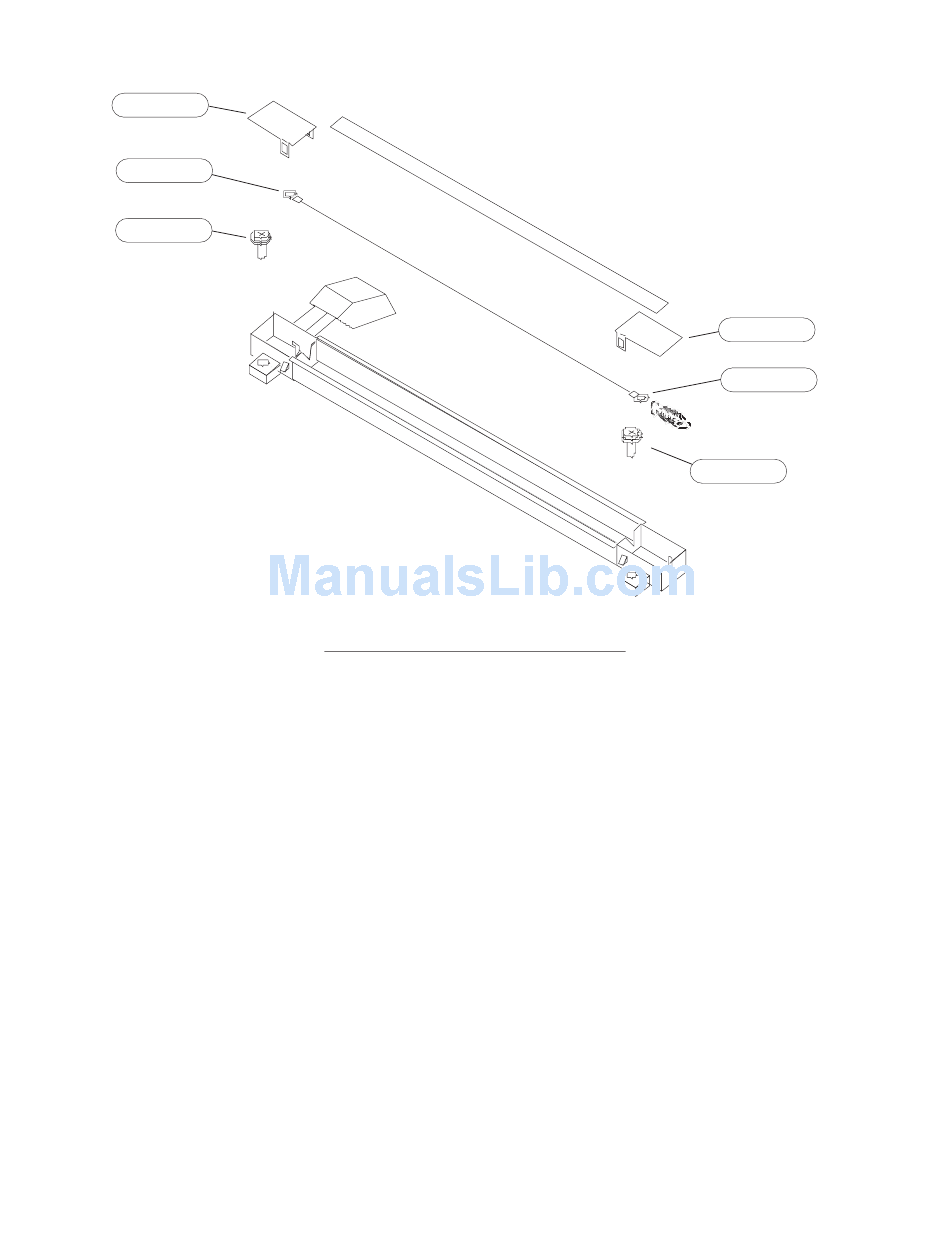

Figure 5–4. Transfer Corona Assembly
When installing the corona assembly, make sure the neck of the corona
contact is under its locking tab. See Detail 5–3 .
The Tabs are extremely fragile and can be easily broken.
The Wire is only 60 µm thick and can be easily broken. Also, do not
touch the wire, as fingerprints may cause it to fail.
The Spring should be removed only if absolutely necessary.
Step 6B
Step 6D
Step 6A
