6.3 Tension Roller Assembly

6.3.1 Removal and Disassembly

1. Open the Clamshell, remove the OPC and Developer Units, and any paper present in the
Printer.
2. Remove the Front Plastic Paper Guide from the Transfer Charger Assembly by pressing
down on its ends and sliding it to the left. This disengages the Locking Tabs and the Paper
Guide can then be easily removed. See Detail 6–1.
3. Remove 2 Screws at the rear of the Lower Paper Guide, then remove it from the Printer by
lifting the rear out first. See Figure 6–1 . This helps it clear the Contacts for the High Voltage
Power Supply and the Transfer Charger Frame. Disengage the Locking Tabs at the front of
the Paper Guide from the Tension Roller Frame.
6–12

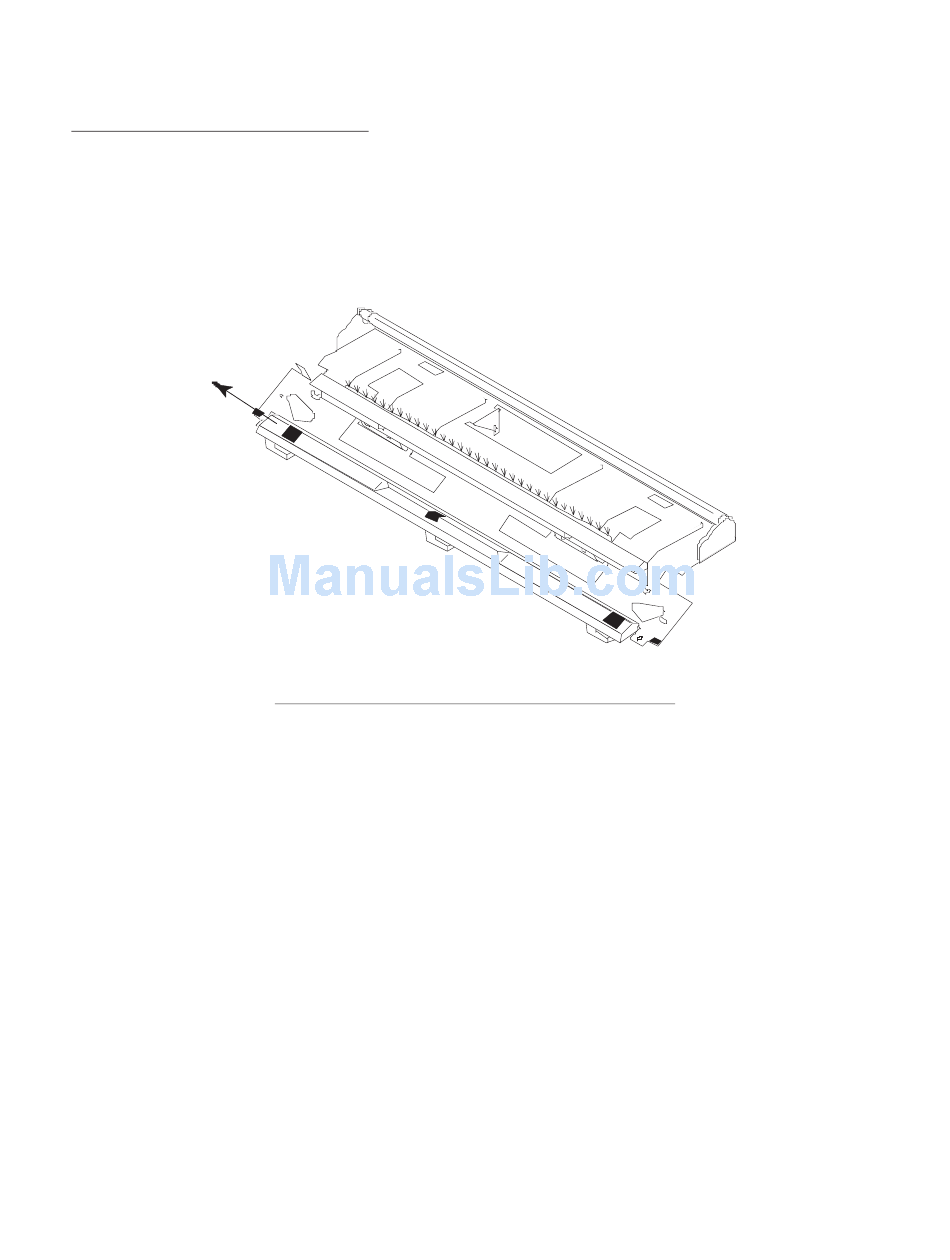

Detail 6–1. Removing the Front Plastic Paper Guide
Chapter 6 – Paper Feed Subsystem
