4. Remove the Transfer Charger Paper Guide by gently pressing the Release Tabs at the rear of
the Guide toward the front of the printer. Lift the rear of the Guide to clear the Tabs of the
Slots, and release the Front Tabs by rotating the Guide toward the front of the printer. See
Figure 8–15 .
5. Remove the Static Brush and Rear Plastic Paper Guide from the Corona Assembly by
removing 2 Screws. See Figure 8–15 .
NOTE:
Static Brush
Is Placed In
Front Of
Retaining
Tab
6. Remove 2 Screws and lift the Corona Assembly up slightly while sliding it to the left to
disengage the Locking Tabs. See Figure 8–15 .
7. Remove 2 Screws at the rear of the Lower Paper Guide, then remove it from the printer by
lifting the rear portion of the Guide out first. This helps the Guide clear the Contacts for the
HVPS and the Transfer Charger Frame. Disengage the Locking Tabs at the front of the Guide
from the Tension Roller Frame. See Figure 8–15 .
8. Remove the Fuser Heat Shield. See Figure 8–17 .
Chapter 8 – Power Supplies

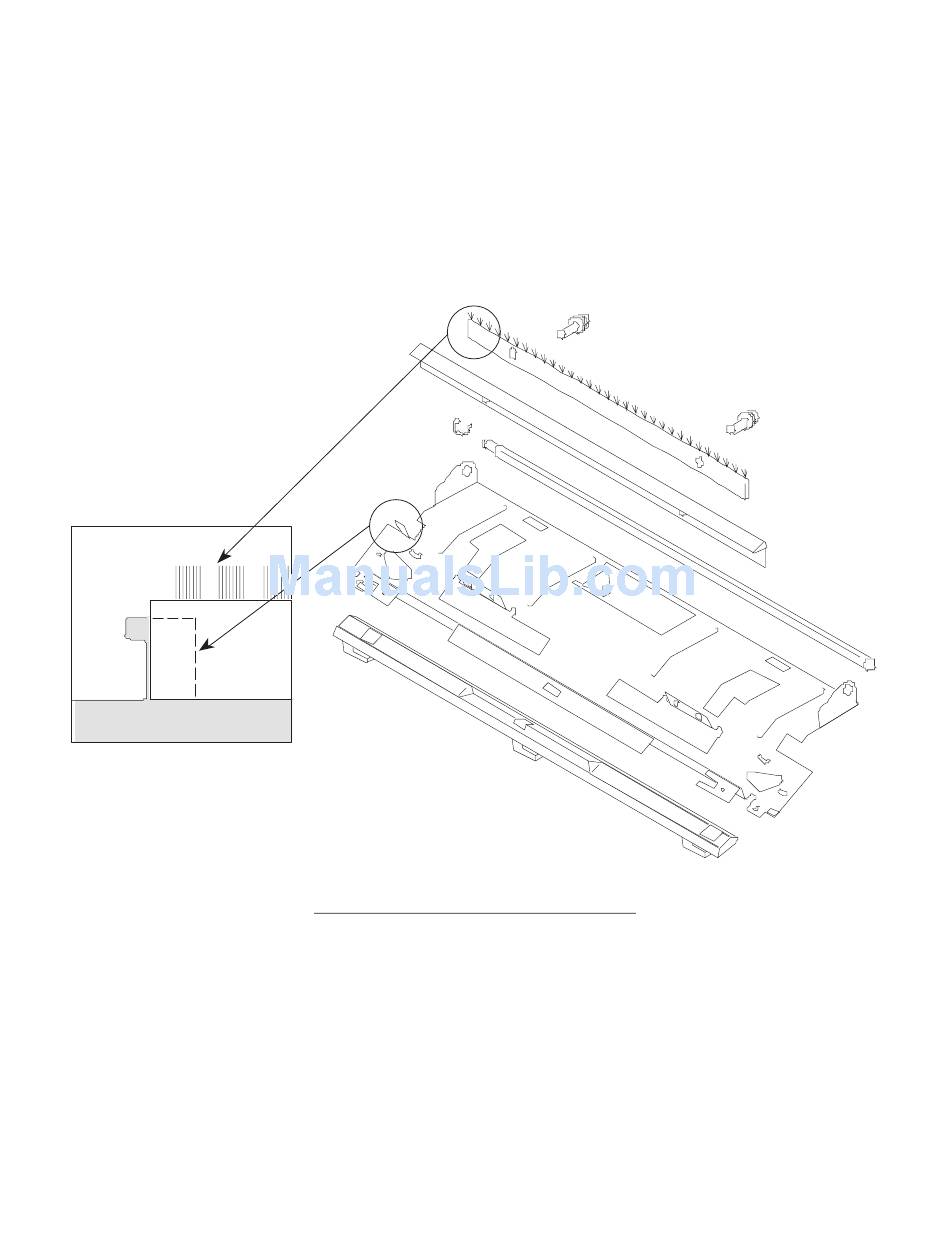

When reinstalling the Static Brush, ensure that the Brush Frame is in front
of the Locking Tab for the Corona Assembly. See Figure 8–16.
Figure 8–16. Reinstalling the Static Brush
8–27
