The Cable Clamp Screw Mount

1. Use a pair of pliers or similar tool to hold the 4mm nut while removing the Phillips screw (see

Figure C–21).

2. Remove the Phillips screw and lift the cable clamp over the rear paddle drive cord.

1. Reverse steps 1 and 2 above.

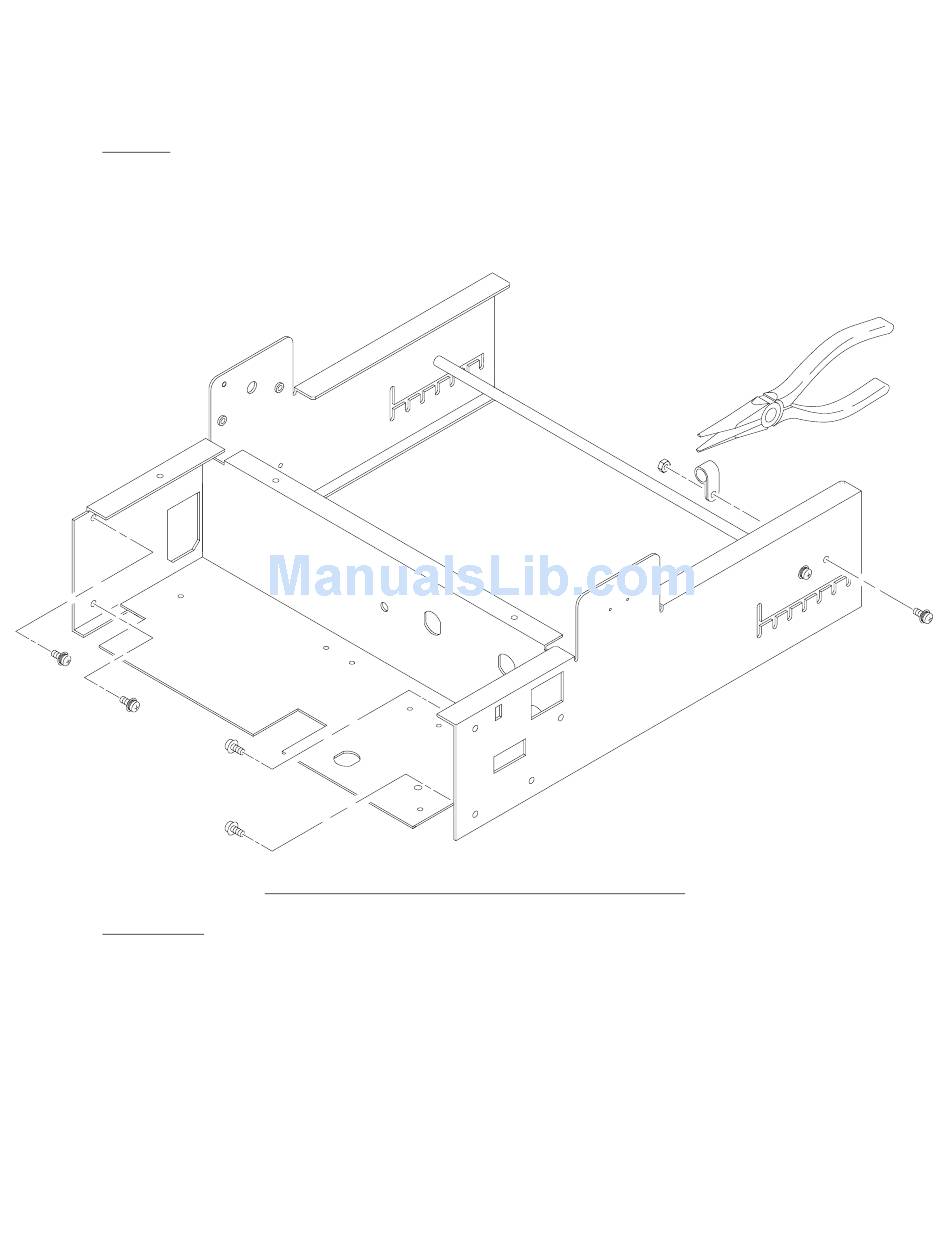

Figure C–21. Removing the Cable Clamp Screw Mount

Appendix C – Continuous Form Stacker
