4. Remove the Lamp Connector cover by removing 1 Screw. Disconnect the Fuser Lamp and

Thermistor Connectors from the Stepper Motor Board Frame. See Figure 12–6.

Lamp Connector Cover

Right Inside Cover

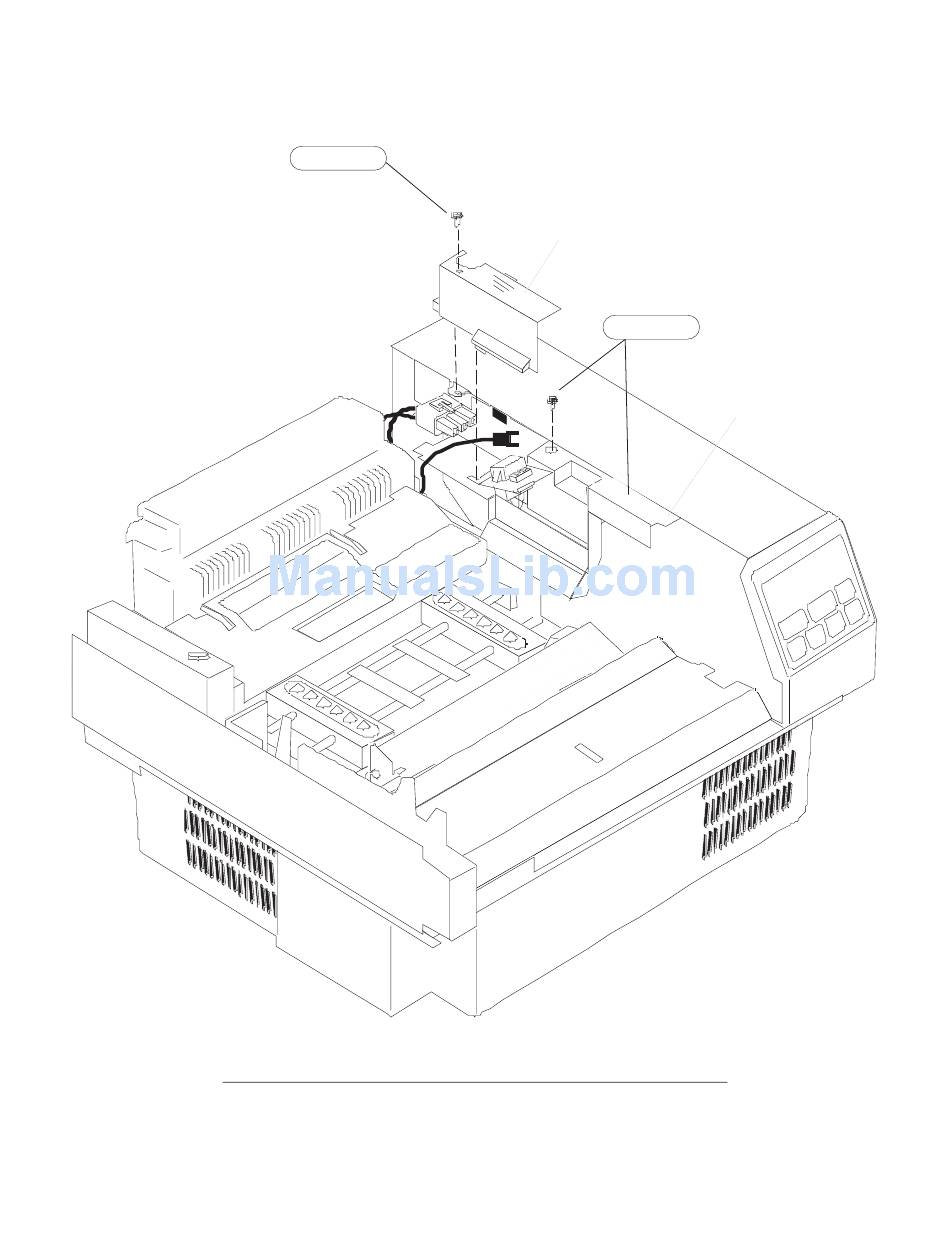

Figure 12–6. Disconnecting the Lamp and Thermistor Connectors

Chapter 12 – Covers, Frame, and Backplane Board
