Printronix L1024 Maintenance Manual page 148

Continuous form laser printer
Hide thumbs Also See for L1024:
Table of Contents

Advertisement

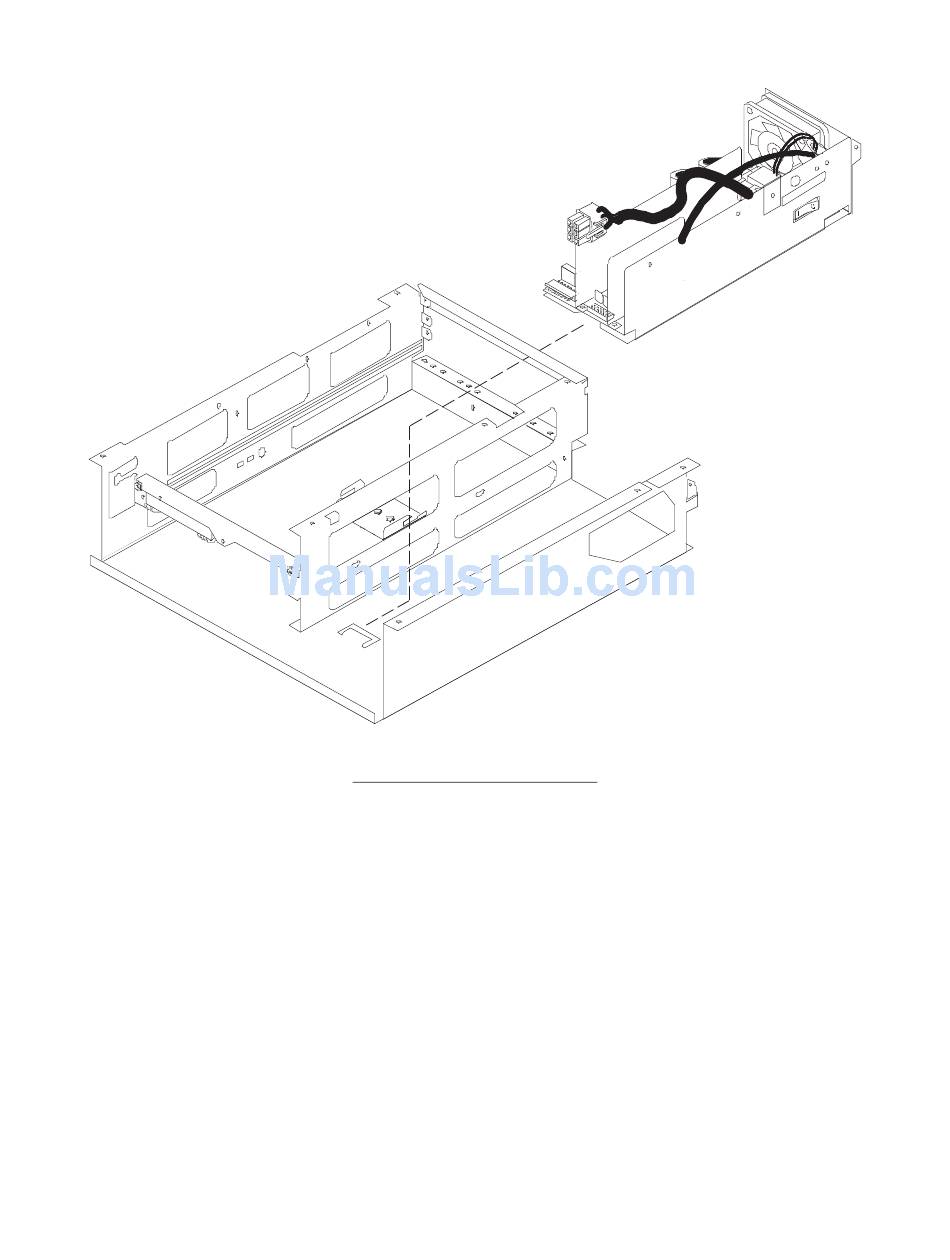

Figure 8–7. LVPS Locking Tabs
8. To remove the LVPS Cooling Fan, disconnect the Cable from Connector CN3, remove 2
Screws, then remove the Cooling Fan.
8–16
Chapter 8 – Power Supplies
