6. Remove 1 Screw and the Tension Spring, then remove the Pivot Shaft from the Assembly to
free the Hinge Frame from the Clamshell Frame.
NOTE:
2.7.2 Reassembly and Replacement
Reverse Steps 1 through 6 above.
2.7.3 Adjustment
Adjust the spring tension (on the side of the hinge) so that when the Clamshell is opened fully and
released, the Clamshell falls to a 30 angle and then stops. This adjustment prevents the Clamshell from
injuring the fingers of operators or service personnel.
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
Î Î Î Î Î Î Î
2.7.4 Troubleshooting
See Chapter 13 for troubleshooting information.
2–22
The steps above can be performed for either Hinge Assembly.
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Î Î Î Î Î Î Î Î Î Î Î Î Î Î
Ì Ì Ì
Ì Ì Ì
Ì Ì Ì
Spring Tension
Adjustment Screw

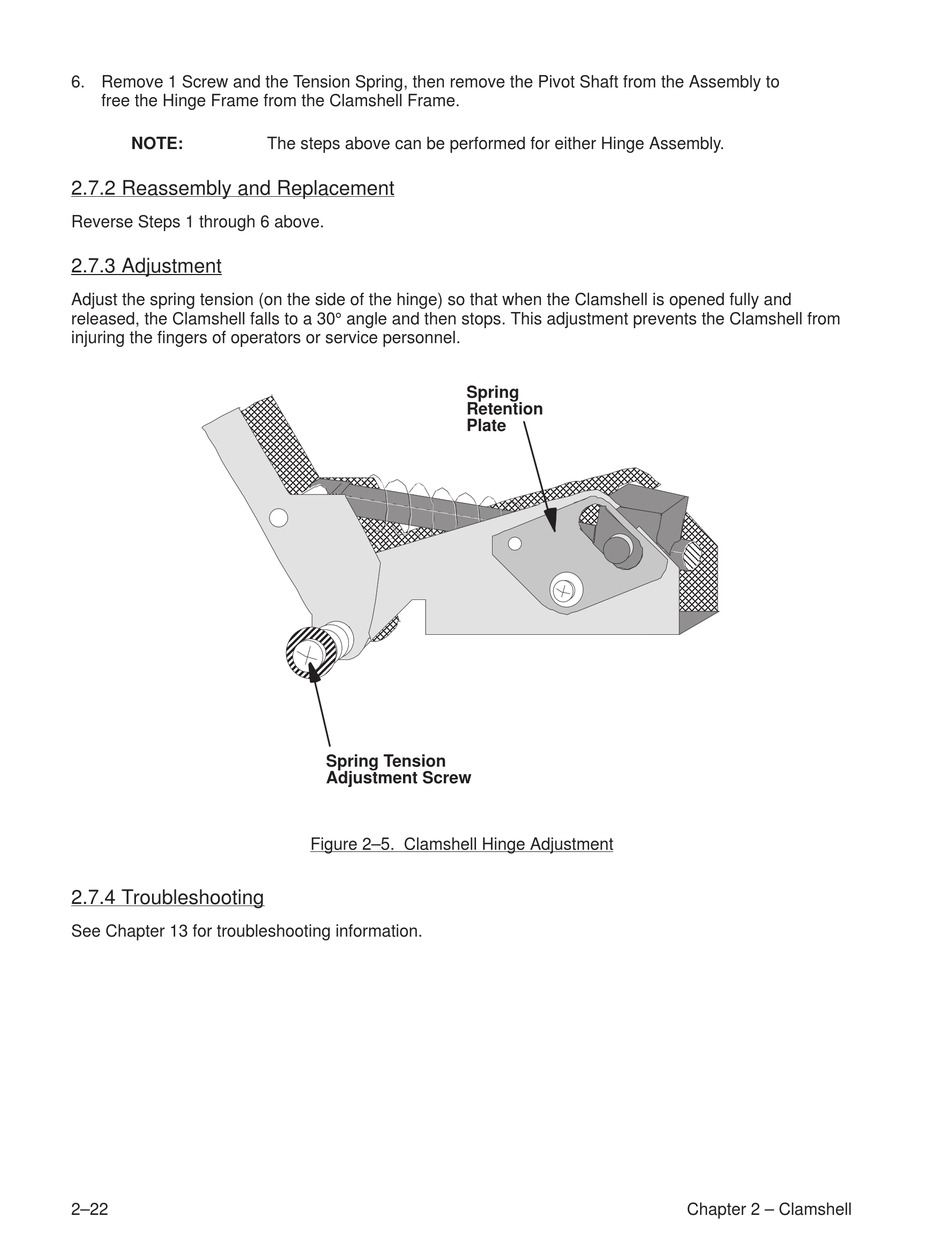

Figure 2–5. Clamshell Hinge Adjustment
Spring
Retention
Plate
Î Î
Î Î
Ï Ï
Ï Ï
Chapter 2 – Clamshell
