9. Remove 1 Spring from the right rear side of the Fuser Pressure Roller Frame. See
Figure 7–2.
Step 15
Step 10
Step 13
Step 18
Step 12
Step 11
7–18
Step 9

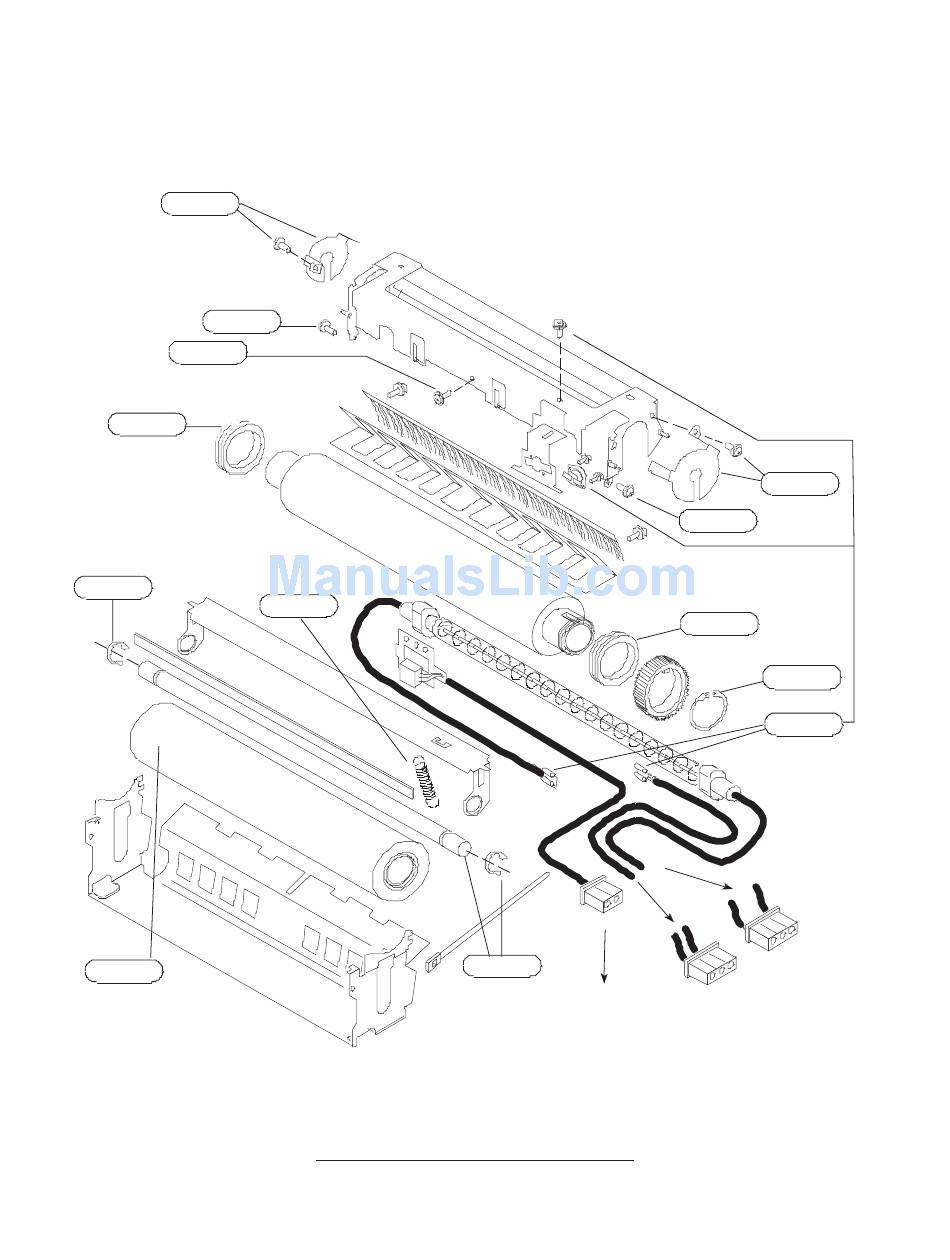

Figure 7–2. Fuser Assembly Disassembly
Step 12
(100 to 120V
and 220 to 240V
in common)
Chapter 7 – Fuser Subsystem
Step 16
Step 10
Step 18
Step 19
Step 14
(220 to 240V
only)
OR
(100 to 120V
only)
