This section provides instruction on the disassembly and reassembly of various stacker assemblies.
Required Tools
S Small Phillips Screwdriver
S Medium Phillips Screwdriver
S Needlenose Pliers
S 1.5mm Allen Wrench
S 2.5mm or 5/32" Hex-head Allen Wrench
S 5mm Allen Wrench
S 9/16" Open-end Wrench
S 1/8" Small Flathead Screwdriver
S 1/4" to 1/2" Flathead Screwdriver
S Large Blade Flathead Screwdriver
S Strain-Relief Pliers
S Lightweight Machine Oil (Like 3-IN-ONE )
S Soft-face Hammer

The Basic Frame

Note that the basic frame (vertical frame assembly) of the stacker is factory aligned and is not
field-adjustable or field-replaceable. The basic frame includes the two vertical columns, the upper
frame tie and the lower frame tie as shown below.
C–16

Disassembly/Reassembly

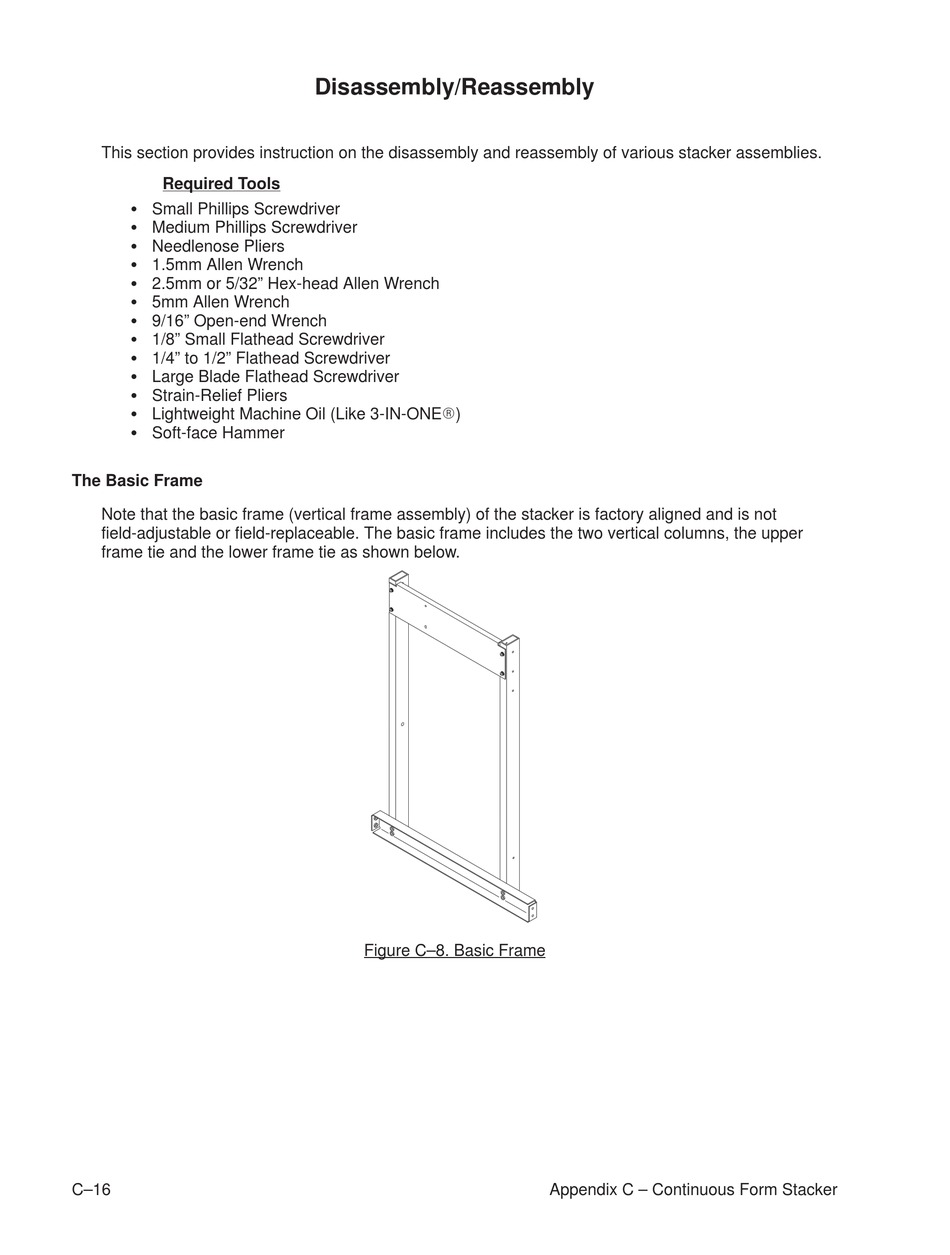

Figure C–8. Basic Frame
