9.2 Engine Controller Board Parts List

Callout Name
1 Engine Controller Board, L1024
2 Backplane Board, L1024
1
2
Backplane
Board
Chapter 9 – Controllers and Floppy Disk Drives
Engine
Controller
Board

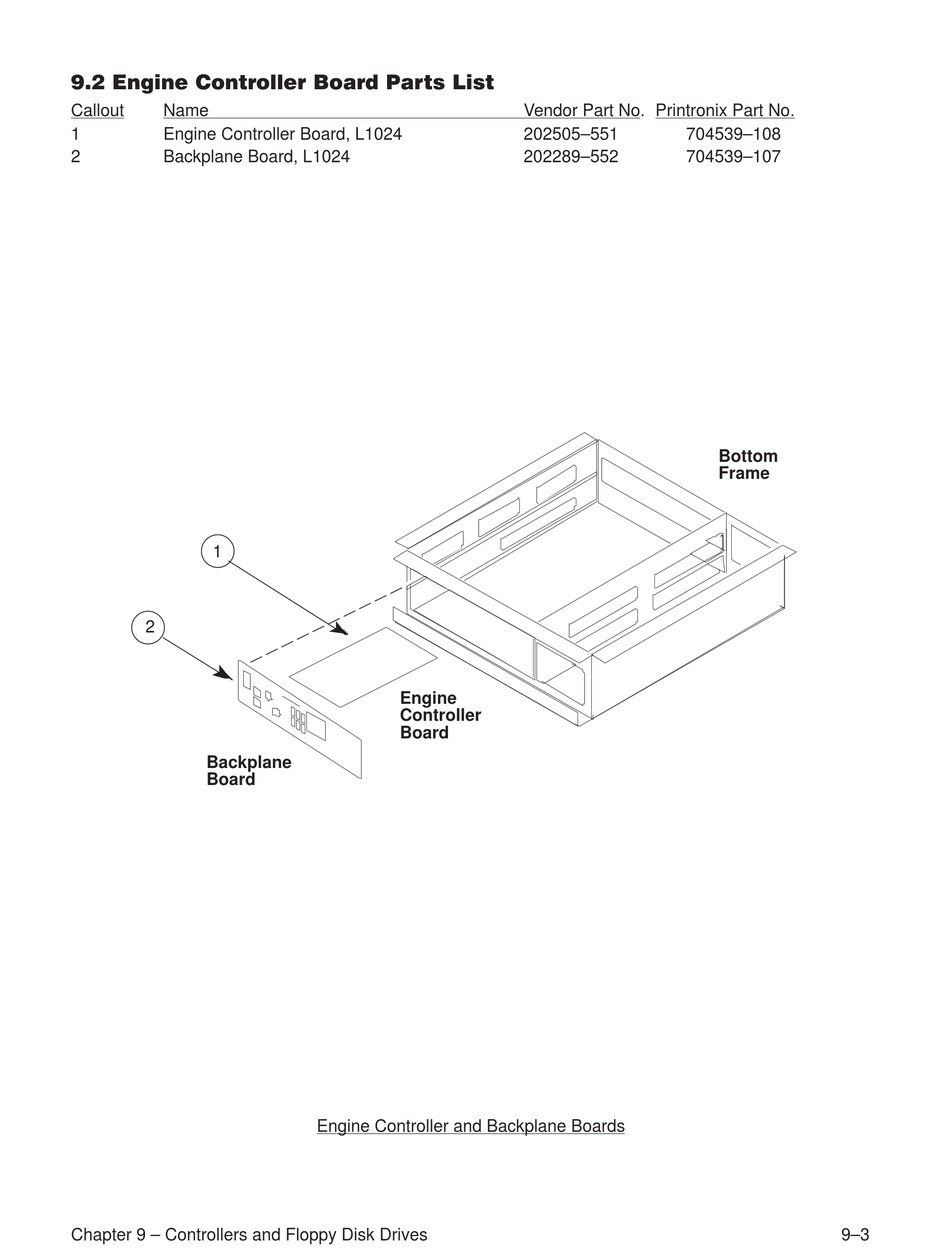

Engine Controller and Backplane Boards
Vendor Part No. Printronix Part No.
202505–551 704539–108
202289–552 704539–107
Bottom
Frame
