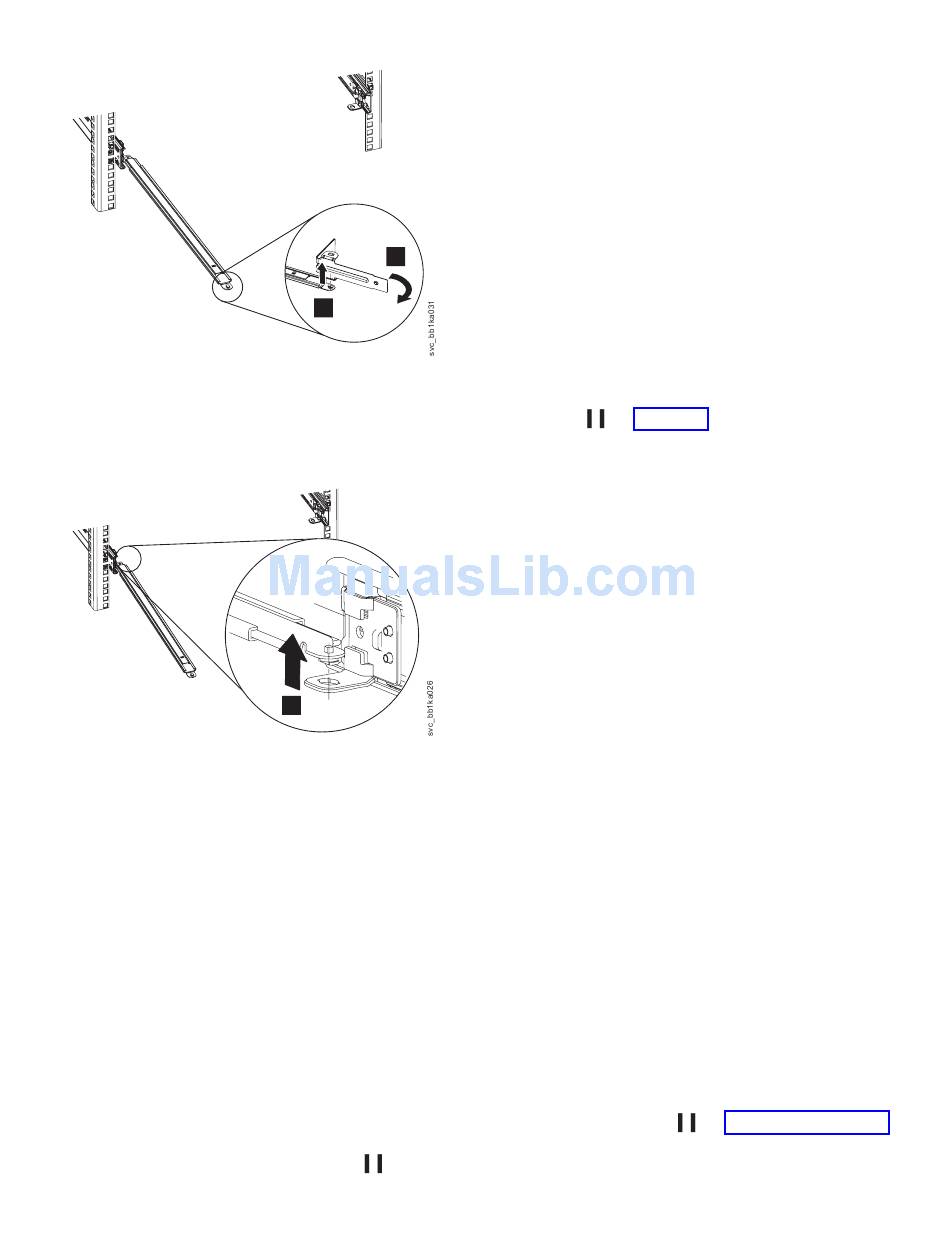

Figure 14. Removing the SAN Volume Controller 2145-CF8 cable-management stop bracket
9. Disconnect the attached end of the support arm, as shown by 1 in Figure 15, from the same slide
rail from which you detached the cable-management arm.
Figure 15. Detaching the SAN Volume Controller 2145-CF8 cable-management support arm

Replacing the cable-management arm

Replace the cable-management arm after you install the SAN Volume Controller 2145-CF8 node into the
rack.
Replacing the SAN Volume Controller 2145-CF8 cable-management arm
The SAN Volume Controller 2145-CF8 uses a cable-management arm to route and secure power cables
and other cables.
Replace the SAN Volume Controller 2145-CF8 cable-management arm after you replace the node in the
rack.
The cable-management arm is installed to pivot from the left side of the SAN Volume Controller
2145-CF8 rack, when viewed from the rear of the rack.
To attach the cable-management arm, perform the following steps:
1. At the rear of the rack, connect one end of the support arm, as shown by 1 in Figure 16 on page 26,
to the same slide rail to which you plan to attach the cable-management arm so that you can swing
the other end of the support arm 2 toward the rack.
1
2
2
1
Chapter 2. Removing and replacing parts
25
