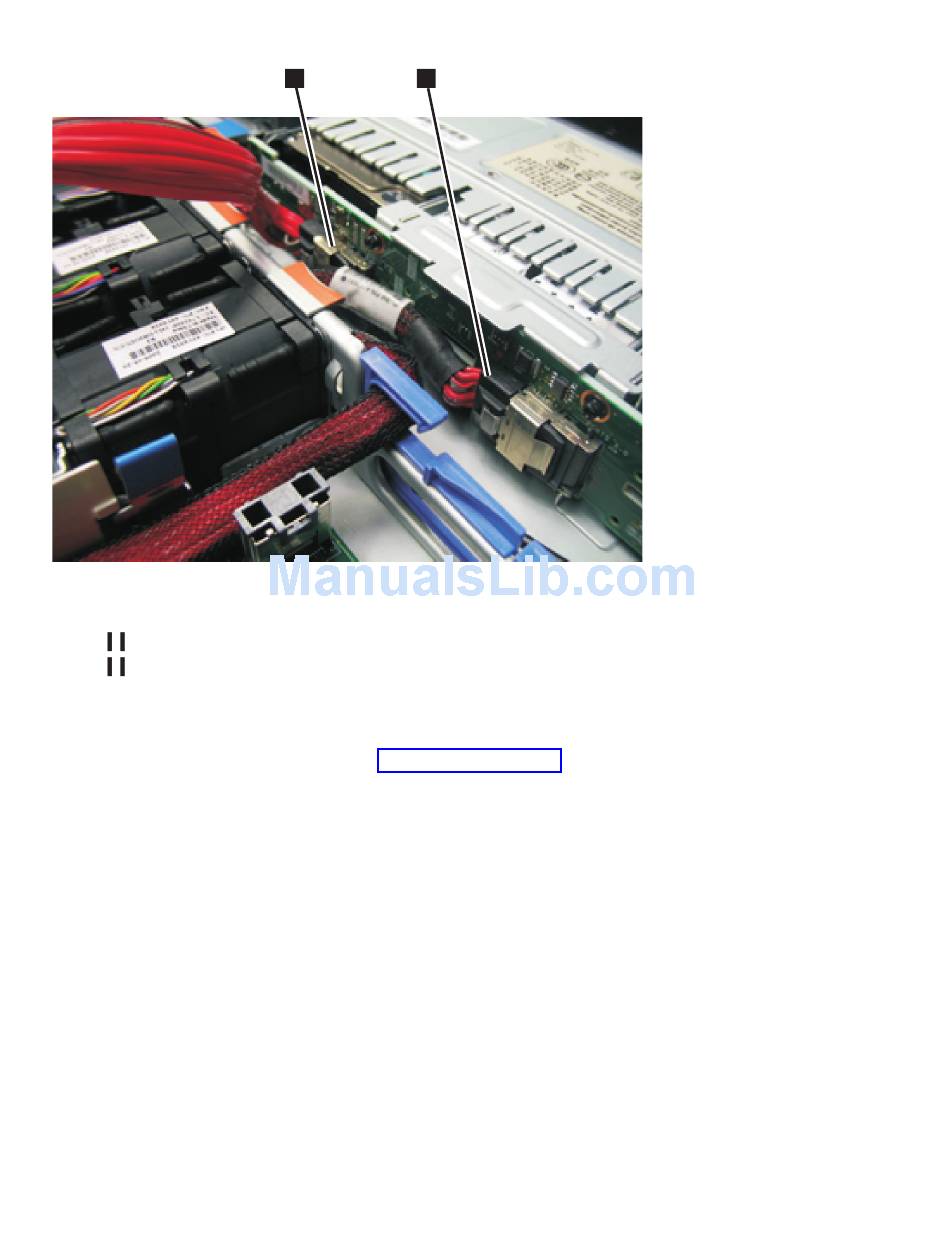

Figure 196. Boot-disk SAS cable and the high-speed SAS cable connected to the disk backplane in the SAN Volume
Controller 2145-CF8
1 Boot-disk SAS cable that is plugged into the disk-drive backplane to support drive bay 4
2 High-speed SAS-adapter cable that is plugged into the middle of the backplane to support
drive bays 0, 1, 2, and 3
7. Reroute the boot-disk SAS cable through the blue bulkhead clip and reconnect the cable to the disk
controller.
The high-speed SAS cable is shown in Figure 197 on page 181.
180
IBM SAN Volume Controller Hardware Maintenance Guide
2
1
