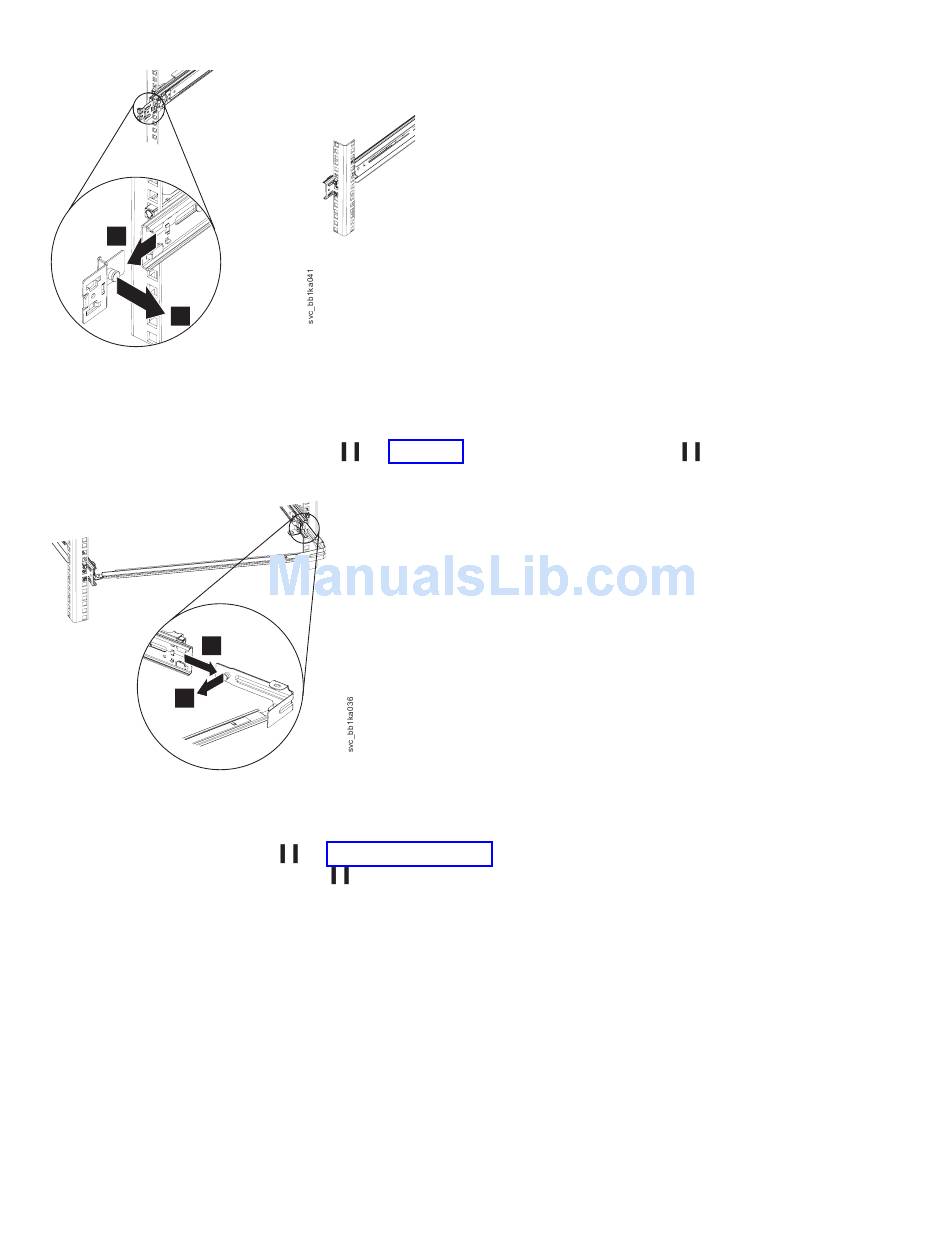

Figure 12. Removing the SAN Volume Controller 2145-CF8 cable-management arm mounting bracket
7. To free the swing end of the support arm from the backside of the slide rail, push the blue latch on
the cable-support-arm stop bracket on the right rail to open the cable-management arm, pivoting the
arm on the left rail, as shown by 1 in Figure 13, and then slide the bracket 2 from the slide rail.
2
1
Figure 13. Freeing the swing end of the SAN Volume Controller 2145-CF8 support arm
8. Remove the L-shaped cable-management stop bracket on the unattached end of the support arm. Turn
the bracket, as shown by 1 in Figure 14 on page 25 to free it from the support arm. Then lift the
cable-management stop bracket 2 from the support arm.
