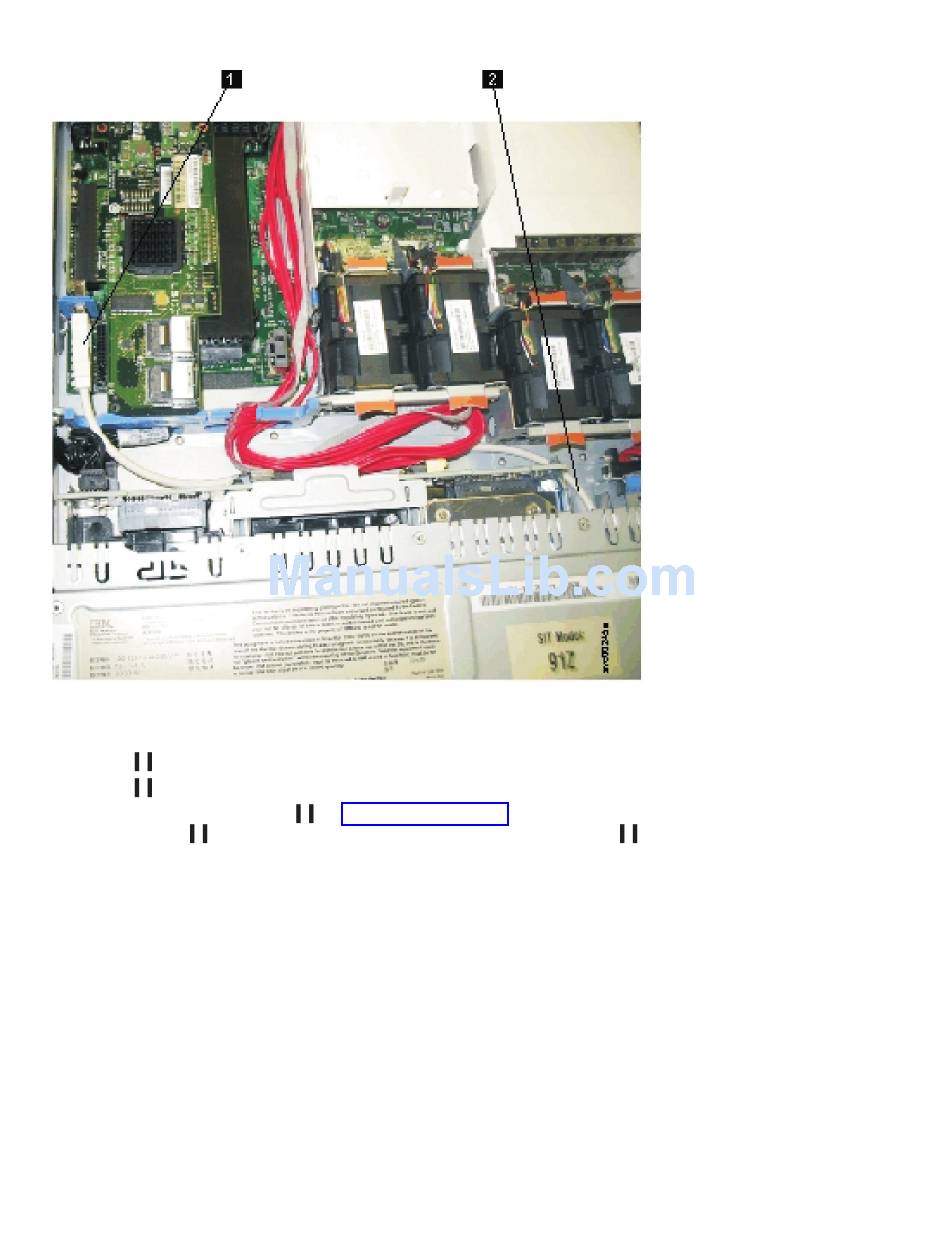

Figure 80. USB service-controller cable connected to the disk controller and USB riser card in the SAN Volume
Controller 2145-CF8
1 USB connector on the disk controller and USB riser card
2 USB cable
c. Grasp the blue lockbar ( 2 in Figure 81 on page 81) and slide it toward the USB riser-card
assembly ( 3 ) to the unlock position and remove the USB cable ( 1 ) from the connector.
80
IBM SAN Volume Controller Hardware Maintenance Guide
