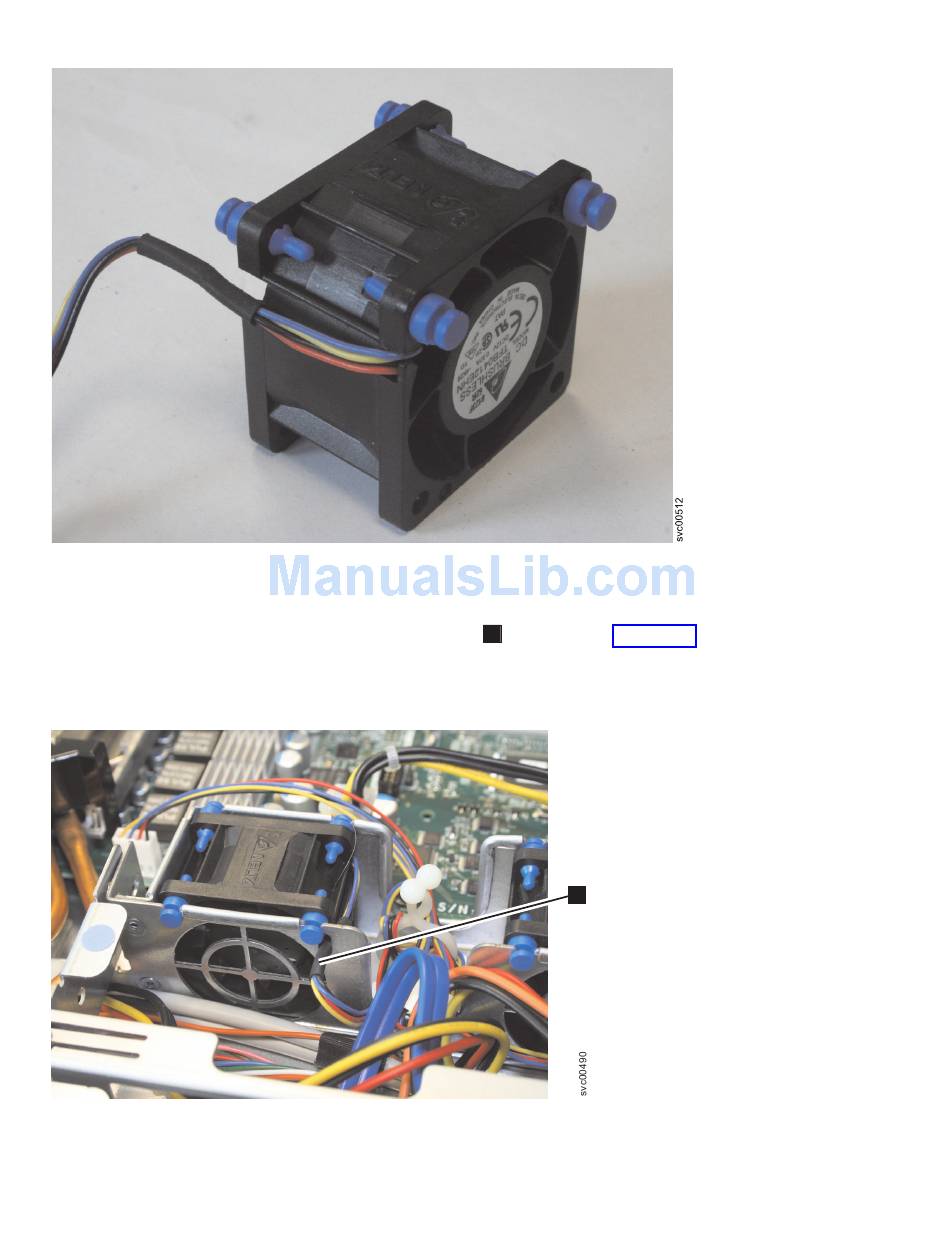

Figure 241. A close up of the SAN Volume Controller 2145-8A4 fan
2. Install the replacement fan in the bracket:
a. Make sure that the fan cable sits in the channel
b. Route the fan cable into its slot in the fan bracket top and then insert the fan into the bracket.
c. Make sure that each of the soft blue tabs on the fan is fully seated in its slot in the fan bracket.
Figure 242. Routing the SAN Volume Controller 2145-8A4 fan cable
d. Reconnect the fan cable to the system board, routing the cable in the same way as it was
originally.
3. Connect the cable of the replacement fan into the system-board connector.
218
IBM SAN Volume Controller Hardware Maintenance Guide
1
, as shown in Figure 242, on the side of the fan.
