The San Volume Controller 2145-8G4 With The Cable-Retention Bracket Attached - IBM SAN Volume Controller Hardware Maintenance Manual

To remove the cable-retention bracket, perform these steps:
1. Carefully remove the two retaining screws on the right side of the power supply rear plate shown in
Figure 26.

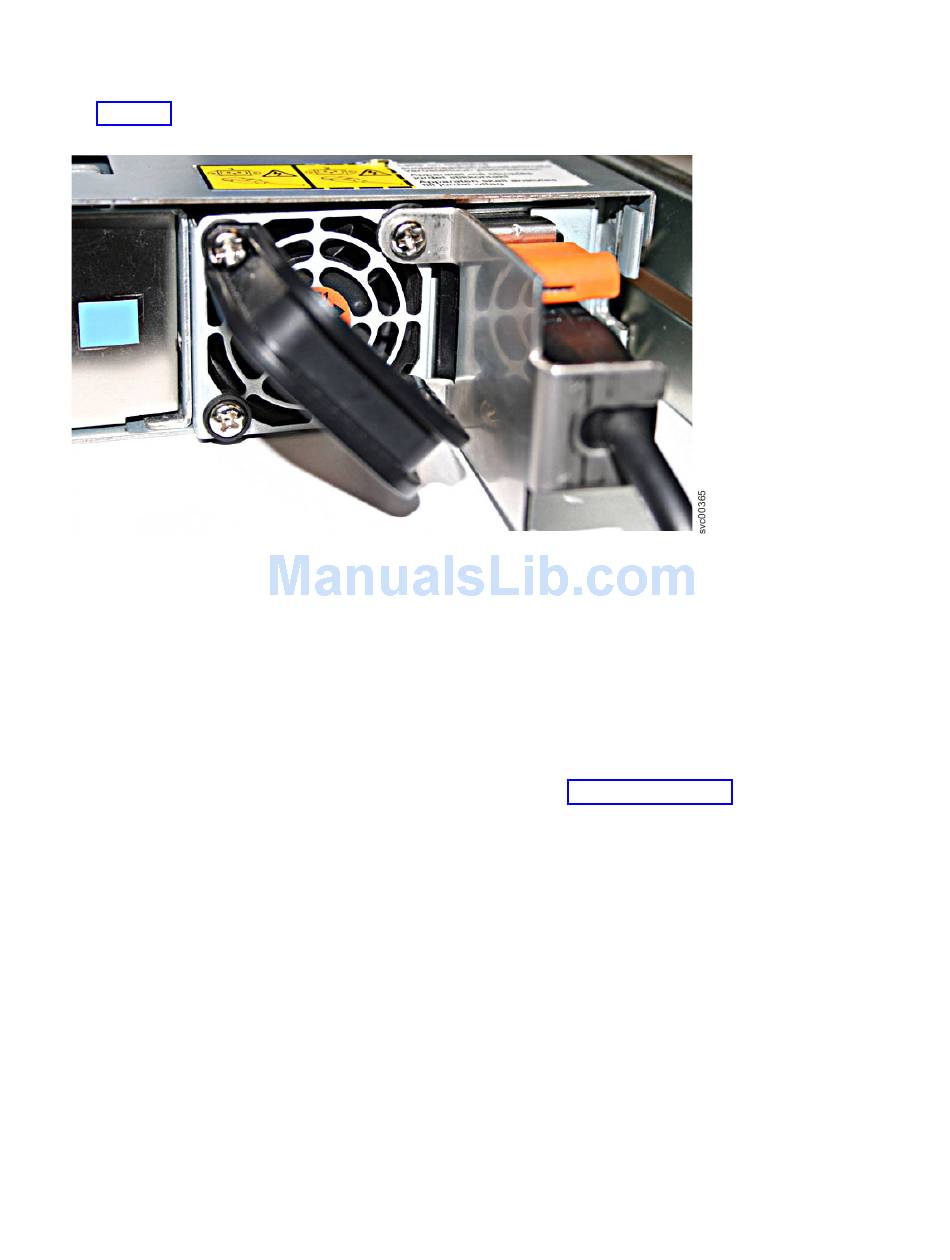

Figure 26. The SAN Volume Controller 2145-8G4 with the cable-retention bracket attached
2. Remove the bracket.
3. Replace the screws in the power supply rear plate.
Removing the SAN Volume Controller 2145-8G4 cable retention bracket - option B:
Remove the cable-retention bracket before you remove the SAN Volume Controller 2145-8G4 from the
rack.
To remove the cable-retention bracket, perform these steps:
1. Remove the securing bolt from the node side rail (shown in Figure 27 on page 34) next to the power
supply.
