If you are exchanging the battery for a new one, use only IBM Part Number 33F8354 or a similar type of
battery that the manufacturer recommends.
CAUTION:
The battery contains lithium. To avoid possible explosion, do not burn or charge the battery.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local
regulations. In the United States, IBM has a process for the collection of this battery. For information,
call 1-800-426-4333. Have the IBM part number for the battery unit available when you call. (C003)
Use the reference numbers in parentheses at the end of each notice, such as (C003) for example, to find
the matching translated notice in IBM Systems Safety Notices.
Perform the following steps to replace the SAN Volume Controller 2145-8G4 system-board CMOS battery:
1. Follow any special handling and installation instructions that come with the replacement battery.
2. Locate the battery on the system board. Figure 146 shows the location (
1

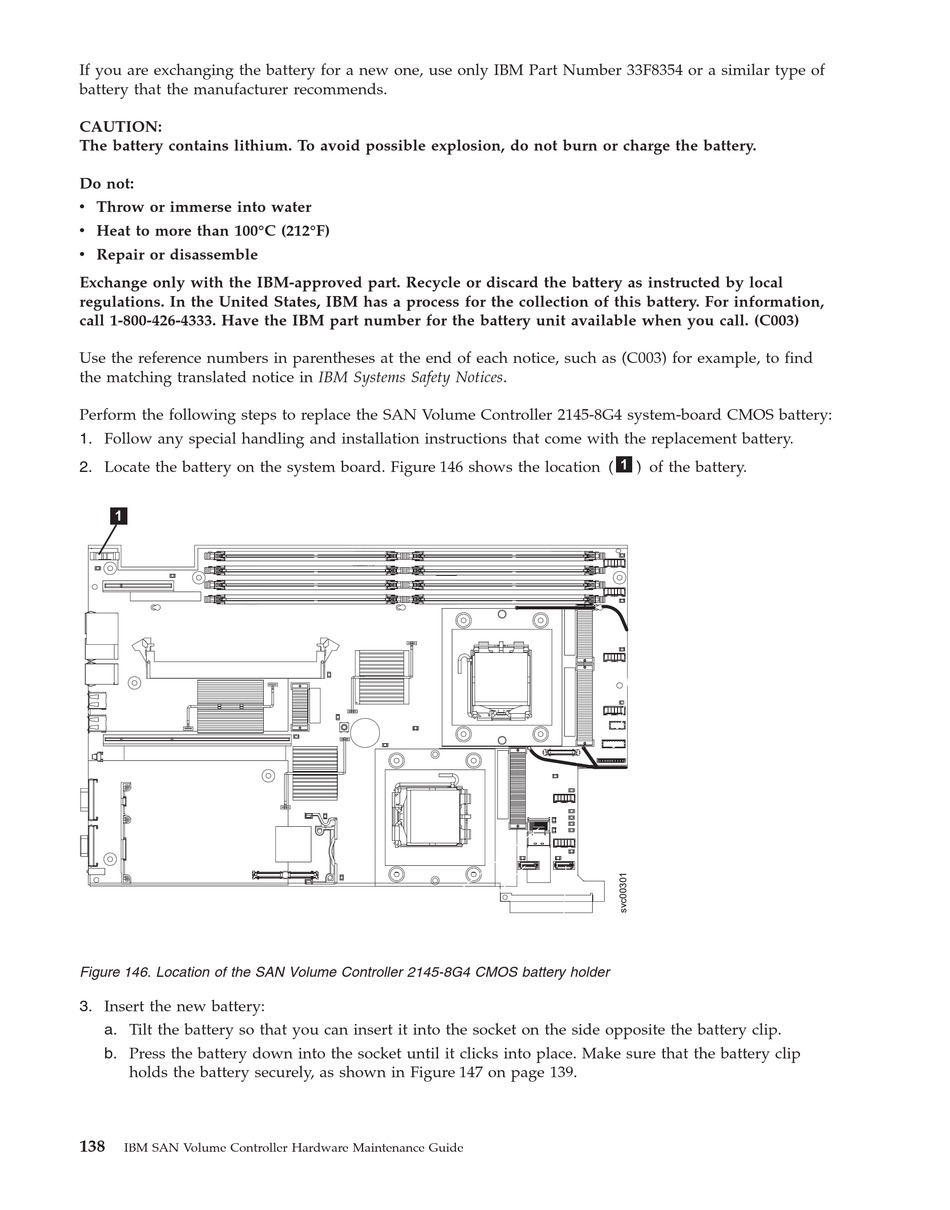

Figure 146. Location of the SAN Volume Controller 2145-8G4 CMOS battery holder
3. Insert the new battery:
a. Tilt the battery so that you can insert it into the socket on the side opposite the battery clip.
b. Press the battery down into the socket until it clicks into place. Make sure that the battery clip
holds the battery securely, as shown in Figure 147 on page 139.
138
IBM SAN Volume Controller Hardware Maintenance Guide
1
) of the battery.
