Removing The Cable-Retention Bracket; San Volume Controller 2145-Cf8 Cables In The Cable-Management Arm - IBM SAN Volume Controller Hardware Maintenance Manual

1

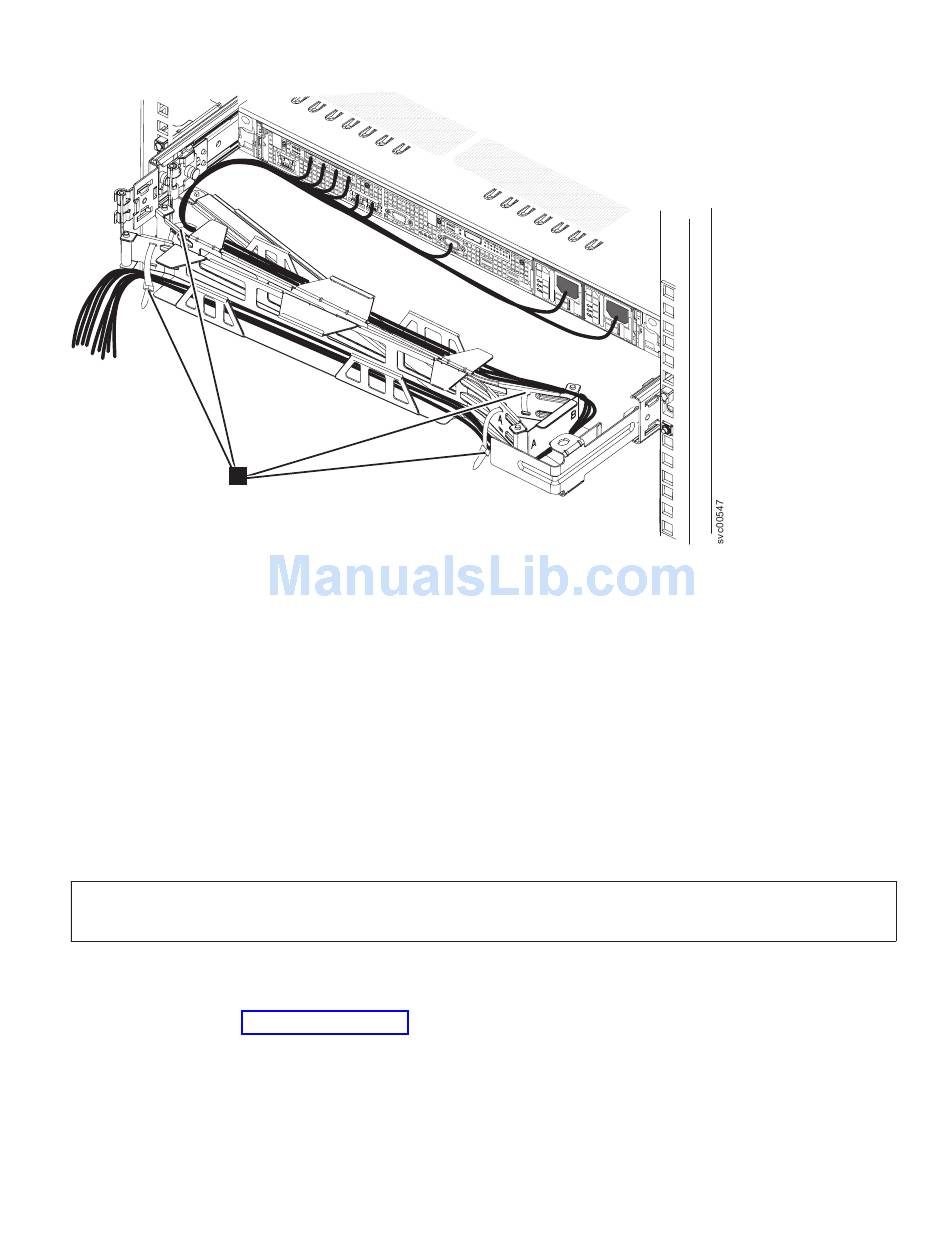

Figure 21. SAN Volume Controller 2145-CF8 cables in the cable-management arm
7. Slide the SAN Volume Controller 2145-CF8 into the rack until it snaps into place.
8. Connect all cables to the back of the SAN Volume Controller 2145-CF8 node.

Removing the cable-retention bracket

The SAN Volume Controller models 2145-CF8, 2145-8A4, 2145-8G4, 2145-8F4, and 2145-8F2 provide a
cable-retention bracket, which ensures that the node does not mistakenly become unplugged from the
uninterruptible power supply.
Removing the SAN Volume Controller 2145-CF8 cable-retention brackets
You can remove the two SAN Volume Controller 2145-CF8 cable-retention brackets when removing the
power cords from the node.
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords.
The SAN Volume Controller 2145-CF8 uses two toolless cable-retention brackets, one to retain each cable
from the uninterruptible power-supply to one of the two SAN Volume Controller 2145-CF8 power
supplies, as shown in Figure 22 on page 30.
